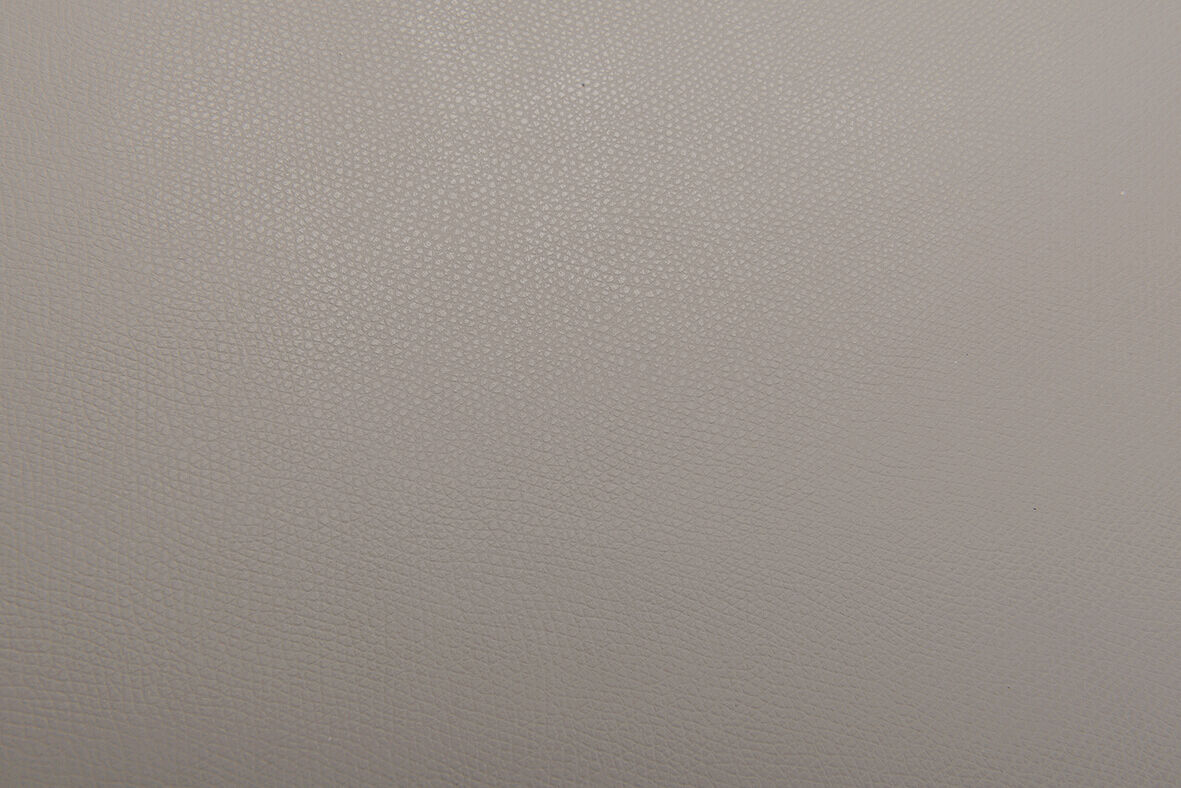

Table mats 700 x 1200 mm, grey
- suitable for loose laying as well as for bonding
- causes no corrosion on electronic contacts
- resistant to solder and heat up to 60°C
- dissipative, wear-resistant wear layer, high-impedance bottom layer
- easy to clean
- two-layer structure
- highly wear-resistant rubber material, permanently elastic
- abrasion-resistant
- dimensional stability
- environmentally friendly
- free from PVC, plasticizers, halogens and heavy metals
(if necessary, fixation with double-sided adhesive tape or Quick-lift fabric tape)
Material thickness: 2 mm
Colors: beige, grey, green, blue
In compliance with ESD standard DIN EN 61340-5-1

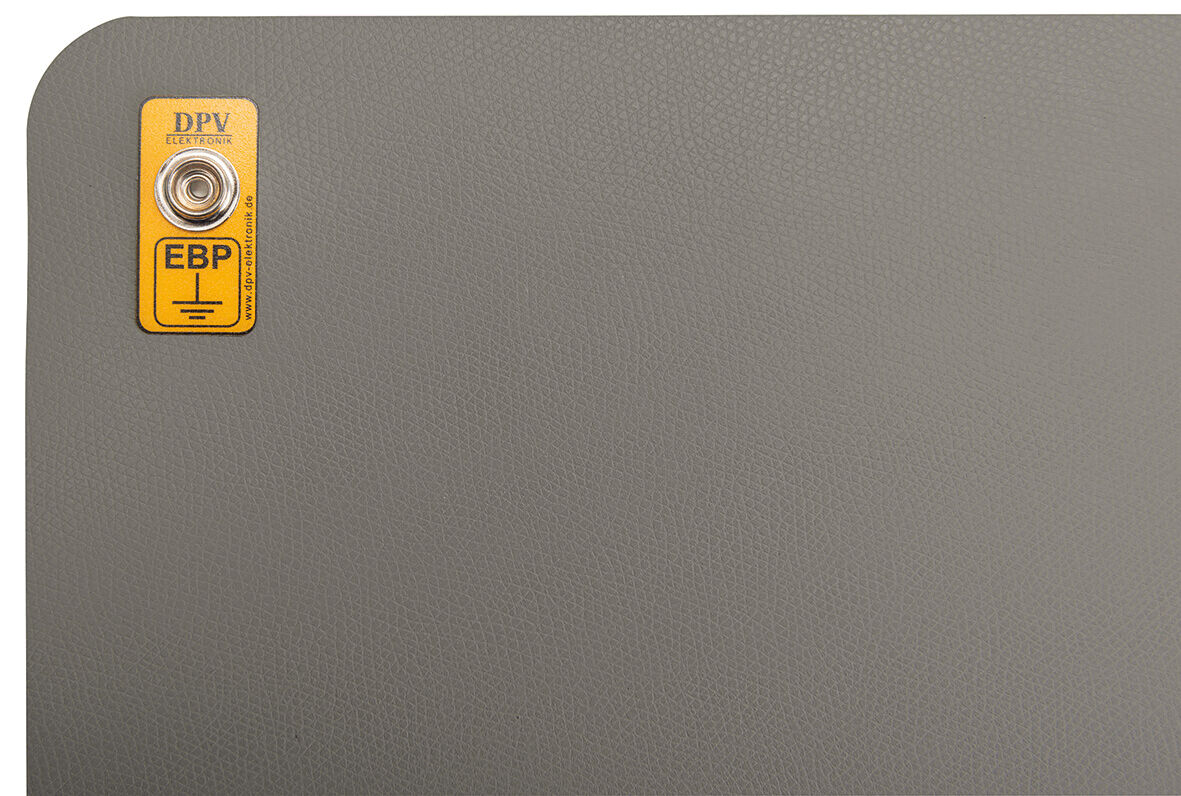

Complete with 2 snaps 10 mm on the short side and rounded corners, one with EBP sign
- other ports available -
Details
ESD table mat 700 x 1200 mm, greyof wear-resistant synthetic rubber
including rounded corner and
connections 2 x 10 mm snaps
(DIN EN 61340-5-1)
- Color DefaultColor
- grey
- W [mm] Width
- 700
- L [mm] Length
- 1200
- Thickness [mm] Thickness
- 2
- Point-to-point resistance Rp-p Point-to-point resistance
- 107 Ω
- Material BasicMaterial
- synthetic rubber
Show accessories
The table coverings made of synthetic rubber possess electrostatically conductive and dissipative characteristics. Especially in the electronics industry, they achieve a controlled potential equalization or a gentle discharge and protect thus persons, electronic components and equipment. With their high functionality, the table coverings have stood the test at numerous workplaces worldwide for many years.
