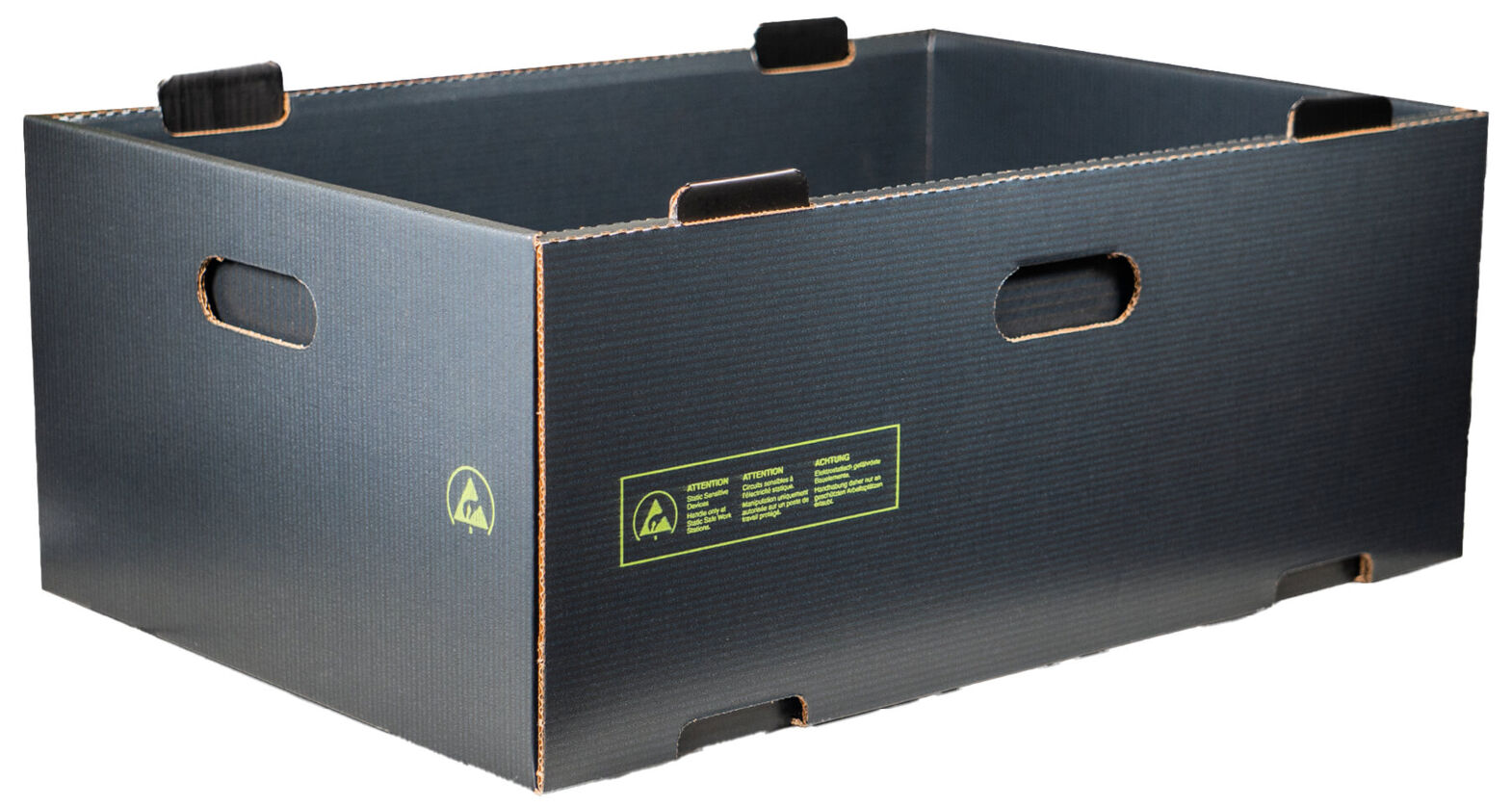

The image shows a rectangular, black cardboard box with two side handles. The top edge is open and it has a matte surface. On one side, yellow information is printed.
CORTRONIC Customer-Store-Container 551x362x220 mm black
(Product No.: COR-35.CSC)
The image shows a rectangular, black cardboard box with two side handles. The top edge is open and it has a matte surface. On one side, yellow information is printed.
Notice / Inquire

CORTRONIC Customer-Store-Container 551x362x220 mm black

dpvlink:
739
outside LxWxH:
578 x 389 x 227 mm
inside LxWxH:
551 x 362 x 220 mm
Properties:
CORproTRONIC® - the successor at a glance
Further product information
Imprinting / Printing for boxes
configure_now


Minimum order:
10 PCE
chevron-down
20.75 CHF
per PCE

excl. 8.1% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

CORTRONIC Customer-Store-Container 551x362x220 mm black

The CORTRONIC Customer-Store-Container, manufactured by Kolb, is a highly functional storage solution for technical applications that require prevention of electrostatic discharges. With dimensions of 551 x 362 x 220 mm inside and 578 x 389 x 227 mm outside, this container made from electrostatically conductive corrugated cardboard offers efficient use of space and is also stackable, optimizing storage logistics.
The surfaces of this container are coated both inside and outside with an electrostatically conductive coating that provides a resistance of 10^7 - 10^8 Ω. Additionally, the exterior is equipped with a water-repellent and scratch-resistant coating that protects the container even under demanding environmental conditions. The electrostatic shielding is confirmed with 10 nJ in the Energy Bag Test, ensuring the safety of sensitive electronic components.
The black color and the ESD warning print on the container emphasize its suitability for use in ESD-sensitive environments. The container can also be used without a lid and is fully recyclable, making it an environmentally friendly option.
Color
Color
black
Height
Height
227 mm
Internal height
220 mm
Internal length
551 mm
Internal width
Internal width
362 mm
Length
Length
578 mm
Width
Width
389 mm
Surface resistance Rs
Surface resistance Rs
107 - 108 Ω
Material
Material
corrugated board
recyclable
recyclable
yes
CORproTRONIC® - the successor at a glance
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a rectangular, flat object in black that has a matte surface. It appears sturdy and could be made of a material like cardboard or rubber.
Interlayers 357 x 246 mm
Interlayer 357 x 246 mm, cardboard dissipative
2 corners beveled
dpvlink
5961

1.75 CHF
Show product
The image shows a black, rectangular piece of material with slightly rounded corners. It has a smooth surface and is lying flat on a surface.
Interlayers 550 x 350 mm
Interlayer 550 x 350 mm, cardboard dissipative
2 corners beveled
dpvlink
5961

2.95 CHF
Show product
The image shows a black rectangle with several uniform horizontal slits running from top to bottom. It is simple and without further details.
CSC short partition for 17 - 35.CSC 360 x...
17 CSCK, short partition single height 60 mm
Short partition approx. 360 x 60 mm (15 slots)
(DIN EN 61340-5-1), spacing 20 mm
+++ Minimum order quantity 110 pieces +++
dpvlink
10890

0.85 CHF
Show product
The image shows a black, rectangular piece of material with several evenly distributed white notches or slots along the top edge.
CSC long partition for 17 - 35.CSC 549 x...
17-CSC-L50, long partiton single height 60 mm
long partitons approx. 549 x 60 mm (11 slots)
spacing 50 mm (DIN EN 61340-5-1)
+++ Minimum order quantity 150 pieces+++
dpvlink
10909

0.90 CHF
Show product
The box is rectangular, made of black cardboard with a smooth surface. It has a flat top and side handle openings. On the front, there are some symbols and labels in yellow.
Lid for art. COR-17/19/20/30/35/36/40.CSC...
Slip lid for container 17/19/20/30/35/40.CSC
cardboard Cortronic with water-repellent
and scratch-resistant coating
(DIN EN 61340-5-1)
dpvlink
13304

2.65 CHF
Show product
The image shows a black rectangle with several uniform horizontal slits running from top to bottom. It is simple and without further details.
CSC short partition for 17 - 35.CSC 360 x...
19 CSCK, short partition single height 100 mm
Short partition approx. 360 x 100 mm (15 slots)
(DIN EN 61340-5-1), spacing 20 mm
+++ Minimum order quantity 110 pieces+++
dpvlink
10890

1.15 CHF
Show product
The image shows a black, rectangular piece of material with several evenly distributed white notches or slots along the top edge.
CSC long partition for 19 - 35.CSC 549 x...
19-CSC-L50, long partition single height 100 mm
long partition approx. 549 x 100 mm (11 slots)
spacing 50 mm (DIN EN 61340-5-1)
+++ Minimum order quantity 150 pieces+++
dpvlink
10909

1.45 CHF
Show product
The image shows a black rectangle with several uniform horizontal slits running from top to bottom. It is simple and without further details.
CSC short partition for 17 - 35.CSC 360 x...
20-CSCK, short partition single height 139 mm
Short partition approx. 360 x 139 mm (15 slots)
(DIN EN 61340-5-1), spacing 20 mm
+++ Minimum order quantity 110 pieces+++
dpvlink
10890

1.55 CHF
Show product
The image shows a black, rectangular piece of material with several evenly distributed white notches or slots along the top edge.
CSC long partition for 20- 35.CSC 549 x 139...
20-CSCL-L50, long partition single height 139 mm
long partition approx. 549 x 139 mm (11 slots)
(DIN EN 61340-5-1), spacing 50 mm
+++ Minimum order quantity 150 pieces+++
dpvlink
10909

1.80 CHF
Show product
The image shows a black rectangle with several uniform horizontal slits running from top to bottom. It is simple and without further details.
CSC short partition for 17 - 35.CSC 360 x...
30-CSCK, short partition single height 172 mm
Short partition approx. 360 x 172 mm (15 slots)
(DIN EN 61340-5-1), spacing 20 mm
+++ Minimum order quantity 110 pieces+++
dpvlink
10890

1.70 CHF
Show product
The image shows a black, rectangular piece of material with several evenly distributed white notches or slots along the top edge.
CSC long partition for 30 - 35.CSC 549 x...
30-CSC-L50, long partition single height 172 mm
long partition approx.549 x 172 mm (11 slots)
spacing 50 mm (DIN EN 61340-5-1)
+++ Minimum order quantity 150 pieces +++
dpvlink
10909

2.30 CHF
Show product
The image shows a black rectangle with several uniform horizontal slits running from top to bottom. It is simple and without further details.
CSC short partition for 17 - 35.CSC 360 x...
35-CSCK, short partition single height 220 mm
Short partition approx. 360 x 220 mm (15 slots)
(DIN EN 61340-5-1), spacing 20 mm
+++ Minimum order quantity 110 pieces +++
dpvlink
10890

2.05 CHF
Show product
The image shows a black, rectangular piece of material with several evenly distributed white notches or slots along the top edge.
CSC long partition for 35 - 35.CSC 549 x...
35-CSCL, long partition single height 220
long partiton approx. 549 x 220 mm (11 slots)
(DIN EN 61340-5-1)
+++ Minimum order quantity 150 pieces +++
dpvlink
10909

2.65 CHF
Show product
The image shows a black, rectangular piece of material with several evenly distributed white notches or slots along the top edge.
CSC long parition for 17 - 35.CSC 549 x 60...
17-CSC-L20, longitudinal partition height 60 mm
Longitudinal partition approx. 549x60mm (24 slots)
spacing 20 mm, (DIN EN 61340-5-1)
+++Minimum order quantity 150 pieces+++
dpvlink
10909

1.55 CHF
Show product
The image shows a black, rectangular piece of material with several evenly distributed white notches or slots along the top edge.
CSC long parition for 19 - 35.CSC 549 x 100...
19-CSC-L20, longitudinal partition height 100 mm
Longitudinal partition approx. 549x100 mm
(24 slots), spacing 20 mm, (DIN EN 61340-5-1)
+++Minimum order quantity 150 pieces+++
dpvlink
10909

2.05 CHF
Show product
The image shows a black, rectangular piece of material with several evenly distributed white notches or slots along the top edge.
CSC long parition for 20 - 35.CSC 549 x 139...
20-CSC-L20, longitudinal partition height 139 mm
Longitudinal partition approx. 549x139 mm
(24 slots), spacing 20 mm, (DIN EN 61340-5-1)
+++Minimum order quantity 150 pieces+++
dpvlink
10909

2.30 CHF
Show product
The image shows a black, rectangular piece of material with several evenly distributed white notches or slots along the top edge.
CSC long parition for 30 - 35.CSC 549 x 172...
30-CSC-L20, longitudinal partition height 172 mm
Longitudinal partition approx. 549x172 mm
(24 slots), spacing 20 mm, (DIN EN 61340-5-1)
+++Minimum order quantity 150 pieces+++
dpvlink
10909

2.95 CHF
Show product
The image shows a black, rectangular piece of material with several evenly distributed white notches or slots along the top edge.
CSC long parition for 35 - 35.CSC 549 x 220...
35-CSC-L20, longitudinal partition height 220 mm
Longitudinal partition approx. 549x220mm
(24 slots), spacing 20 mm, (DIN EN 61340-5-1)
+++Minimum order quantity 150 pieces+++
dpvlink
10909

3.40 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 291
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

CORTRONIC Customer Store Container

Depending on the application, the CORTRONIC corrugated cardboard customer store container can also be used without a lid. The lid is available separately. The container is characterized by the following properties:

  • reusable
  • black, with ESD warning logo
  • Electrostatically dissipative coating and seal on the inside and outside
  • Water-repellent and scratch-resistant coating on the outside
  • Surface resistance inner/outer cover: RS = 107 - 108 Ω
  • with high shielding properties
  • electrostatic shielding <10 nJ (Energy Bag test)
  • Stackable; stacking lugs on the longitudianl side
  • recyclable
  • with ESD warning label
  • in compliance with the ESD standard DIN EN 61340-5-1


The CORTRONIC customer store container of this product family differs in its dimensions. No partitions are available for the 550x365mm containers.

Compared to other containers, these containers are stackable.


Article image
Article description
ESD
outisde LxWxH
inside LxWxH
Price
Compare
COR-03.CSC - CORTRONIC Customer-Store-Container 362x251x60 mm
COR-03.CSC
CORTRONIC Customer-Store-Container 362x251x60 mm
389 x 278 x 67 mm
362 x 251 x 60 mm
7.50 CHF
COR-05.CSC - CORTRONIC Customer-Store-Container 362x251x100 mm
COR-05.CSC
CORTRONIC Customer-Store-Container 362x251x100 mm
389 x 278 x 107 mm
362 x 251 x 100 mm
8.35 CHF
COR-10.CSC - CORTRONIC Customer-Store-Container 362x251x139 mm
COR-10.CSC
CORTRONIC Customer-Store-Container 362x251x139 mm
389 x 278 x 146 mm
362 x 251 x 139 mm
9.80 CHF
COR-15.CSC - CORTRONIC Customer-Store-Container 362x251x220 mm
COR-15.CSC
CORTRONIC Customer-Store-Container 362x251x220 mm
389 x 278 x 227 mm
362 x 251 x 220 mm
14.55 CHF
COR-17.CSC - CORTRONIC Customer-Store-Container 551x362x60 mm black
COR-17.CSC
CORTRONIC Customer-Store-Container 551x362x60 mm black
578 x 389 x 67 mm
551 x 362 x 60 mm
10.80 CHF
COR-19.CSC - CORTRONIC Customer-Store-Container 551x362x100 mm black
COR-19.CSC
CORTRONIC Customer-Store-Container 551x362x100 mm black
578 x 389 x 107 mm
551 x 362 x 100 mm
12.05 CHF
COR-20.CSC - CORTRONIC Customer-Store-Container 551x362x139 mm black
COR-20.CSC
CORTRONIC Customer-Store-Container 551x362x139 mm black
578 x 389 x 146 mm
551 x 362 x 139 mm
13.70 CHF
COR-30.CSC - CORTRONIC Customer-Store-Container 551x362x172 mm black
COR-30.CSC
CORTRONIC Customer-Store-Container 551x362x172 mm black
578 x 389 x 179 mm
551 x 362 x 172 mm
15.35 CHF
COR-35.CSC - CORTRONIC Customer-Store-Container 551x362x220 mm black
COR-35.CSC
CORTRONIC Customer-Store-Container 551x362x220 mm black
578 x 389 x 227 mm
551 x 362 x 220 mm
20.75 CHF
COR-36.CSC - CORTRONIC Customer-Store-Container 550x365x300 mm black
COR-36.CSC
CORTRONIC Customer-Store-Container 550x365x300 mm black
578 x 389 x 307 mm
550 x 365 x 300 mm
24.65 CHF
COR-40.CSC - CORTRONIC Customer-Store-Container 550x365x400 mm black
COR-40.CSC
CORTRONIC Customer-Store-Container 550x365x400 mm black
578 x 389 x 410 mm
550 x 365 x 400 mm
26.60 CHF
