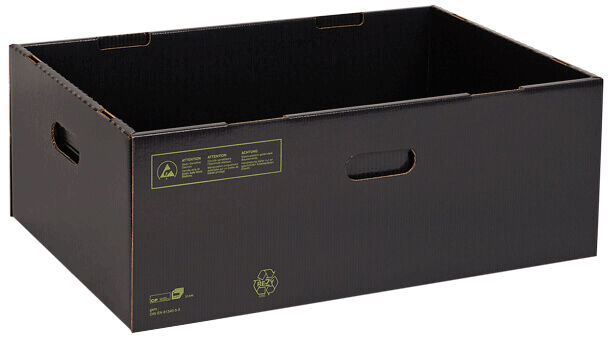

The image shows a black, rectangular cardboard box. It has two side handle holes and is open, without a lid. The surface is textured and there are some symbols on the front.
CORTRONIC Multibox 565 x 365 x 209 mm
(Product No.: COR-20.MB)
The image shows a black, rectangular cardboard box. It has two side handle holes and is open, without a lid. The surface is textured and there are some symbols on the front.
Notice / Inquire

CORTRONIC Multibox 565 x 365 x 209 mm

dpvlink:
7096
outside LxWxH:
591 x 391 x 214 mm
inside LxWxH:
565 x 365 x 209 mm
Properties:
CORproTRONIC® - the successor at a glance
Further product information
Imprinting / Printing for boxes
configure_now


Minimum order:
10 PCE
chevron-down
16.85 CHF
per PCE

excl. 8.1% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

CORTRONIC Multibox 565 x 365 x 209 mm

The CORTRONIC Multibox from Kolb is a highly functional packaging solution specifically designed for the protection of sensitive electronic components. With internal dimensions of 565 x 365 x 209 mm and external dimensions of 591 x 391 x 214 mm, this corrugated cardboard box provides ample space for various items. The Multibox is distinguished by its electrostatically conductive coating on both the inside and outside, certified according to DIN EN 61340-5-1 and IEC standards.
The outer surface is also water-resistant and scratch-resistant, which enhances durability under various storage conditions. The surface resistance ranges between 10^7 and 10^8 Ohm, and the box offers electrostatic shielding of 10 nJ (Energy Bag Test).
The black Multibox is fully recyclable and features an ESD warning print that indicates its protective functions. This combination of protection, sustainability, and technical specifications makes the CORTRONIC Multibox an ideal choice for technical procurement that values quality and environmental protection.
Color
Color
black
Height
Height
214 mm
Internal height
209 mm
Internal length
565 mm
Internal width
Internal width
365 mm
Length
Length
591 mm
Width
Width
391 mm
Surface resistance Rs
Surface resistance Rs
107 - 108 Ω
Material
Material
corrugated board
recyclable
recyclable
yes
CORproTRONIC® - the successor at a glance
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image displays a flat, rectangular, black cardboard box. The surface is smooth and undecorated. The edges are slightly rounded, and the box appears to be stable and sturdy.
Slip lid for art. COR-10/20.MB
Slip lid for Multibox 10/20/30-MB
cardboard Cortronic with water-repellent
and scratch-resistant coating
(DIN EN 61340-5-1 + IEC)
dpvlink
11088

3.50 CHF
Show product
It is a narrow, rectangular strip in black with several notches. This could be part of a control panel or a bracket.
Short partition approx. 352 x 100 mm (7 slots)...
100-MBK/10-MB-K, short partition single
height 100 mm
Short partition approx. 352 x 100 mm (7 slots)
spacing 6 x 50 mm / external support
(DIN EN 61340-5-1)
+++ Minimum order quantity 220 pieces+++
dpvlink
10910

0.30 CHF
Show product
In the image, there is a black, elongated object that is flat with many evenly distributed, narrow slits. It could be some sort of stencil or separator tool.
Long partition approx. 552 x 100 mm (22 slots)...
100-MBL/10-MB-L, long partition single
height 100 mm
long partition approx. 552 x 100 mm (22 slots)
spacing 23 x 20 mm (DIN EN 61340-5-1)
+++ Minimum order quantity 70 pieces+++
dpvlink
10917

0.55 CHF
Show product
It is a narrow, rectangular strip in black with several notches. This could be part of a control panel or a bracket.
Short partition approx. 352 x 200 mm (7 slots)...
200-MBK/20-MB-K 200-MBK, short partition single
height 200 mm
Short partition approx. 352 x 200 mm (7 slots)
spacing 6 x 50 mm / external support
(DIN EN 61340-5-1)
+++ Minimum order quantity 220 pieces+++
dpvlink
10910

0.70 CHF
Show product
In the image, there is a black, elongated object that is flat with many evenly distributed, narrow slits. It could be some sort of stencil or separator tool.
Long partition approx. 552 x 200 mm (22 slots)...
200-MBL/20-MB-L, long partition single
height 200 mm
Long partition approx. 552 x 200 mm (22 slots)
spacing 23 x 20 mm (DIN EN 61340-5-1)
+++ Minimum order quantity 70 pieces +++
dpvlink
10917

1.00 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 292
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

CORTRONIC Multibox

Depending on the application, the CORTRONIC Multibox made of corrugated cardboard can also be used without a lid. The lid is available separately. Unlike the CORTRONIC customer store containers, the Multiboxes are not stackable. The Multibox is characterized by the following properties:

  • black
  • Electrostatically dissipative coating and seal on the inside and outside
  • Water-repellent and scratch-resistant coating on the outside
  • Inner/outer cover: RS = 107 - 108 Ω
  • with high shielding properties
  • electrostatic shielding <10 nJ (Energy Bag test)
  • recyclable
  • With ESD warning label
  • in compliance with the ESD standard DIN EN 61340-5-1

Article image
Article description
ESD
outside LxWxH
inside LxWxH
Price
Compare

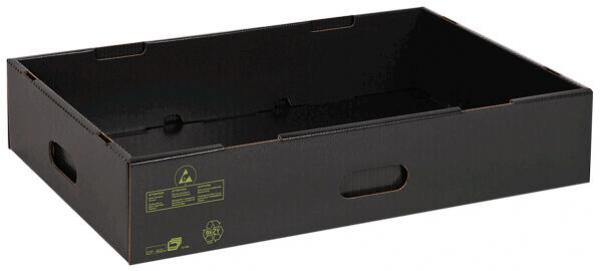

COR-10.MB - CORTRONIC Multibox 565 x 365 x 109 mm
COR-10.MB
CORTRONIC Multibox 565 x 365 x 109 mm
591 x 391 x 114 mm
565 x 365 x 109 mm
8.95 CHF
COR-20.MB - CORTRONIC Multibox 565 x 365 x 209 mm
COR-20.MB
CORTRONIC Multibox 565 x 365 x 209 mm
591 x 391 x 214 mm
565 x 365 x 209 mm
16.85 CHF
