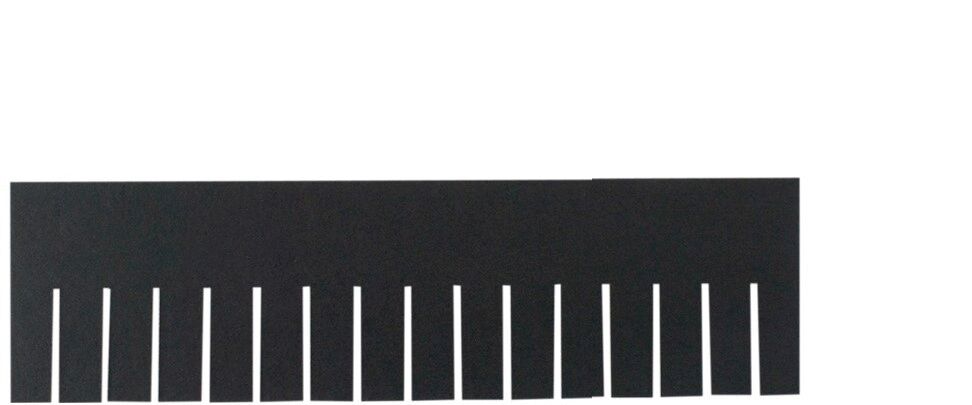

The image shows a black rectangle with several uniform horizontal slits running from top to bottom. It is simple and without further details.
CSC short partition for 03 - 15.CSC 249 x 100 mm (10 slots)
(Product No.: COR-05.CSCK)

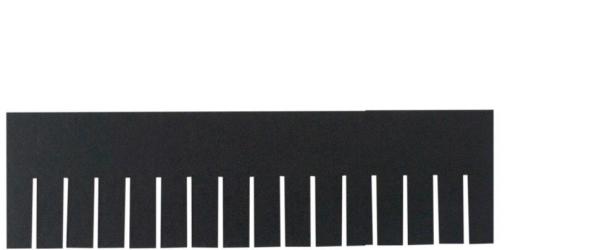

The image shows a black rectangle with several uniform horizontal slits running from top to bottom. It is simple and without further details.
Notice / Inquire

CSC short partition for 03 - 15.CSC 249 x 100 mm (10 slots)

dpvlink:
10890
Short partition length:
249 mm
Short partition height:
100 mm
Slots short partition:
10
Spacing:
20 mm
Properties:
CORproTRONIC® - the successor at a glance
Further product information
Imprinting / Printing for boxes
configure_now


Minimum order:
60 PCE
chevron-down
0.85 CHF
per PCE

excl. 8.1% tax

60 PCE
Compare Compare
Notice / Inquire
Product Info

CSC short partition for 03 - 15.CSC 249 x 100 mm (10 slots)

The CSC short bridge from Kolb, measuring 249 x 100 mm with 10 slots, is a high-quality solution for technical applications where conductivity and robustness are required. The short bridges are made of solid cardboard and have a surface resistance of Rs 10^5 - 10^6 Ω, making them ideal for use in ESD-sensitive environments.
The bridges are coated with a water-repellent and scratch-resistant coating, providing additional protection against external influences. With a grid size of 20 mm, they allow flexible use and are also fully recyclable, making them an environmentally friendly option.
These features make the short bridge an indispensable element for technical needs in various industries.
Short partition length
Short partition length
249 mm
Short partition height
Short partition height
100 mm
Slots short partition
Slots short partition
10
Spacing
Spacing
20 mm
Conductivity
Conductivity
dissipative
Surface resistance Rs
Surface resistance Rs
105 - 106 Ω
Material
Material
solid board
CORproTRONIC® - the successor at a glance
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 291
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Short partition for CORTRONIC Customer Store Container

The dissipative solid short partitions for CORTRONIC customer store containers offer an efficient solution for stabilizing and organizing products within packaging. They are characterized by the following properties:

  • dissipative
  • with water-repellent and scratch-resistant coating
  • surface resistance RS = 105 - 106 Ω
  • recyclable
  • in compliance with the ESD standard DIN EN 61340-5-3.

Article image
Article description
ESD
Short partition length
Short partition height
Slots short partition
Spacing
Price
Compare
COR-03.CSCK - CSC short partition for 03 - 15.CSC 249 x 60 mm (10 slots)
COR-03.CSCK
CSC short partition for 03 - 15.CSC 249 x 60 mm (10 slots)
249 mm
60 mm
10
20 mm
0.60 CHF
COR-05.CSCK - CSC short partition for 03 - 15.CSC 249 x 100 mm (10 slots)
COR-05.CSCK
CSC short partition for 03 - 15.CSC 249 x 100 mm (10 slots)
249 mm
100 mm
10
20 mm
0.85 CHF
COR-10.CSCK - CSC short partition for 03 - 15.CSC 249 x 139 mm (10 slots)
COR-10.CSCK
CSC short partition for 03 - 15.CSC 249 x 139 mm (10 slots)
249 mm
139 mm
10
20 mm
1.20 CHF
COR-15.CSCK - CSC short partition for 03 - 15.CSC 249 x 220 mm (10 slots)
COR-15.CSCK
CSC short partition for 03 - 15.CSC 249 x 220 mm (10 slots)
249 mm
220 mm
10
20 mm
1.60 CHF
COR-17.CSCK - CSC short partition for 17 - 35.CSC 360 x 60 mm (15 slots)
COR-17.CSCK
CSC short partition for 17 - 35.CSC 360 x 60 mm (15 slots)
360 mm
60 mm
15
20 mm
0.85 CHF
COR-19.CSCK - CSC short partition for 17 - 35.CSC 360 x 100 mm (15 slots)
COR-19.CSCK
CSC short partition for 17 - 35.CSC 360 x 100 mm (15 slots)
360 mm
100 mm
15
20 mm
1.15 CHF
COR-20.CSCK - CSC short partition for 17 - 35.CSC 360 x 139 mm (15 slots)
COR-20.CSCK
CSC short partition for 17 - 35.CSC 360 x 139 mm (15 slots)
360 mm
139 mm
15
20 mm
1.55 CHF
COR-30.CSCK - CSC short partition for 17 - 35.CSC 360 x 172 mm (15 slots)
COR-30.CSCK
CSC short partition for 17 - 35.CSC 360 x 172 mm (15 slots)
360 mm
172 mm
15
20 mm
1.70 CHF
COR-35.CSCK - CSC short partition for 17 - 35.CSC 360 x 220 mm (15 slots)
COR-35.CSCK
CSC short partition for 17 - 35.CSC 360 x 220 mm (15 slots)
360 mm
220 mm
15
20 mm
2.05 CHF
