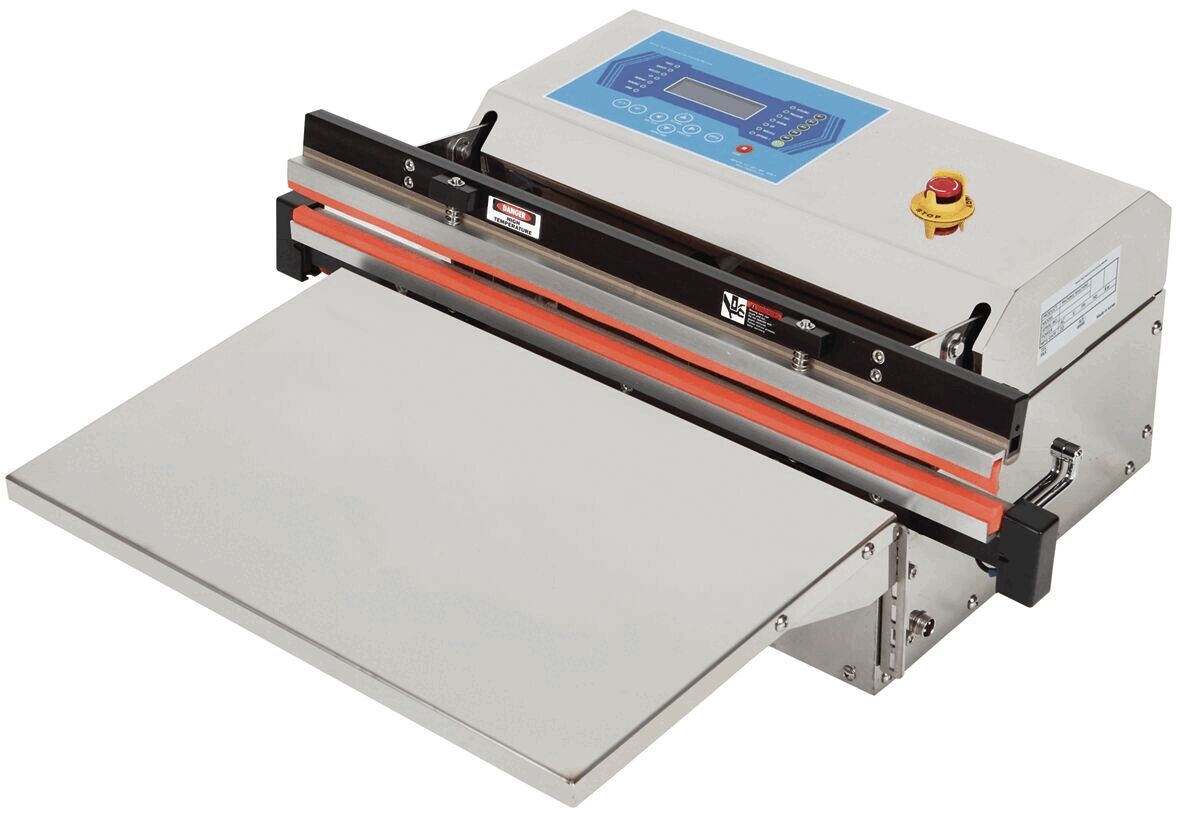

The image shows an electric vacuum packaging machine. It has a rectangular work surface, digital controls on the top, and a large, flat lid.

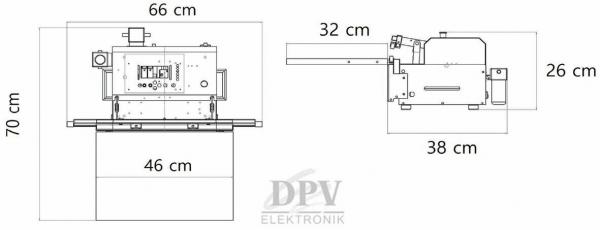

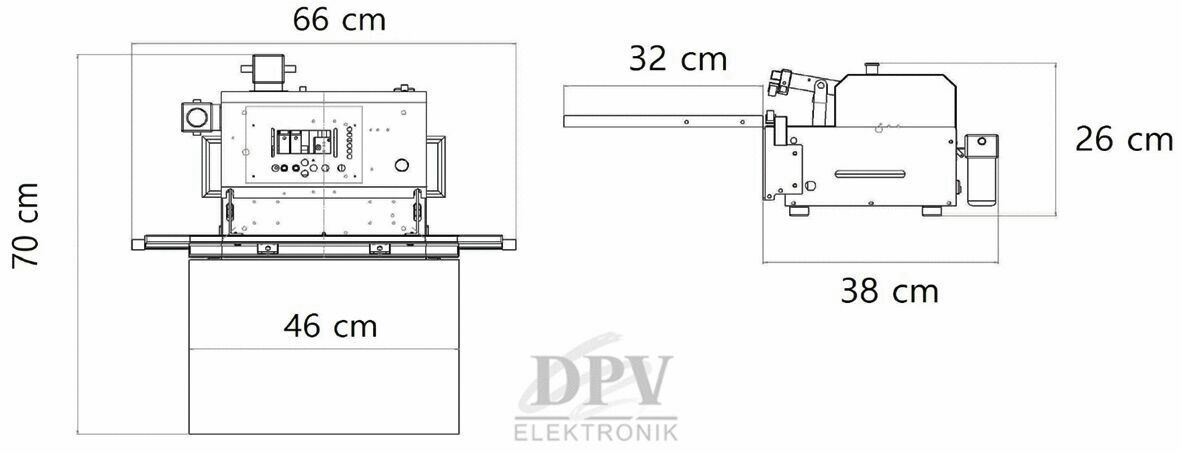

The image displays technical drawings of a device. The dimensions are provided: height 70 cm, width 66 cm, depth 46 cm. One side also shows a width of 32 cm and a height of 26 cm.
Preview: The image shows an electric vacuum packaging machine. It has a rectangular work surface, digital controls on the top, and a large, flat lid.
Preview: The image displays technical drawings of a device. The dimensions are provided: height 70 cm, width 66 cm, depth 46 cm. One side also shows a width of 32 cm and a height of 26 cm.
Vacuum packaging machine type VS600E-D
(Product No.: 3420.600.E)
The image shows an electric vacuum packaging machine. It has a rectangular work surface, digital controls on the top, and a large, flat lid.
The image displays technical drawings of a device. The dimensions are provided: height 70 cm, width 66 cm, depth 46 cm. One side also shows a width of 32 cm and a height of 26 cm.
Mobile Preview: The image shows an electric vacuum packaging machine. It has a rectangular work surface, digital controls on the top, and a large, flat lid.
Mobile Preview: The image displays technical drawings of a device. The dimensions are provided: height 70 cm, width 66 cm, depth 46 cm. One side also shows a width of 32 cm and a height of 26 cm.
Notice / Inquire

Vacuum packaging machine type VS600E-D

dpvlink:
21666
Further product information

4,940.00 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Vacuum packaging machine type VS600E-D

The vacuum packaging machine type VS600E-D is an advanced device specifically designed for efficient packaging with the option of gas flushing. This model is characterized by its compact design as a tabletop unit and is made entirely of high-quality stainless steel.
The machine offers double sealing on top and bottom as well as a timed gas flushing feature, which minimizes gas consumption and speeds up the process. A digital LCD vacuum display and the ability to store up to 5 programs increase user-friendliness and efficiency.
Technically, the VS600E-D is equipped with an ejector vacuum pump that allows an open vacuum flow of 124 l/min. The machine has a sealing bar length of 600 mm and can process bags up to a width of 590 mm. With dimensions of 700 x 460 x 260 mm and a weight of 32 kg, it is ideal for operations that value a robust, high-performance, and space-saving solution.
The compressed air supply requires 6.5 bar and the voltage is 230 V, which allows for use in most industrial environments.
Compressed air supply
Compressed air supply
6.5 bar
Sealing bar length
Sealing bar length
600 mm
Voltage
Voltage
230 V
Height
Height
260 mm
Length
Length
700 mm
Max. bag width
Max. bag width
590 mm
Width
Width
460 mm
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 285
Complete Catalog 2023 - 2024

Product Family

Vacuum packaging machines without chamber

The vacuum packaging machines in this series are available as compact table-top units with re-gassing device and high-quality stainless steel housing. The machines offer the following advantages:

  • fast process
  • less gas consumption
  • no limit to the bag length


During each process, only the relevant bag is gas flushed, which means that the process is completed more quickly with less gas consumption than with vacuum packaging machines with a chamber. This makes the machines easy to use and well suited for small batches.

Technical data:

 Device VS450M-D VS450E-D VS600E-D VS800E-D
 Weight 28 kg 30 kg 32 kg 39 kg
Dimensions 641 x 380 x
 269 mm		 354 x 506 x
 263 mm		 700 x 460 x
 260 mm		 735 x 846 x
 276 mm
 Sealing bar length 450 mm 450 mm 600 mm 800 mm
 Sealing bar width 10 mm 10 mm 10 mm 5 mm
 max. bag width 400 mm 400 mm 590 mm 790 mm
 Vacuum pump Vacuum pump Ejector
 vacuum pump		Ejector
 vacuum pump		 Ejector
 vacuum pump
 Open vacuum flow 25 l/min 124 l/min124 l/min 185 l/min
 Air pressure movement motorized approx. 6.5 bar approx. 6.5 bar approx. 6.5 bar
 Max. power consumption approx. 2.2 kW approx. 2.2 kWapprox. 2.2 kWapprox. 2.2 - 3.4 kW

Features:

  • double sealing (up/down)
  • vacuum pump
  • gas flushing time-controlled
  • sensor- or time-controlled vacuum generation
  • digital LCD vacuum display
  • 5 programs can be saved

Article image
Article description
Sealing bar length
Voltage
Height
Length
Max. bag width
Width
Compressed air supply
Price
Compare
3420.450.M - Vacuum packaging machine type VS450E-D
3420.450.M
Vacuum packaging machine type VS450E-D
450 mm
230 V
250 mm
660 mm
400 mm
380 mm

4,232.80 CHF
3420.450.E - Vacuum packaging machine type VS450E-D
3420.450.E
Vacuum packaging machine type VS450E-D
450 mm
230 V
250 mm
660 mm
400 mm
510 mm
6.5 bar
4,550.00 CHF
3420.600.E - Vacuum packaging machine type VS600E-D
3420.600.E
Vacuum packaging machine type VS600E-D
600 mm
230 V
260 mm
700 mm
590 mm
460 mm
6.5 bar
4,940.00 CHF
3420.800.E - Vacuum packaging machine type VS800E-D
3420.800.E
Vacuum packaging machine type VS800E-D
800 mm

276 mm
735 mm
790 mm
846 mm
6.5 bar
5,378.10 CHF
