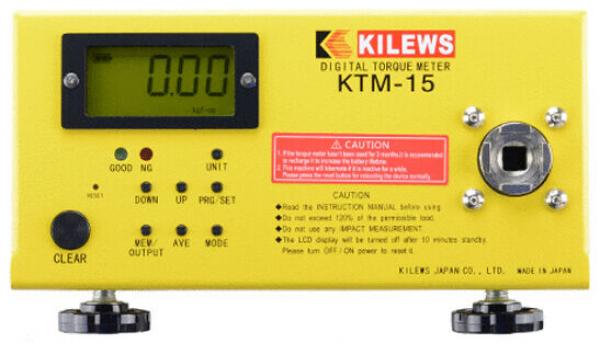

The image shows a digital torque meter. It has a yellow casing with a large digital display and various buttons. On the right side, there is a round socket.

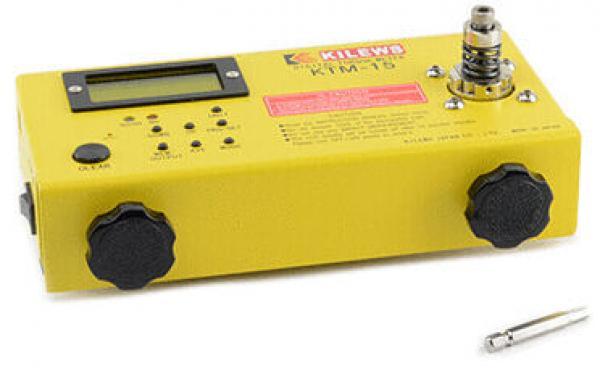

The image shows a yellow device that is rectangular. It has a digital display, several buttons, and two large, black knobs. Next to it lies a small silver object.

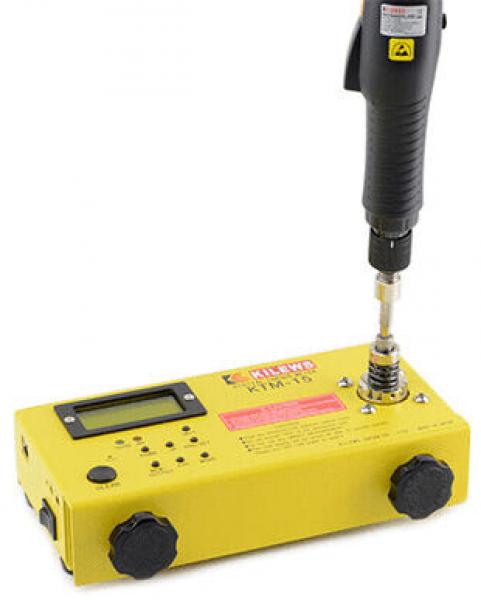

The image shows a yellow, rectangular device with several buttons and a display. At the top is a black handle with a rotating mechanism, indicating its use.
Preview: The image shows a digital torque meter. It has a yellow casing with a large digital display and various buttons. On the right side, there is a round socket.
Preview: The image shows a yellow device that is rectangular. It has a digital display, several buttons, and two large, black knobs. Next to it lies a small silver object.
Preview: The image shows a yellow, rectangular device with several buttons and a display. At the top is a black handle with a rotating mechanism, indicating its use.
KTM-15 torque tester up to 1.5 Nm
(Product No.: SKZ-KTM-15)
The image shows a digital torque meter. It has a yellow casing with a large digital display and various buttons. On the right side, there is a round socket.
The image shows a yellow device that is rectangular. It has a digital display, several buttons, and two large, black knobs. Next to it lies a small silver object.
The image shows a yellow, rectangular device with several buttons and a display. At the top is a black handle with a rotating mechanism, indicating its use.
Mobile Preview: The image shows a digital torque meter. It has a yellow casing with a large digital display and various buttons. On the right side, there is a round socket.
Mobile Preview: The image shows a yellow device that is rectangular. It has a digital display, several buttons, and two large, black knobs. Next to it lies a small silver object.
Mobile Preview: The image shows a yellow, rectangular device with several buttons and a display. At the top is a black handle with a rotating mechanism, indicating its use.
Notice / Inquire

KTM-15 torque tester up to 1.5 Nm

dpvlink:
20391
Further product information

chevron-down
2,562.10 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

KTM-15 torque tester up to 1.5 Nm

The KTM-15 torque tester from Kilews is specifically designed for setting or checking torques up to 1.5 Nm. It offers high accuracy of ±1% and is equipped with a USB port that allows easy data archiving on a PC or printer. Measurements can be performed in units of Lbf-in, kgf-cm, and Nm, with the user able to choose between peak value display and real-time display.
The device features an auto-reset function and can measure torques in both directions (left and right). Weighing 2 kg and with dimensions of 123x230x65 mm, the device is compact and easy to handle. It comes with a case and a calibration certificate, providing additional security in use.
The power supply is provided by a 1.2 V battery, which allows for up to 30 hours of operation and has a charging time of 8 hours. Also included in the package is the power supply/controller SKP-40BC-HL-800, which simplifies handling and maintenance.
Height
Height
65 mm
Length
Length
230 mm
Width
Width
125 mm
Accuracy
Accuracy
0,5 %
Torque range
Torque range
0,015 - 1.5 Nm
Weight
Weight
2.0 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 449
Complete Catalog 2023 - 2024

Product Family

Torque tester KTM

Torque measuring devices are essential tools in electronics production for the precise testing and calibration of screwdriving tools. They ensure that screw connections are tightened to a defined torque, preventing damage to sensitive components and ensuring that quality requirements are met. The use of these devices supports process safety and increases the reliability of assembly.

  • USB port for data archiving on PC and printer
  • Auto-Reset function
  • Measuring direction left and right-hand
  • Measuring units Lbf in - kgf cm - Nm
  • Measuring mode: peak value, real-time display
  • including case and calibration certificate



Model comparison

Model

KTM-15

KTM-150

KTM-250

Measuring range

0.015-1.5 Nm

0.015-15.0 Nm

0.30-25.0 Nm

Accuracy

+-0.5%

+-0.5%

+-0.5%

Voltage supply

4.8VDC(Ni-MH / 1.2VX4 cell / 1650mAh)

4.8VDC(Ni-MH / 1.2VX4 cell / 1650mAh)

4.8VDC(Ni-MH / 1.2VX4 cell / 1650mAh)

Charging time

approx. 3 hours

approx. 3 hours

approx. 3 hours

Battery operation

12 hours

12 hours

12 hours

Dimensions

230 x 125 x 65 mm

230 x 125 x 65 mm

160 x 210 x 45 mm

Weight

1.8 kg

1.8 kg

2.0 kg

Screw joint simulator

AJ-15 / AJ-3

AJ-150 / AJ-50 / AJ-15K

AJ-250




Article image
Article description
ESD
Height
Length
Width
Accuracy
Torque range
Weight
Price
Compare
SKZ-KTM-15 - KTM-15 torque tester up to 1.5 Nm
SKZ-KTM-15
KTM-15 torque tester up to 1.5 Nm
65 mm
230 mm
125 mm
0,5 %
0,015 - 1.5 Nm
2.0 kg
2,562.10 CHF
SKZ-KTM-150 - KTM-150 torque tester up to 15 Nm
SKZ-KTM-150
KTM-150 torque tester up to 15 Nm
65 mm
230 mm
125 mm
0,5 %
0.15 - 15.0 Nm
2.0 kg
2,642.05 CHF
SKZ-KTM-250 - KTM-250 torque tester up to 25 Nm
SKZ-KTM-250
KTM-250 torque tester up to 25 Nm
45 mm
210 mm
160 mm
1 %
0.3 - 25.0 Nm
2.0 kg
3,599.00 CHF
