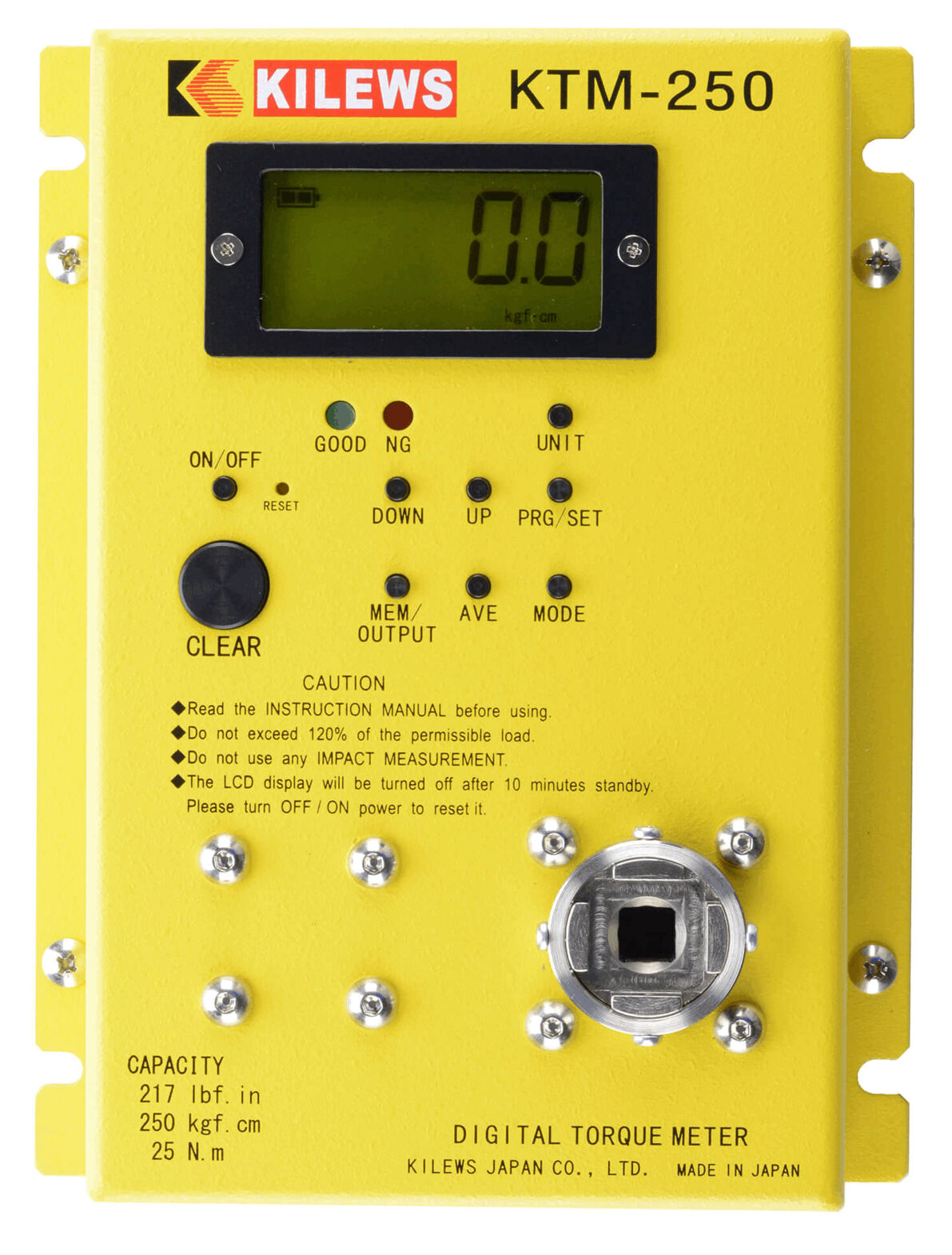

The image shows a yellow digital torque meter. It has a display with readings for values and units. On the front, there are buttons and a set of connectors.

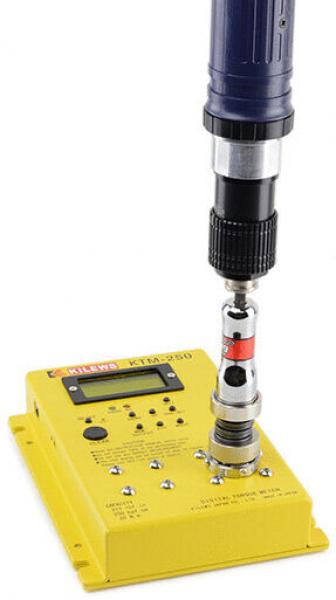

The image displays a yellow, rectangular device with buttons and a screen. Above it, there is a drill-like tool attached that has an attachment.

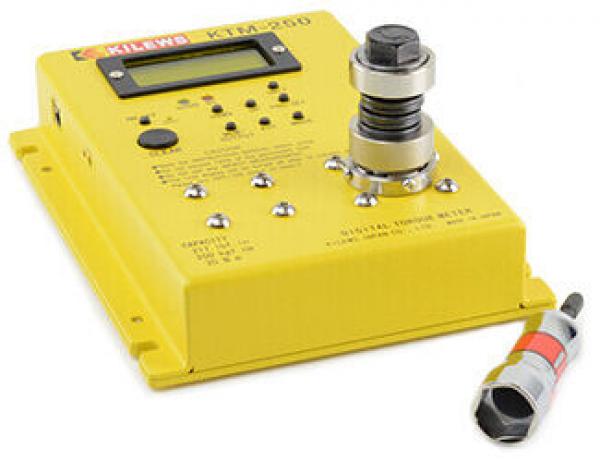

The image shows a yellow measuring device with a digital display and multiple buttons. There is a rotatable knob on top. A connector is visible on the bottom right.
Preview: The image shows a yellow digital torque meter. It has a display with readings for values and units. On the front, there are buttons and a set of connectors.
Preview: The image displays a yellow, rectangular device with buttons and a screen. Above it, there is a drill-like tool attached that has an attachment.
Preview: The image shows a yellow measuring device with a digital display and multiple buttons. There is a rotatable knob on top. A connector is visible on the bottom right.
KTM-250 torque tester up to 25 Nm
(Product No.: SKZ-KTM-250)
The image shows a yellow digital torque meter. It has a display with readings for values and units. On the front, there are buttons and a set of connectors.
The image displays a yellow, rectangular device with buttons and a screen. Above it, there is a drill-like tool attached that has an attachment.
The image shows a yellow measuring device with a digital display and multiple buttons. There is a rotatable knob on top. A connector is visible on the bottom right.
Mobile Preview: The image shows a yellow digital torque meter. It has a display with readings for values and units. On the front, there are buttons and a set of connectors.
Mobile Preview: The image displays a yellow, rectangular device with buttons and a screen. Above it, there is a drill-like tool attached that has an attachment.
Mobile Preview: The image shows a yellow measuring device with a digital display and multiple buttons. There is a rotatable knob on top. A connector is visible on the bottom right.
Notice / Inquire

KTM-250 torque tester up to 25 Nm

dpvlink:
20391
Further product information

chevron-down
3,569.70 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

KTM-250 torque tester up to 25 Nm

The KTM-250 torque tester from Kilews is specifically designed for setting or checking torques up to 25 Nm. It offers high accuracy of ±1% and supports various measurement units such as Lbf in, kgf cm, and Nm. Measurement data can be transferred directly to a PC or printer via the integrated USB port and archived.
The device features an auto-reset function as well as the ability to perform measurements in both directions (left and right). The user can choose between a peak value mode and a real-time display. The dimensions of the device are 160 mm in width, 200 mm in length, and 40 mm in height, with a weight of 2000 g.
The torque range extends from 0.3 to 25.0 Nm, and the device comes with a power supply/controller (model SKP-40BC-HL-800), a practical case, and a calibration certificate. The power supply is provided by a 1.2 V battery, which allows for an operating time of up to 30 hours after a charging time of 8 hours.
Height
Height
45 mm
Length
Length
210 mm
Width
Width
160 mm
Accuracy
Accuracy
1 %
Torque range
Torque range
0.3 - 25.0 Nm
Weight
Weight
2.0 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 449
Complete Catalog 2023 - 2024

Product Family

Torque tester KTM

Torque measuring devices are essential tools in electronics production for the precise testing and calibration of screwdriving tools. They ensure that screw connections are tightened to a defined torque, preventing damage to sensitive components and ensuring that quality requirements are met. The use of these devices supports process safety and increases the reliability of assembly.

  • USB port for data archiving on PC and printer
  • Auto-Reset function
  • Measuring direction left and right-hand
  • Measuring units Lbf in - kgf cm - Nm
  • Measuring mode: peak value, real-time display
  • including case and calibration certificate



Model comparison

Model

KTM-15

KTM-150

KTM-250

Measuring range

0.015-1.5 Nm

0.015-15.0 Nm

0.30-25.0 Nm

Accuracy

+-0.5%

+-0.5%

+-0.5%

Voltage supply

4.8VDC(Ni-MH / 1.2VX4 cell / 1650mAh)

4.8VDC(Ni-MH / 1.2VX4 cell / 1650mAh)

4.8VDC(Ni-MH / 1.2VX4 cell / 1650mAh)

Charging time

approx. 3 hours

approx. 3 hours

approx. 3 hours

Battery operation

12 hours

12 hours

12 hours

Dimensions

230 x 125 x 65 mm

230 x 125 x 65 mm

160 x 210 x 45 mm

Weight

1.8 kg

1.8 kg

2.0 kg

Screw joint simulator

AJ-15 / AJ-3

AJ-150 / AJ-50 / AJ-15K

AJ-250




Article image
Article description
ESD
Height
Length
Width
Accuracy
Torque range
Weight
Price
Compare
SKZ-KTM-15 - KTM-15 torque tester up to 1.5 Nm
SKZ-KTM-15
KTM-15 torque tester up to 1.5 Nm
65 mm
230 mm
125 mm
0,5 %
0,015 - 1.5 Nm
2.0 kg
2,541.25 CHF
SKZ-KTM-150 - KTM-150 torque tester up to 15 Nm
SKZ-KTM-150
KTM-150 torque tester up to 15 Nm
65 mm
230 mm
125 mm
0,5 %
0.15 - 15.0 Nm
2.0 kg
2,620.55 CHF
SKZ-KTM-250 - KTM-250 torque tester up to 25 Nm
SKZ-KTM-250
KTM-250 torque tester up to 25 Nm
45 mm
210 mm
160 mm
1 %
0.3 - 25.0 Nm
2.0 kg
3,569.70 CHF
