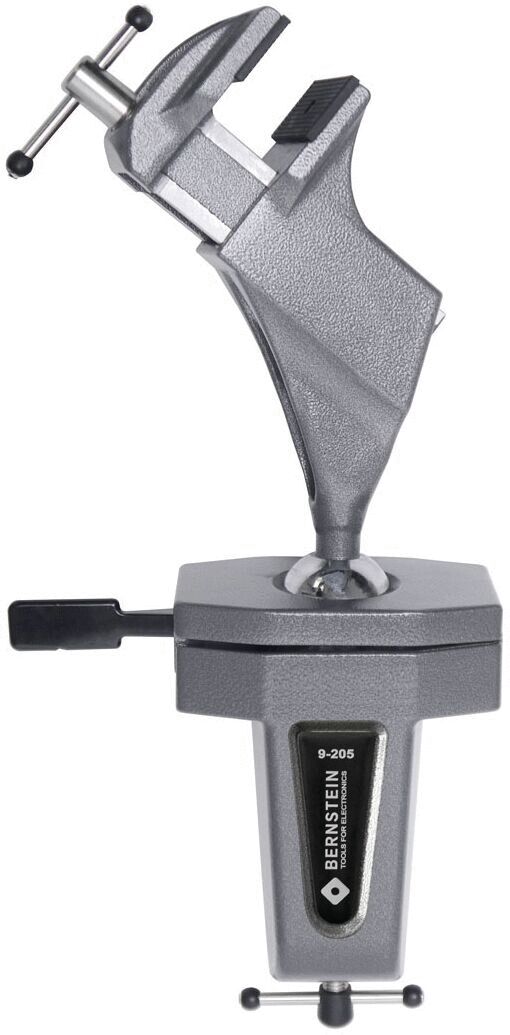

The image shows a sturdy metal table vise. It has a solid body with two clamping surfaces, which are pressed against each other with a screw.

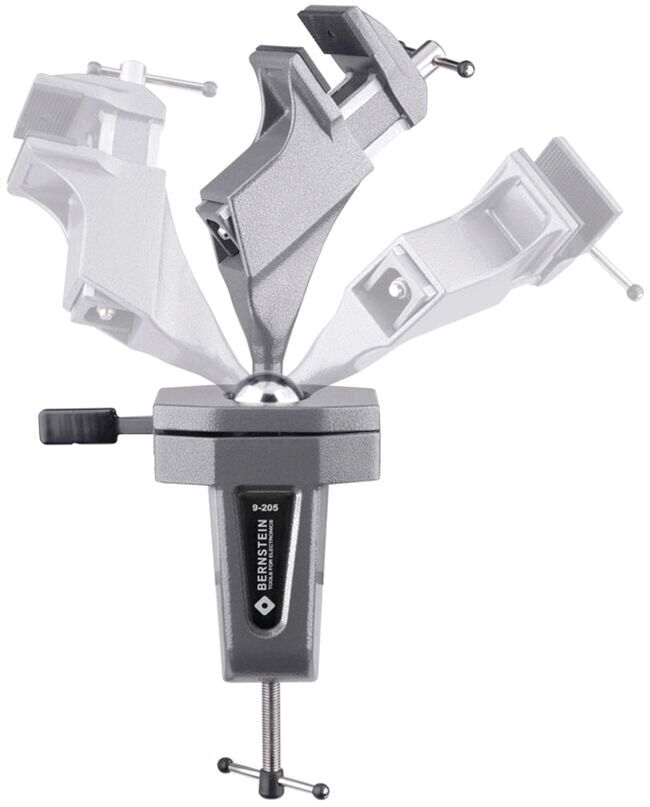

The image shows a multifunctional holding device with multiple movable arms that are extended in various directions. The base is stable and has a handle.

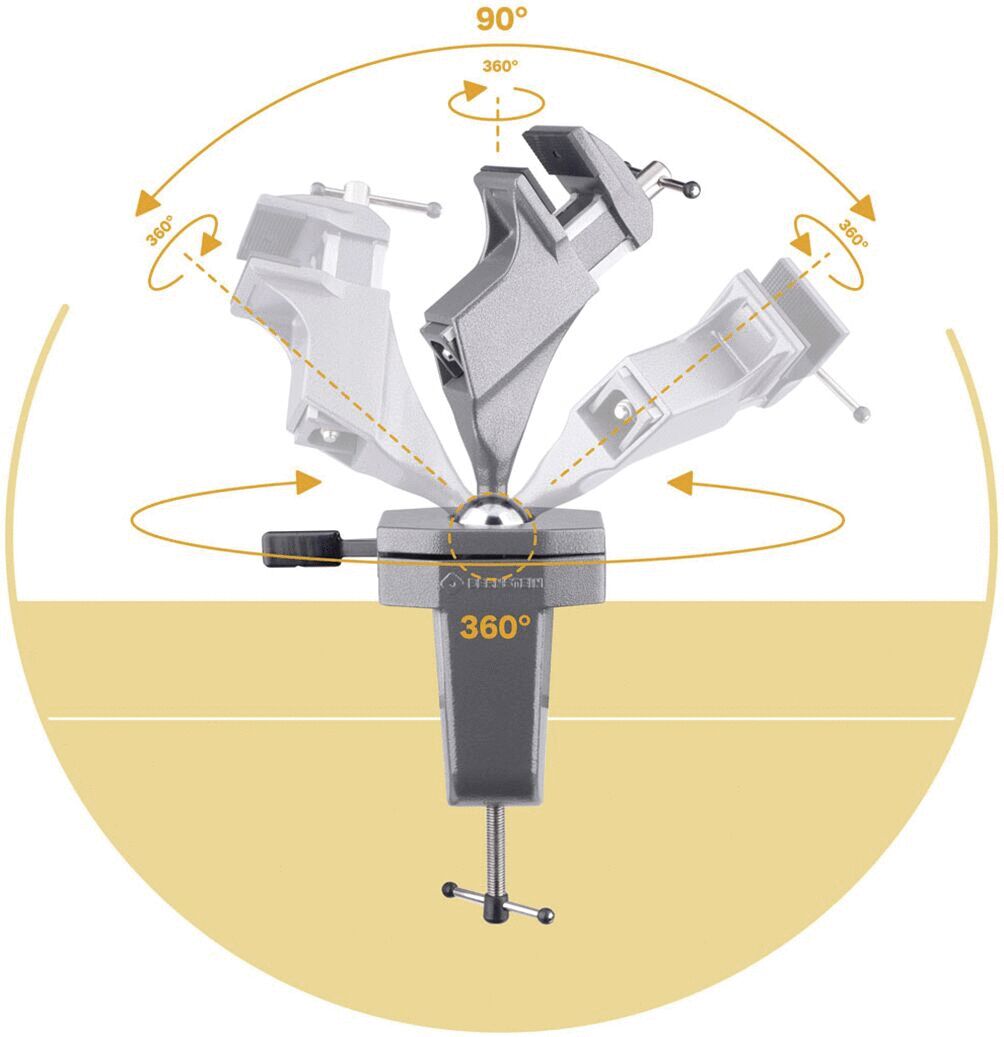

The image shows a flexible mounting system with multiple movable parts that can rotate around a central axis. It allows for 90° and 360° rotations and stability through a screw mechanism.

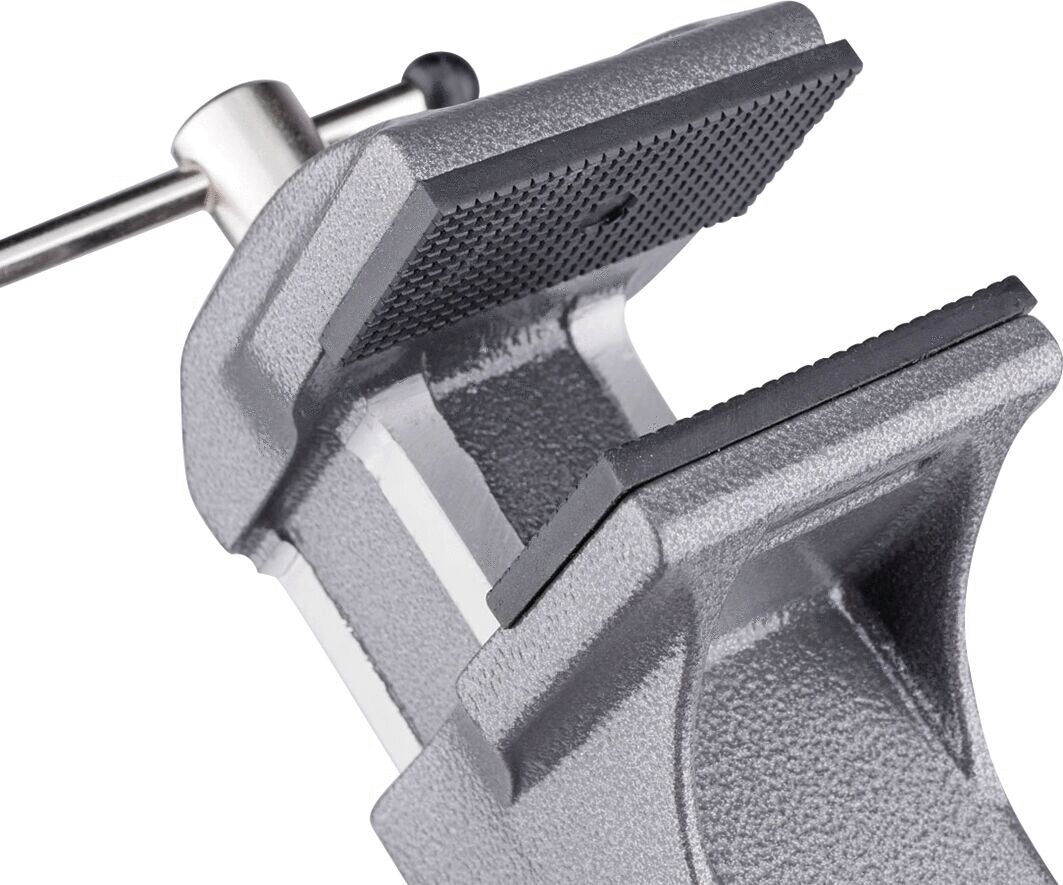

The image shows a gray metal vise. It has two wide, flat jaws that serve to hold objects. A screw on the side allows the opening and closing of the jaws.
The image shows a gray vise. It has two jaws that can be opened and closed, and a large screw in the center that is used for tightening.

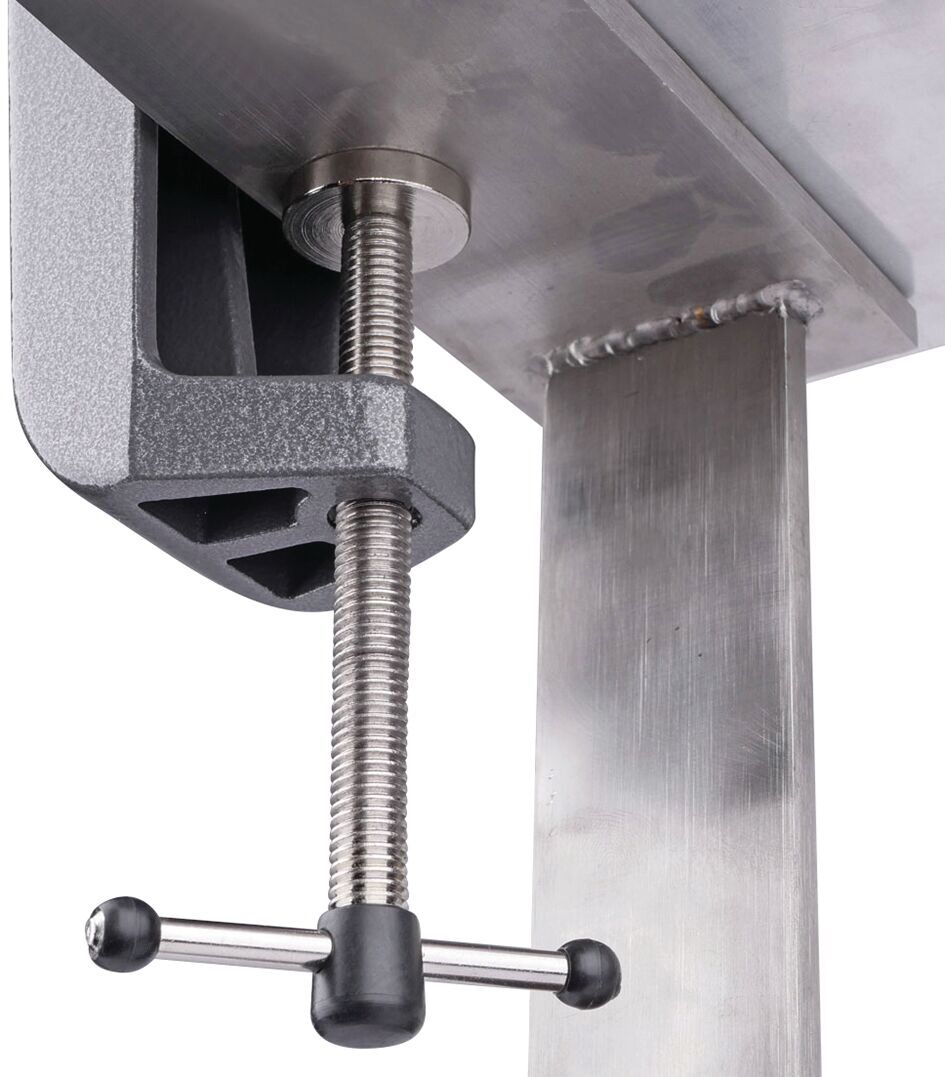

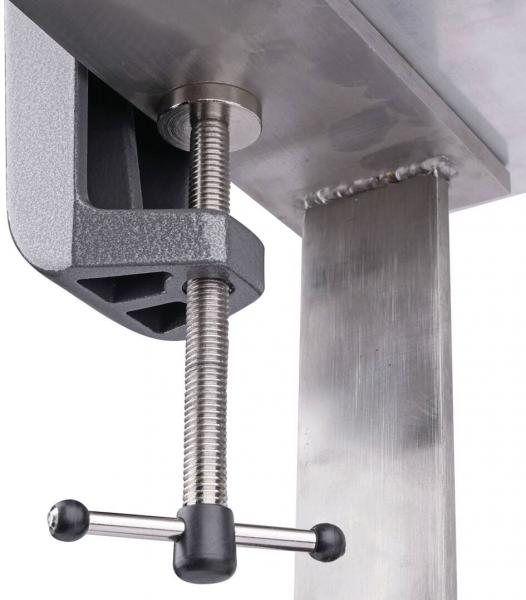

The image shows a sturdy metal clamp attached to the edge of a table. It has a long, rotating handle and a cylindrical threaded rod for fastening.
Preview: The image shows a sturdy metal table vise. It has a solid body with two clamping surfaces, which are pressed against each other with a screw.
Preview: The image shows a multifunctional holding device with multiple movable arms that are extended in various directions. The base is stable and has a handle.
Preview: The image shows a flexible mounting system with multiple movable parts that can rotate around a central axis. It allows for 90° and 360° rotations and stability through a screw mechanism.
Preview: The image shows a gray metal vise. It has two wide, flat jaws that serve to hold objects. A screw on the side allows the opening and closing of the jaws.
Preview: The image shows a gray vise. It has two jaws that can be opened and closed, and a large screw in the center that is used for tightening.
Preview: The image shows a sturdy metal clamp attached to the edge of a table. It has a long, rotating handle and a cylindrical threaded rod for fastening.
Spannfix BERNSTEIN small vise with table clamp mounting
(Product No.: 9-205)
The image shows a sturdy metal table vise. It has a solid body with two clamping surfaces, which are pressed against each other with a screw.
The image shows a multifunctional holding device with multiple movable arms that are extended in various directions. The base is stable and has a handle.
The image shows a flexible mounting system with multiple movable parts that can rotate around a central axis. It allows for 90° and 360° rotations and stability through a screw mechanism.
The image shows a gray metal vise. It has two wide, flat jaws that serve to hold objects. A screw on the side allows the opening and closing of the jaws.
The image shows a gray vise. It has two jaws that can be opened and closed, and a large screw in the center that is used for tightening.
The image shows a sturdy metal clamp attached to the edge of a table. It has a long, rotating handle and a cylindrical threaded rod for fastening.
Mobile Preview: The image shows a sturdy metal table vise. It has a solid body with two clamping surfaces, which are pressed against each other with a screw.
Mobile Preview: The image shows a multifunctional holding device with multiple movable arms that are extended in various directions. The base is stable and has a handle.
Mobile Preview: The image shows a flexible mounting system with multiple movable parts that can rotate around a central axis. It allows for 90° and 360° rotations and stability through a screw mechanism.
Mobile Preview: The image shows a gray metal vise. It has two wide, flat jaws that serve to hold objects. A screw on the side allows the opening and closing of the jaws.
Mobile Preview: The image shows a gray vise. It has two jaws that can be opened and closed, and a large screw in the center that is used for tightening.
Mobile Preview: The image shows a sturdy metal clamp attached to the edge of a table. It has a long, rotating handle and a cylindrical threaded rod for fastening.
Notice / Inquire

Spannfix BERNSTEIN small vise with table clamp mounting

dpvlink:
6943
Further product information

215.80 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Spannfix BERNSTEIN small vise with table clamp mounting

The Spannfix BERNSTEIN small vise with table clamp attachment is characterized by its versatile adaptability. It can be quickly and easily attached to workbenches with a maximum tabletop thickness of 80 mm and is continuously adjustable. This model features a non-conductive, gray finish and is particularly suitable for precise work.
The technical specifications include a jaw width of 50 mm and plastic jaws that are replaceable, allowing for flexible use. The vise offers a clamping pressure of 150 kiloponds, a clamping depth of 38 mm, and a clamping range of 70 mm. Weighing 1.45 kg, the device is robust and stable. The manufacturer Bernstein guarantees high quality and reliability with this product. Ideal for precise and efficient work in any workshop.
Color
Color
grey
Jaw width
Jaw width
50 mm
Jaws
Jaws
plastic, exchangeable
ESD
ESD
no
Clamping depth
Clamping depth
38 mm
Clamping pressure
Clamping pressure
150 kilopond
Opening of jaws
Opening of jaws
70 mm
Weight
Weight
1450 g
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 528
Complete Catalog 2023 - 2024

Product Family

Spannfix BERNSTEIN small vise with table clamp mounting

The Spannfix BERNSTEIN small vice offers stable and flexible fastening for precise work. Thanks to its simple assembly and stepless adjustability, it adapts perfectly to various workbenches with a tabletop thickness of up to 80 mm.

Compatibility: for workbenches with a maximum table top thickness of 80 mm

Installation: quick and easy to fit

Functionality: steplessly adjustable


Article image
Article description
ESD
Color
Jaw width
Surface resistance Rs
Jaws
ESD
Clamping depth
Clamping pressure
Opening of jaws
Weight
Price
Compare
9-205.ESD - Spannfix BERNSTEIN ESD small vise with table clamp mounting
9-205.ESD
Spannfix BERNSTEIN ESD small vise with table clamp mounting
black
50 mm
107 - 108 Ω
plastic, exchangeable
yes
38 mm
150 kilopond
70 mm
1450 g
236.20 CHF
9-205 - Spannfix BERNSTEIN small vise with table clamp mounting
9-205
Spannfix BERNSTEIN small vise with table clamp mounting
grey
50 mm

plastic, exchangeable
no
38 mm
150 kilopond
70 mm
1450 g
215.80 CHF
