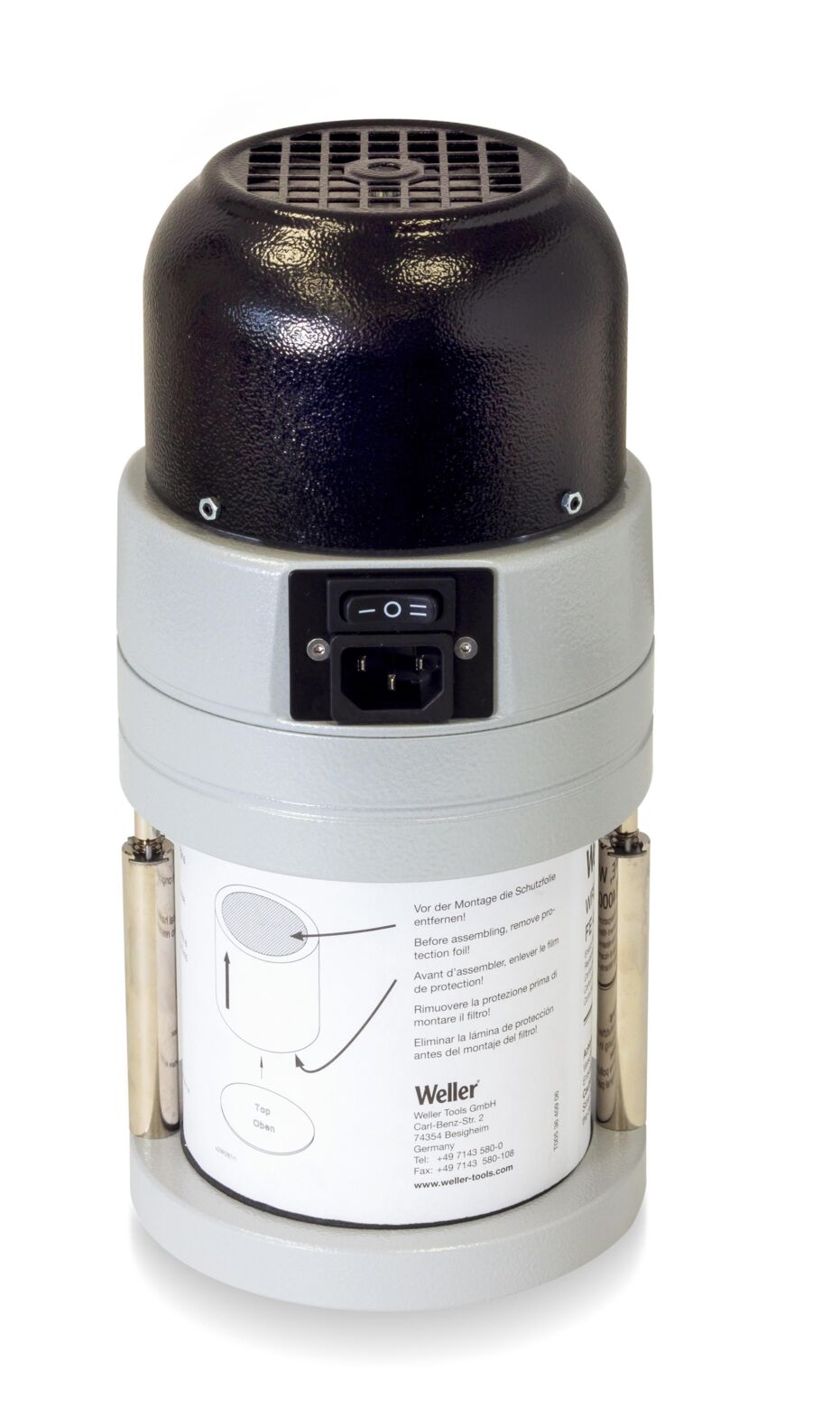

The image displays a device with a black, round top part and a grey, cylindrical bottom part. On the front, there are control buttons and a description that wraps around the device.
Preview: The image displays a device with a black, round top part and a grey, cylindrical bottom part. On the front, there are control buttons and a description that wraps around the device.
Preview: Image
Preview: Image
WFE P - solder fume extraction
(Product No.: 536.386.99)
The image displays a device with a black, round top part and a grey, cylindrical bottom part. On the front, there are control buttons and a description that wraps around the device.
Mobile Preview: The image displays a device with a black, round top part and a grey, cylindrical bottom part. On the front, there are control buttons and a description that wraps around the device.
Mobile Preview: Image
Mobile Preview: Image
Notice / Inquire

WFE P - solder fume extraction

dpvlink:
3579
Properties:
Further product information

1,250.80 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WFE P - solder fume extraction

The WFE P solder fume extraction system from Weller offers an efficient solution for removing solder fumes at the workplace. This portable device is equipped with an electric vacuum pump that creates the necessary negative pressure to effectively extract solder fumes. It features two power levels that allow for optimal extraction and is designed for connection to up to two soldering irons.
The integrated, maintenance-free capacitor motor with thermal fuse protects the device from overload and ensures a long lifespan. The WFE P is not designed for 24-hour continuous operation, but it offers excellent performance for daily use.
Technical specifications include a height of 295 mm, a diameter of 140 mm, and a weight of 4.0 kg. The maximum flow rate is 50 liters per minute with a maximum vacuum of 30,000 Pa. The noise level during operation is a low 45 dB, and the device operates with a power of 70 W at a voltage of 230 V. This combination of performance and user-friendliness makes the WFE P an ideal choice for technical work environments that value cleanliness and safety.
Noise level
Noise level
45 dB
Power
Power
70 W
Voltage
Voltage
230 V
Height
Height
295 mm
Ø
Ø
140 mm
Air flow/hour
Air flow/hour
50 m³
Max. vacuum
Max. vacuum
30,000 Pa
Weight
Weight
4.0 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Spares

In the picture, there is a round can with a black lid, surrounded by three pink filter discs. The discs are the same size and have a smaller cutout for attachment.
Compact filter for adhesive fumes for WFE,...
Compact filter for adhesive fumes, comprising:
HEPA filter H13 and wide band gas filter
(100% activated carbon)
dpvlink
3583

73.70 CHF
Show product
The image shows a cylindrical can with a black lid. The surface is printed with multilingual text and warning notices, including an upward arrow marking.
Compact filter for WFE, WFE P and FT 12
Compact filter, consisting of:
HEPA E12 and wide band gas filter
(50% activated carbon, 50% Puratex)

++ Replacement filter for WFE + WFE P+FT11 + FT12 + FE4000++
dpvlink
3583

87.40 CHF
Show product
The image shows a round, flat shape in soft pink tones, made of a light, felt-like material. On one side, there is a small, narrow handle.
Fine dust filter F7 for WFE, WFE P and FT...
Fine dust filter F7, Pu = 3 pieces
(Pu = 3 Pieces)
dpvlink
3583

10.95 CHF
Show product
It is a round, flat container with a brown cardboard edge. The top surface is white and displays a pattern of small, colored dots in a grid-like design.
Compressed air cleaning filter for WFE and...
Compressed air cleaning / exhaust air filter
activated carbon WFE (replacement)
dpvlink
3583

31.55 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 628
Complete Catalog 2023 - 2024

Product Family

WFE P

Article image
Article description
ESD
Noise level
Power
Voltage
Height
Ø
Air flow/hour
Max. vacuum
Weight
Price
Compare
536.386.99 - WFE P - solder fume extraction
536.386.99
WFE P - solder fume extraction
45 dB
70 W
230 V
295 mm
140 mm
50 m³
30,000 Pa
4.0 kg
1,250.80 CHF
