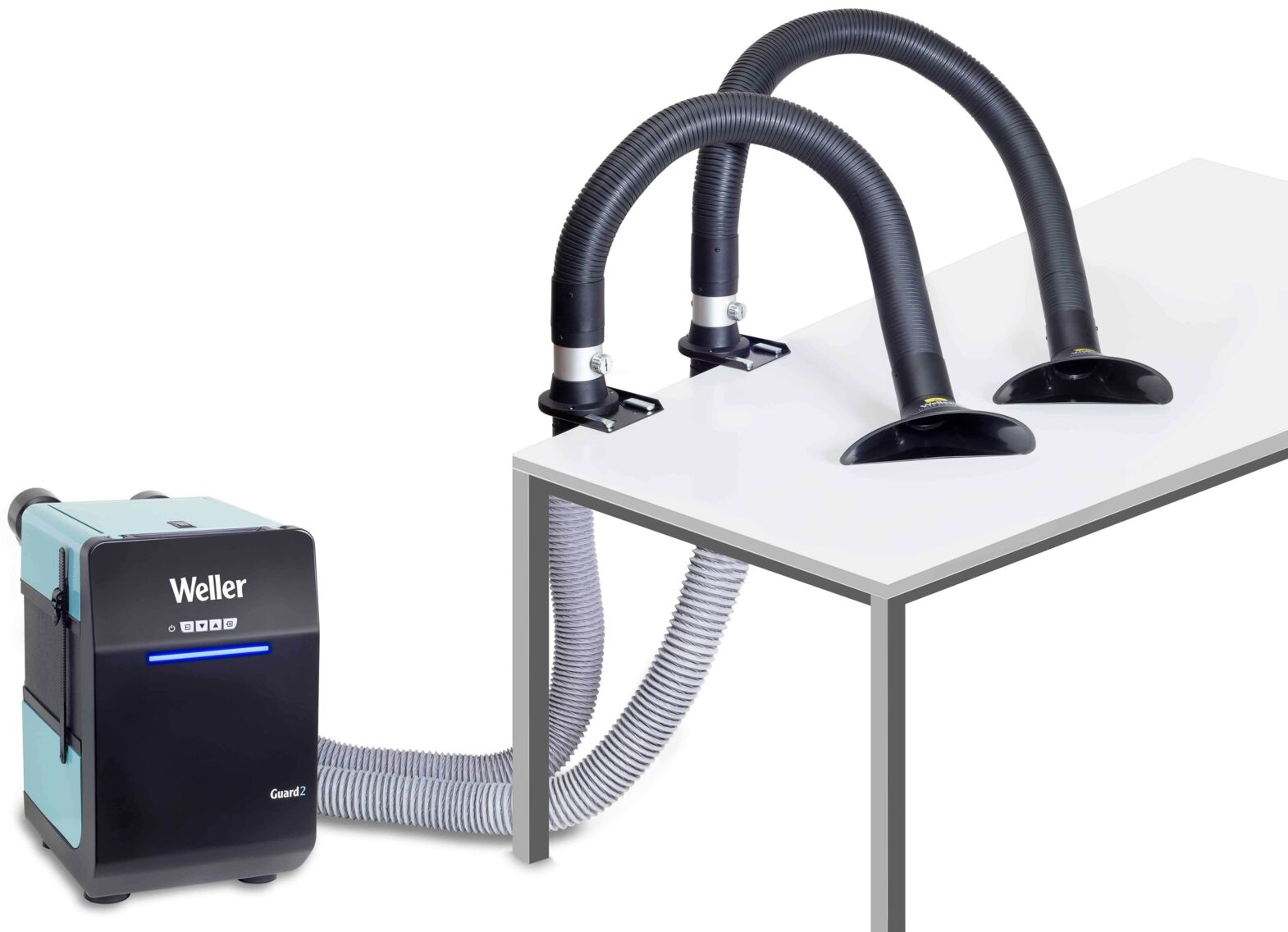

The image shows a suction device with two flexible hoses mounted on a table. The device has a black and turquoise surface with a glowing logo.

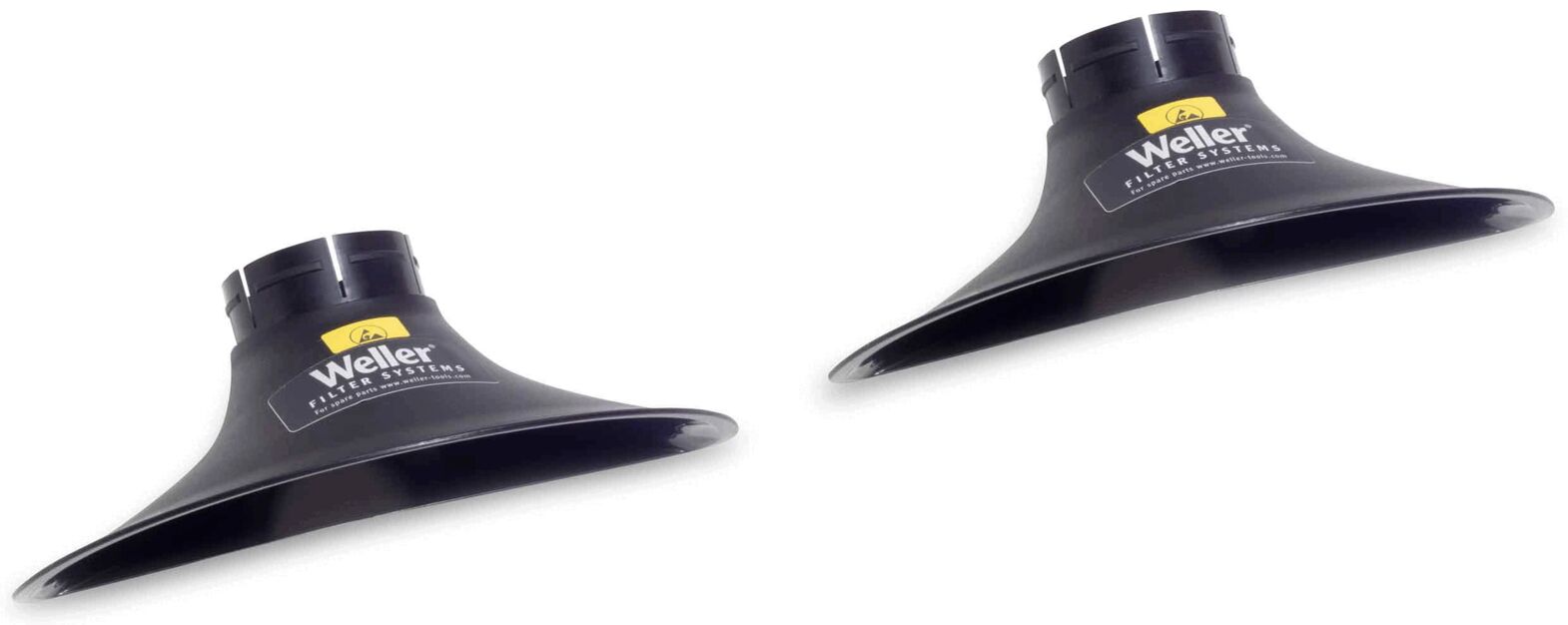

The image shows two black, funnel-shaped attachments. They have a wide rim and a narrow neck, which is open at the top. The brand "Weller" is marked on the attachments.

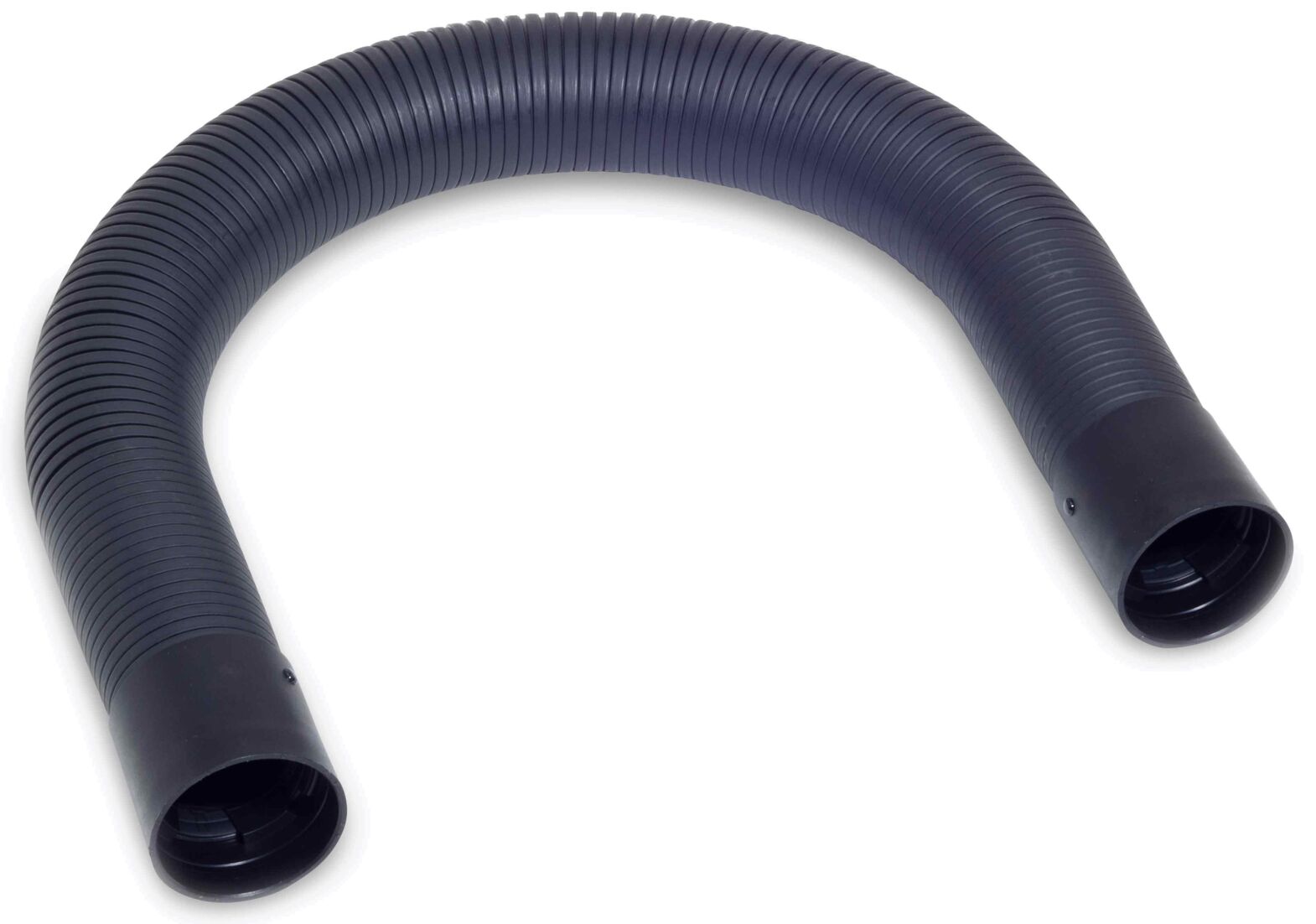

The image shows a curved, black hose with a ribbed surface. There are openings at both ends that serve for connection or attachment.

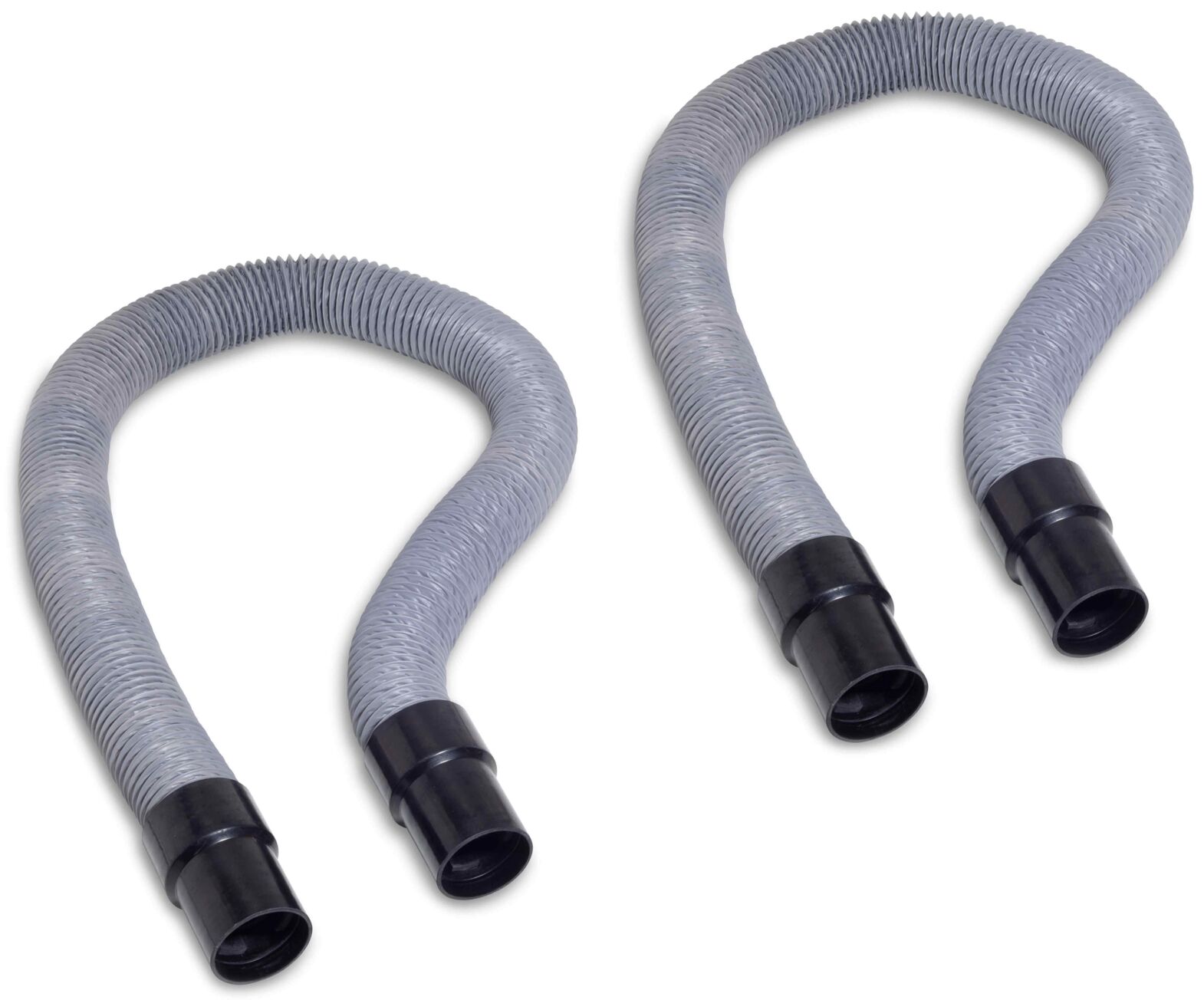

The image shows two flexible, wavy hoses. They are made of gray material and have black connections at both ends. The hoses are slightly curved and arranged parallel to each other.

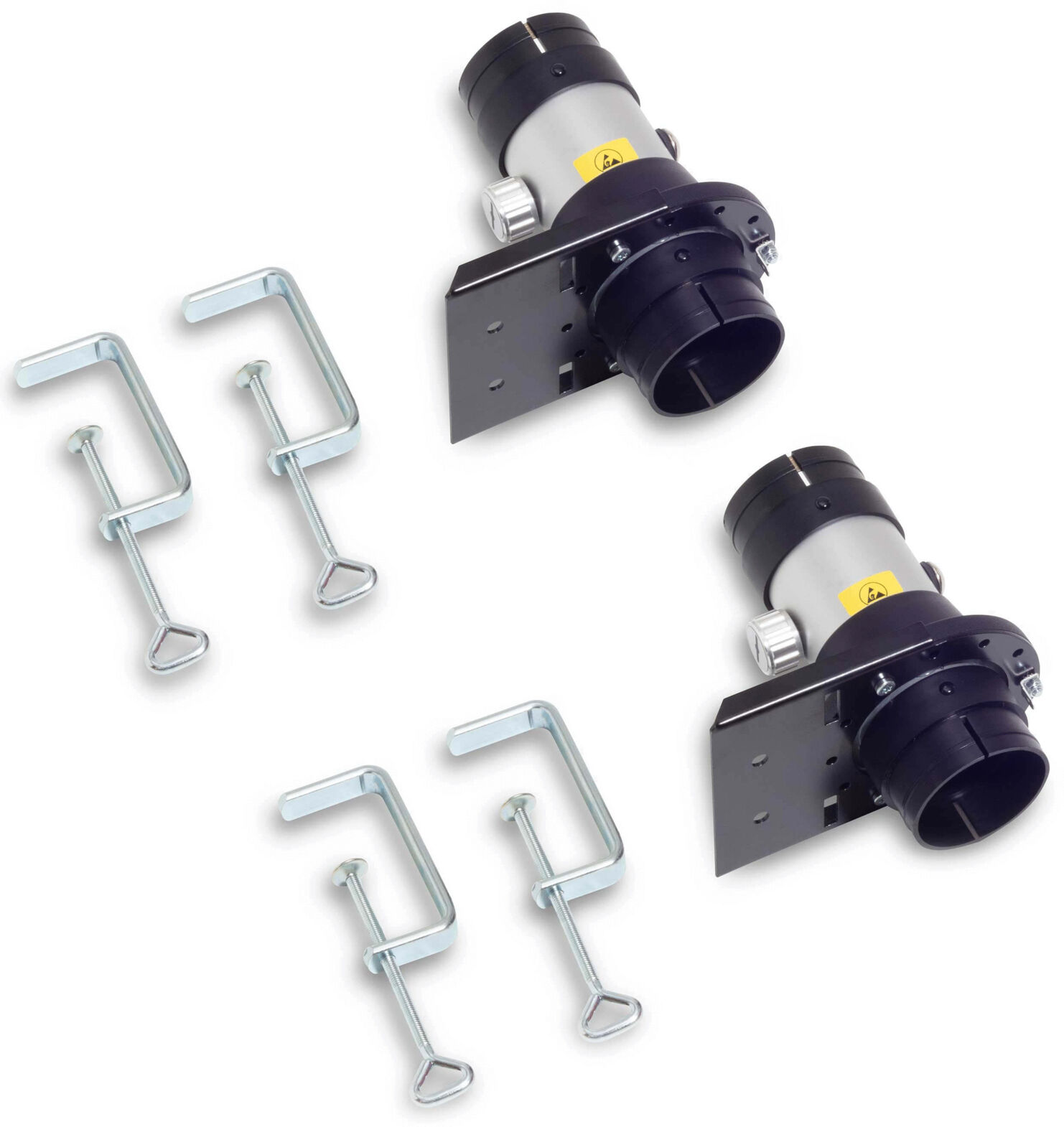

The image shows two identical metal parts, likely brackets or adapters, made of black and silver material. Next to them are two simple metal clips.
Preview: The image shows a suction device with two flexible hoses mounted on a table. The device has a black and turquoise surface with a glowing logo.
Preview: The image shows two black, funnel-shaped attachments. They have a wide rim and a narrow neck, which is open at the top. The brand "Weller" is marked on the attachments.
Preview: The image shows a curved, black hose with a ribbed surface. There are openings at both ends that serve for connection or attachment.
Preview: The image shows two flexible, wavy hoses. They are made of gray material and have black connections at both ends. The hoses are slightly curved and arranged parallel to each other.
Preview: The image shows two identical metal parts, likely brackets or adapters, made of black and silver material. Next to them are two simple metal clips.
ZeroSmog Guard 2 solder fume extracrion kit2 ALFA incl. suction hose
(Product No.: FT91026699)
The image shows a suction device with two flexible hoses mounted on a table. The device has a black and turquoise surface with a glowing logo.
The image shows two black, funnel-shaped attachments. They have a wide rim and a narrow neck, which is open at the top. The brand "Weller" is marked on the attachments.
The image shows a curved, black hose with a ribbed surface. There are openings at both ends that serve for connection or attachment.
The image shows two flexible, wavy hoses. They are made of gray material and have black connections at both ends. The hoses are slightly curved and arranged parallel to each other.
The image shows two identical metal parts, likely brackets or adapters, made of black and silver material. Next to them are two simple metal clips.
Mobile Preview: The image shows a suction device with two flexible hoses mounted on a table. The device has a black and turquoise surface with a glowing logo.
Mobile Preview: The image shows two black, funnel-shaped attachments. They have a wide rim and a narrow neck, which is open at the top. The brand "Weller" is marked on the attachments.
Mobile Preview: The image shows a curved, black hose with a ribbed surface. There are openings at both ends that serve for connection or attachment.
Mobile Preview: The image shows two flexible, wavy hoses. They are made of gray material and have black connections at both ends. The hoses are slightly curved and arranged parallel to each other.
Mobile Preview: The image shows two identical metal parts, likely brackets or adapters, made of black and silver material. Next to them are two simple metal clips.
Notice / Inquire

ZeroSmog Guard 2 solder fume extracrion kit2 ALFA incl. suction hose

dpvlink:
30132
Noise level:
55 dB
Power:
142 W
Numbers of connections:
2
Air flow/hour:
200 m³
Max. vacuum:
2,250 Pa
Properties:
ZeroSmog Guard – effective soldering fume extraction
Further product information

NEW
1,750.95 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ZeroSmog Guard 2 solder fume extracrion kit2 ALFA incl. suction hose

The ZeroSmog Guard 2 Lötrauchabsauggeräte-Kit2 ALFA from Weller offers an advanced solution for improving air quality in workplaces where soldering tasks are performed. It is characterized by its high efficiency in filtering particles and gases, including a HEPA H13 particle filter as well as activated carbon and potassium permanganate, which not only effectively remove soldering particles but also neutralize odors.
Equipped with a powerful blower that guarantees constant suction pressure, the device offers a high flow rate, ensuring that all smoke gases are captured. The innovative filter status indicator and the bright light strip inform about the current status of the extraction and signal the need for a filter change, thus ensuring always optimal functionality.
The compact design of the ZeroSmog Guard 2 allows for space-saving storage under the workbench and is ideal for use by two people. With dimensions of 336 mm width, 435 mm height, and 270 mm length, and a weight of 9.5 kg, it is easy to integrate. The low noise level of less than 55 dB makes it one of the quietest solutions in its class.
Additionally, the device is ESD-safe and compatible with the Weller Easy-Click 60 hose system, which allows for use in sensitive electronic work environments. The scope of delivery includes the main filter unit, various pre-filters, extraction arms, and flexible hoses, enabling immediate operation.
Noise level
Noise level
55 dB
Power
Power
142 W
Numbers of connections
Numbers of connections
2
Air flow/hour
Air flow/hour
200 m³
Max. vacuum
Max. vacuum
2,250 Pa
Voltage
Voltage
230 V
Height
Height
435 mm
Length
Length
270 mm
Width
Width
336 mm
Weight
Weight
9.5 kg
ZeroSmog Guard – effective soldering fume extraction
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image displays a square container with a smooth, black exterior. It is filled at the top with a pink, fluffy substance.
NEW
NEW
Standard filter set for ZeroSmog Guard solder...
Filter set for ZeroSmog Guard HEPA H13 and
activated carbon main filter + 5 pre-filters
dpvlink
30136

136.85 CHF
Show product
The image shows a black, square container with a soft, pink-colored content that looks like cotton. The surface is fluffy and uneven.
NEW
NEW
Wideband gas filter set for ZeroSmog Guard...
Filter set for ZeroSmog Guard HEPA H13 and
activated carbon + potassium permanganate
main filter, 5 pre-filters
dpvlink
30136

142.10 CHF
Show product
The image displays a square container with a smooth, black exterior. It is filled at the top with a pink, fluffy substance.
NEW
NEW
Filter for adhesive fumes for ZeroSmog Guard...
Filter set for ZeroSmog Guard activated carbon,
potassium permanganate main filter,
5 pre-filters
dpvlink
30136

142.10 CHF
Show product
The image shows a small, rectangular switch in black with the labels "ON" and "OFF". A narrow lever is located in the middle. At one end, a black cable is attached.
NEW
NEW
Remote control for ZeroSmog Guard + ZeroSmog...
Remote ON/OFF switch for ZeroSmog Guard
& Guard 2
dpvlink
30136

26.35 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

ZeroSmog Guard solder fume extracrion kits

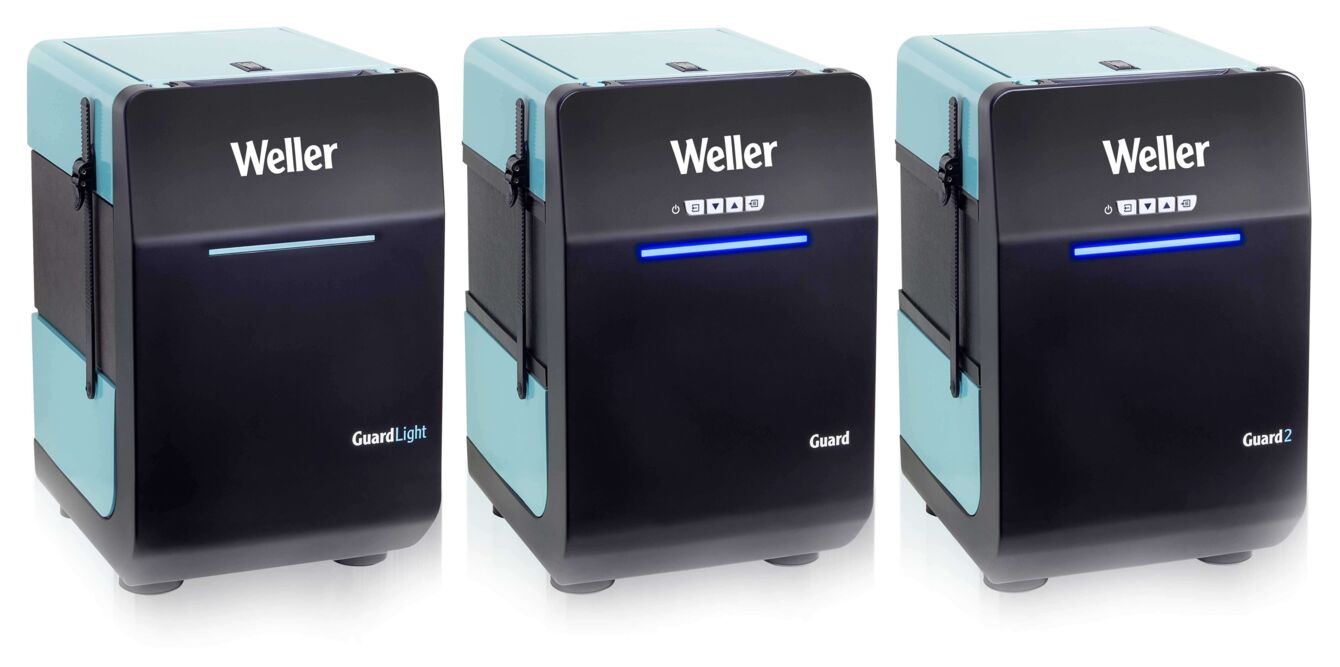

With the Weller ZeroSmog Guard, the quietest filter unit on the market, you get a comprehensive solution for clean air in the workplace. The ZeroSmog Guard kits, consisting of the powerful filter unit, extraction arms and high-quality filters, are perfectly tailored to individual requirements. They provide effective solder fume extraction and ensure that your workplace remains clean, quiet and healthy.

With this efficient combination of filter technology and flexible extraction solutions, you can sustainably improve your working environment and protect your health. Concentrate on your work in a quiet, clean and fresh environment - without worrying about air quality.

  • Clean and healthy air: Ensures excellent air quality through highly efficient filtration of soldering particles and gases with a large filter surface (H13 HEPA particle filter, activated carbon and potassium permanganate).
  • Unique experience: The lowest noise level on the market (max. 50 or 55 dB) for a healthy, pleasant and comfortable working environment.
  • Quick and easy filter change: User-friendly thanks to quick and easy change of pre-filter and main filter.
  • Compact design: Saves space with a compact design under the workbench, ideal for use by 2 people.
  • Powerful extraction: The robust blower ensures sufficient suction pressure throughout the filter's service life and therefore a high volume flow for effective capture of all fumes.
  • Solder fume extraction kits with 1 or 2 suction arms
  • Extraction units with different power (74 or 142 W)
  • Max. flow rate 100 or 200 m³/h
  • Max. negative pressure 2250 or 2700 PA/V

Further information on ZeroSmog Guard can be found here.




Article image
Article description
ESD
Noise level
Power
Numbers of connections
Air flow/hour
Max. vacuum
Price
Compare
NEW
FT91024699 - ZeroSmog Guard Light solder fume extracrion kit1 ALFA incl. suction hose
FT91024699
ZeroSmog Guard Light solder fume extracrion kit1 ALFA incl. suction hose
50 dB
74 W
1
100 m³
2,700 Pa
810.70 CHF
NEW
FT91025699 - ZeroSmog Guard solder fume extracrion kit1 ALFA incl. suction hose
FT91025699
ZeroSmog Guard solder fume extracrion kit1 ALFA incl. suction hose
50 dB
74 W
1
100 m³
2,700 Pa
983.35 CHF
NEW
FT91026699 - ZeroSmog Guard 2 solder fume extracrion kit2 ALFA incl. suction hose
FT91026699
ZeroSmog Guard 2 solder fume extracrion kit2 ALFA incl. suction hose
55 dB
142 W
2
200 m³
2,250 Pa
1,750.95 CHF
Show Compare List (0)

This product is compatible with (for example):

The image shows a suction device with two flexible hoses mounted on a table. The device has a black and turquoise surface with a glowing logo.
NEW
NEW
ZeroSmog Guard 2 solder fume extracrion kit2...
ZeroSmog Guard 2 Kit 1 ALFA solder fume extraction
142W, 230V, single station filter unit
ESD-safe,
Scope of delivery:
ZeroSmog Guard 2, 230 V,
1 x Main filter (HEPA H13 and activated carbon + potassium permanganate)
5 x ePM1-75% pre-filter
2 x ALFA nozzle,
2 x 0F10 hose,
2 x WFV shut-off valve
2x 3m flexible hose
dpvlink
30132

1,750.95 CHF
Show product
