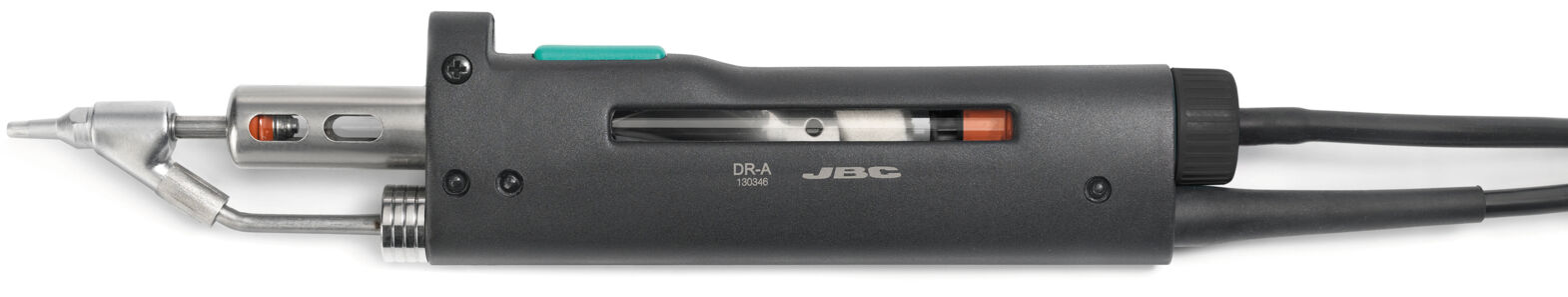

The image shows a black soldering device with a long, narrow body and a silver soldering tip. There are switches and a transparent display on the side. Two cables extend from the device.
DR560-A desoldering iron
(Product No.: JBC-DR560-A)
The image shows a black soldering device with a long, narrow body and a silver soldering tip. There are switches and a transparent display on the side. Two cables extend from the device.
Notice / Inquire

DR560-A desoldering iron

dpvlink:
20505
Power:
160 W
Width :
24 mm
Height :
48 mm
Length :
230 mm
Properties:
Further product information

631.25 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

DR560-A desoldering iron

The JBC DR560-A Desoldering Iron is a powerful and precise tool that enables efficient and clean desoldering due to its high performance, rapid heating time, and integrated vacuum pump. With its ergonomic design and smart features such as sleep and hibernation modes, it is user-friendly and efficient. The DR560-A is ideally suited for desoldering wired components and removing excess solder after SMD rework. The desoldering iron has a glass solder container, making it easy to see when it needs to be cleaned or the filter needs to be replaced. The soldering iron is compatible with the C560 series soldering tips and comes with a desoldering tip from the series (C560-003).



Power
Power
160 W
Width
Width
24 mm
Height
Height
48 mm
Length
Length
230 mm
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image displays technical drawings of an electrical connector plug. At the top are two views: a side view and a top view. Below is another view with labels and dimensions.
Desoldering nozzle C560-003
JBC 560-003 desoldering nozzle for DR560
-for pin with max = Ø 0.8 mm
-A = Ø 2.7 mm, B = Ø 1.0 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

32.50 CHF
Show product
The image displays technical drawings of a connector with dimensions. Various views of the connector are shown, including its top side and a detailed view.
Desoldering nozzle C560-004
JBC 560-004 desoldering nozzle for DR560
-for pin with max = Ø 1.1 mm
-A = Ø 3.2 mm, B = Ø 1.3 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

32.50 CHF
Show product
The image displays technical drawings of a component, likely a connector. It includes various views and dimensions, indicating diameters and a maximum pin size.
Desoldering nozzle C560-005
JBC 560-001 desoldering nozzle for DR560
-for pin with max = Ø 1.3 mm
-A = Ø 3.4 mm, B = Ø 1.5 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

32.50 CHF
Show product
The image displays technical drawings of a connector plug. At the top are two views of the plug with dimensions, below is a side view with labels. Shapes are round and cylindrical.
Desoldering nozzle C560-006
JBC 560-006 desoldering nozzle for DR560
-for pin with max = Ø 1.7 mm
-A = Ø 4.2 mm, B = Ø 1.9 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

32.50 CHF
Show product
The image displays technical drawings of a component from multiple perspectives. At the top, there are two views depicted, with a side view on the right and a top view on the left. Below, there is an additional view with dimensions.
Desoldering nozzle C560-009
JBC 560-009 desoldering nozzle for DR560
-for pin with max = Ø 1.1 mm
-A = Ø 5.0 mm, B = Ø 1.3 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

32.50 CHF
Show product
The image shows various views of a technical component, likely a nozzle or connector. The dimensions are marked, and the item is labeled C560-013.
Desoldering nozzle C560-013
JBC 560-013 desoldering nozzle for DR560
- A= Ø 2.7 mm, B= Ø 1.0 mm
- specially for pad cleaning
-for screwing, mounting by thread on the iron
dpvlink
25943

32.50 CHF
Show product
The image displays a technical drawing of a nozzle element. It consists of a cylindrical body with a narrow, pointed end and includes measurements of diameters and a part number.
Desoldering nozzle C560-001
JBC 560-001 desoldering nozzle for DR560
-for pin with max = Ø 0.4 mm
-A = Ø 1.4 mm, B = Ø 0.6 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

31.25 CHF
Show product
The image displays various views of a special nozzle or tip, including its length, diameter, and maximum pin size. Technical dimensions are provided.
Desoldering nozzle C560-002
JBC 560-002 desoldering nozzle for DR560
-for pin with max = Ø 0.6 mm
-A = Ø 1.8 mm, B = Ø 0.8 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

31.25 CHF
Show product
The image displays technical drawings of a mechanical part that is round on one side and threaded on the other. Dimensions are provided in millimeters.
Desoldering nozzle C560-007
JBC 560-007 desoldering nozzle for DR560
-for pin with max = Ø 2.2 mm
-A = Ø 4.8 mm, B = Ø 2.4 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

32.50 CHF
Show product
The image displays a technical drawing of a spray nozzle attachment with various views. The nozzle opening has precise dimensions, specified in millimeters and inches.
Desoldering nozzle C560-011
JBC 560-011 desoldering nozzle for DR560
- A= Ø 1.4 mm, B= Ø 0.6 mm
- specially for pad cleaning
-for screwing, mounting by thread on the iron
dpvlink
25943

31.25 CHF
Show product
The image displays various views of a fine, metallic tip with different diameters. The dimensions are provided in millimeters and inches, with detailed drawings.
Desoldering nozzle C560-012
JBC 560-012 desoldering nozzle for DR560
- A= Ø 1.8 mm, B= Ø 0.8 mm
- specially for pad cleaning
-for screwing, mounting by thread on the iron
dpvlink
25943

31.25 CHF
Show product
The image displays technical drawings of a component with various views. It features a conical tip, a cylindrical body, and visible dimensions in millimeters and inches.
Desoldering nozzle C560-014
JBC 560-014 desoldering nozzle for DR560
-for pin with max = Ø 0.6 mm
-A = Ø 2.5 mm, B = Ø 0.8 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

32.50 CHF
Show product
The image displays technical drawings of a small, cylindrical connector with dimensions and various views. The connector has a spiraled part and geometric details.
Desoldering nozzle C560-015
JBC 560-015 desoldering nozzle for DR560
-for pin with max = Ø 2.8 mm
-A = Ø 5.2 mm, B = Ø 3.0 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

32.50 CHF
Show product
The image shows a technical drawing of a component with a sharp, conical shape. Dimensions are provided at one end, and two views are depicted: a side view and a top view.
Desoldering nozzle C560-017
JBC 560-017 desoldering nozzle for DR560
-for pin with D max = Ø 1.0 mm
-A = Ø 2.0 mm, B = Ø 1.1 mm
-for screwing, mounting by thread on the iron
dpvlink
25943

32.50 CHF
Show product
The image shows a metallic tool with a long, curved shape. It has a cylindrical body with two holes and a pointed tip at one end.
Heating element DSV-DR
JBC DSV-DR heating element
-DSV-DR heating element for DR560
dpvlink
29827

165.00 CHF
Show product
