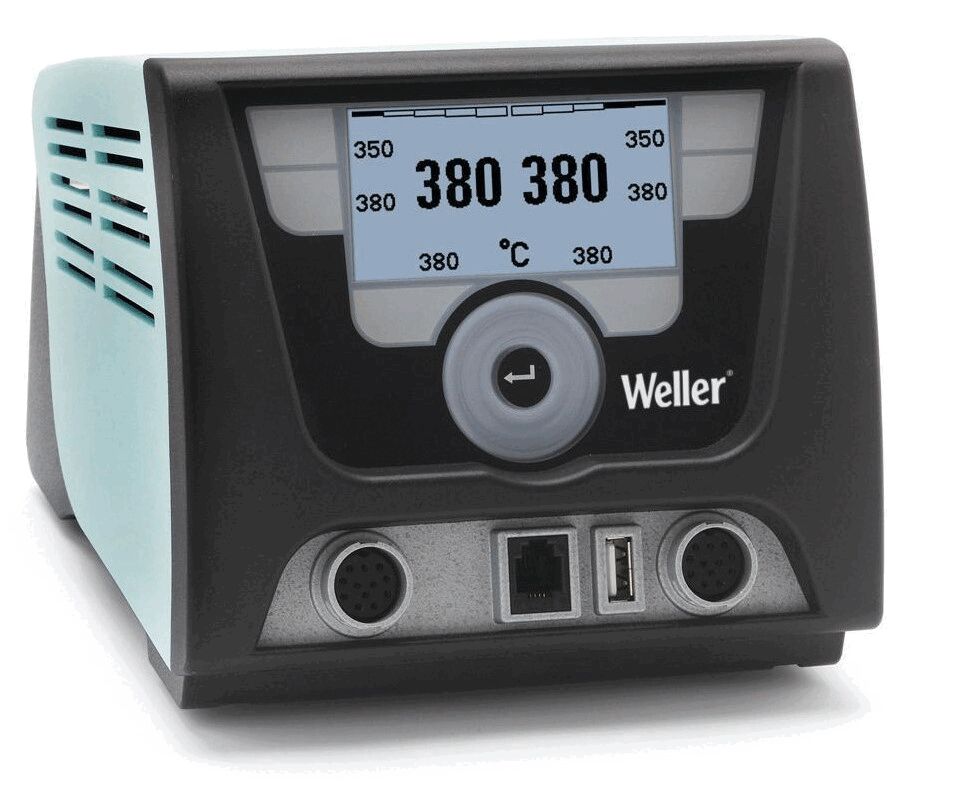

The image shows a digital temperature control device in a compact casing. It has a large display with temperature readings, three knobs, and ports on the front.
WX 2 supply unit
(Product No.: 534.203.99)
The image shows a digital temperature control device in a compact casing. It has a large display with temperature readings, three knobs, and ports on the front.
Notice / Inquire

WX 2 supply unit

dpvlink:
14792
Width :
154 mm
Height :
135 mm
Length :
174 mm
Channels:
2
Power:
255 W
Temperature range:
50 - 550 °C
Properties:
Further product information

758.05 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WX 2 supply unit

The Weller WX 2 is a digital 2-channel supply unit with a power of 200 W (max. 255 W). It allows simultaneous operation of two soldering irons and is compatible with all WX tools.

Features:

  • Integrated usage sensor for better energy management: Tools only switch on upon movement. Energy is only consumed when the tools are actually in use, otherwise they are powered down to standby mode.
  • Multi-functional USB interface for firmware updates, configuration and monitoring, as well as an interface for automatic soldering machines
  • Use as a benchtop controller: Integrated interfaces for connecting and controlling solder fume extraction systems and preheating plates, as well as for programmable logic controllers
  • Intelligent tool detection: connected tools etc. are automatically recognized and displayed on the screen
  • Secure soldering process thanks to temperature and tool locks and tool-specific temperature settings
  • Intuitive operation via a turn-click wheel with finger guide
  • Graphic LC display with backlight and multilingual menu navigation
  • Tool-specific parameterization via parameter memory in the soldering iron (e.g., automatic shutdown time, temperature)
  • The WX soldering irons heat up in a very short time and are ready for immediate use.
  • Potential equalization via 3.5 mm jack socket on the back







Width
Width
154 mm
Height
Height
135 mm
Length
Length
174 mm
Channels
Channels
2
Power
Power
255 W
Temperature range
Temperature range
50 - 550 °C
Automatic tool detection
Automatic tool detection ensures that soldering stations and other systems identify the connected tool and make the optimum settings automatically.
yes
Fuse
Fuse
T2A
Voltage
Voltage
230 V
Bracket
Bracket
plastic, aluminum
ESD
ESD
yes
Control
Control
digital
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Weight
Weight
3.2 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
