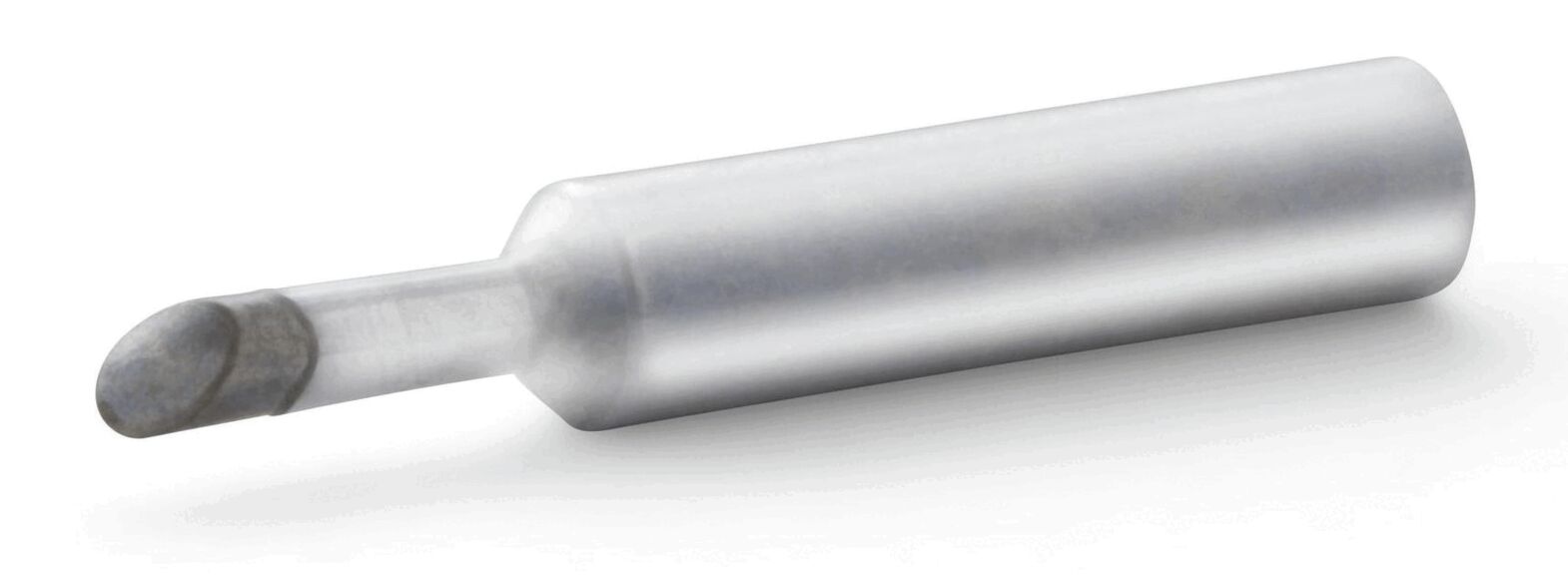

The image shows a silver, metallic tool with an elongated shape. At one end, it has a rounded tip, which is likely used for working or processing materials.
The image displays a silver, cylindrical metal object. At one end, a black hole is visible, and at the other end, a white cable extends.

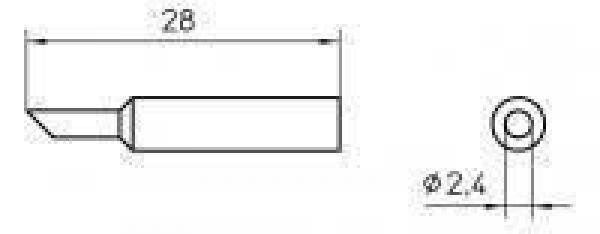

The image shows a technical drawing of a tool. It has a length of 28 mm, with a slanted cutting edge and a diameter of 2.4 mm at one end.
Preview: The image shows a silver, metallic tool with an elongated shape. At one end, it has a rounded tip, which is likely used for working or processing materials.
Preview: The image displays a silver, cylindrical metal object. At one end, a black hole is visible, and at the other end, a white cable extends.
Preview: The image shows a technical drawing of a tool. It has a length of 28 mm, with a slanted cutting edge and a diameter of 2.4 mm at one end.
Soldering tip XNT BB 45°
(Product No.: 544.885.99)
The image shows a silver, metallic tool with an elongated shape. At one end, it has a rounded tip, which is likely used for working or processing materials.
The image displays a silver, cylindrical metal object. At one end, a black hole is visible, and at the other end, a white cable extends.
The image shows a technical drawing of a tool. It has a length of 28 mm, with a slanted cutting edge and a diameter of 2.4 mm at one end.
Mobile Preview: The image shows a silver, metallic tool with an elongated shape. At one end, it has a rounded tip, which is likely used for working or processing materials.
Mobile Preview: The image displays a silver, cylindrical metal object. At one end, a black hole is visible, and at the other end, a white cable extends.
Mobile Preview: The image shows a technical drawing of a tool. It has a length of 28 mm, with a slanted cutting edge and a diameter of 2.4 mm at one end.
Notice / Inquire

Soldering tip XNT BB 45°

dpvlink:
30009
Tip width:
2,4 mm
Thickness/diameter:
4.7 mm
Soldering tip shape:
round , sloped 45°
Further product information

8.40 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Soldering tip XNT BB 45°

The Weller XNT BB 45° soldering tip is specifically designed for demanding soldering tasks requiring high heat and large solder joints. This tip features a round shape with a 45° bevel, making it particularly suitable for universal applications. With a width of 2.4 mm and a thickness of 4.7 mm, it offers precise performance for any application. The soldering tip is 28 mm long and belongs to the XNT series of soldering tips, known for their high quality and durability. It is compatible with the soldering iron models WXP 65 and WTP 90, allowing flexible use in various soldering scenarios. This tip is packaged individually to ensure optimal storage and condition upon delivery. Ideal for professional users in electronics manufacturing who need reliable and efficient equipment.
Tip width
Tip width
2,4 mm
Thickness/diameter
Thickness/diameter
4.7 mm
Soldering tip shape
Soldering tip shape
round , sloped 45°
Length
Length
28 mm
Packing
Packing
individually
Soldering tip series
Soldering tip series
XNT
suitable soldering iron
suitable soldering iron
WXP 65 / WTP 90
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

XNT Soldering tip round sloped

Round XNT soldering tips, beveled 45° for soldering irons WXP 65 and WTP 90

Article image
Article description
ESD
Tip width
Thickness/diameter
Soldering tip shape
Price
Compare
544.885.99 - Soldering tip XNT BB 45°
544.885.99
Soldering tip XNT BB 45°
2,4 mm
4.7 mm
round , sloped 45°
8.40 CHF
544.886.99 - Soldering tip XNT CC 45°
544.886.99
Soldering tip XNT CC 45°
3.2 mm
4.7 mm
round , sloped 45°
8.40 CHF
