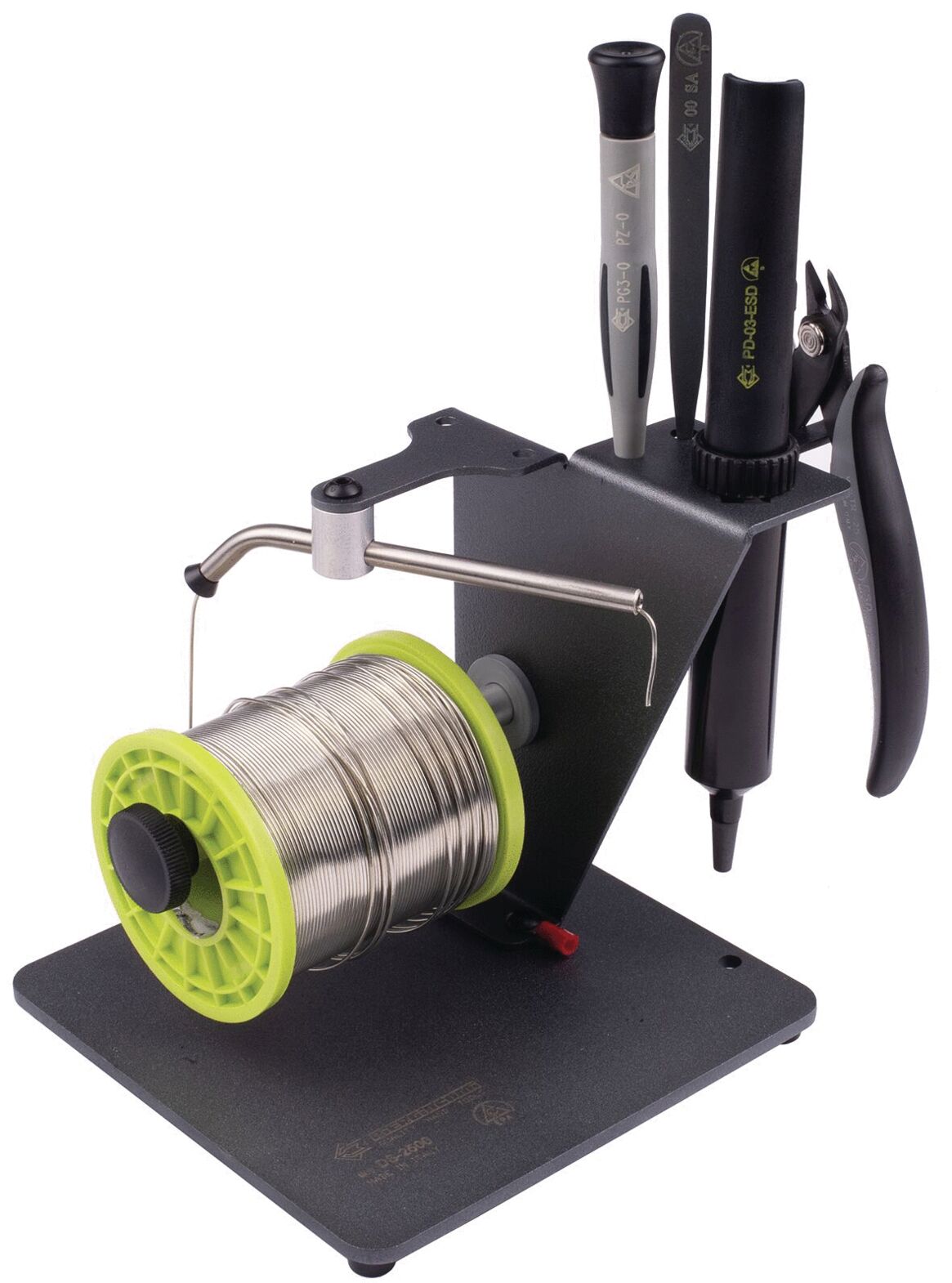

The image shows a tool station for winding wires. It consists of a sturdy base, a spool with silver wire, and a stand that holds two markers and a pair of pliers.

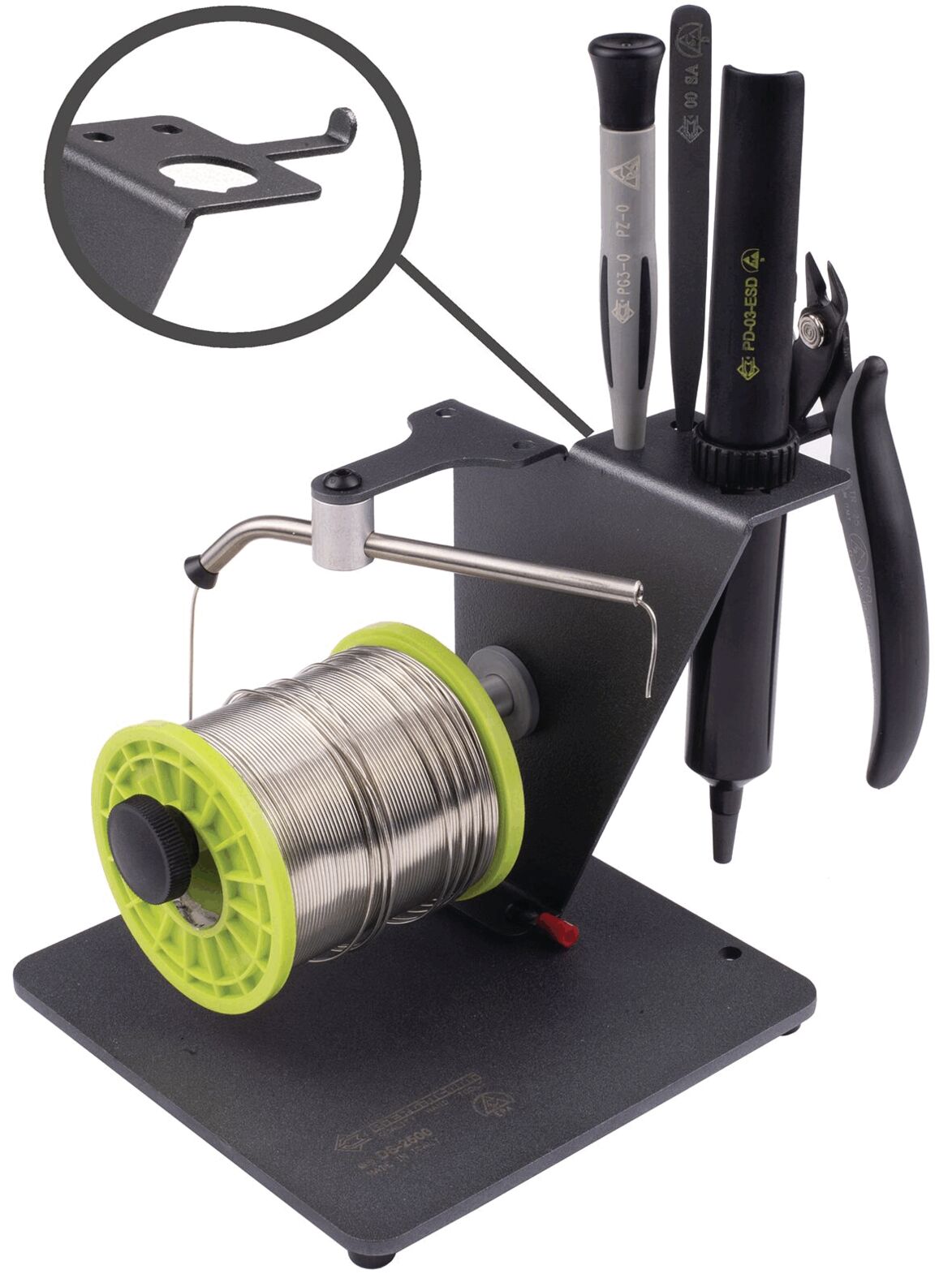

The image shows a tool holder made of black metal. It features a spool with wire, a holder for pens, and a pair of pliers. An additional inset provides a detailed view.
Preview: The image shows a tool station for winding wires. It consists of a sturdy base, a spool with silver wire, and a stand that holds two markers and a pair of pliers.
Preview: The image shows a tool holder made of black metal. It features a spool with wire, a holder for pens, and a pair of pliers. An additional inset provides a detailed view.
Solder tin dispenser ESD DS-2500-K incl. tool holder
(Product No.: P-DS2500-K.ESD)
The image shows a tool station for winding wires. It consists of a sturdy base, a spool with silver wire, and a stand that holds two markers and a pair of pliers.
The image shows a tool holder made of black metal. It features a spool with wire, a holder for pens, and a pair of pliers. An additional inset provides a detailed view.
Mobile Preview: The image shows a tool station for winding wires. It consists of a sturdy base, a spool with silver wire, and a stand that holds two markers and a pair of pliers.
Mobile Preview: The image shows a tool holder made of black metal. It features a spool with wire, a holder for pens, and a pair of pliers. An additional inset provides a detailed view.
Notice / Inquire

Solder tin dispenser ESD DS-2500-K incl. tool holder

dpvlink:
17637
Properties:
Further product information

81.90 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Solder tin dispenser ESD DS-2500-K incl. tool holder

The Piergiacomi ESD DS-2500-K solder wire dispenser, equipped with a tool holder, is an efficient solution for technical work environments that require ESD safety. This model supports solder wire rolls with a core diameter of over 11 mm and a maximum roll length of 100 mm, while the maximum wire diameter is 2 mm and the roll weight can handle up to 2.5 kg.
The dispenser is specifically designed to keep the work area clean and minimize solder waste. Thanks to the movable guide tube, the wire can be efficiently unwound from the spool. Additionally, the device offers the possibility to integrate a second spool with the optional DS2500 ABD accessory. At the rear part of the device, there is a storage area for various hand tools required during the soldering process, such as desoldering guns, tweezers, pliers, or screwdrivers.
The dimensions of the solder wire dispenser are 150 mm in width, 255 mm in height, and 190 mm in length. The dispenser is coated with ESD powder to ensure electrostatic discharge safety. Note that the spool is not included in the delivery.
Height
Height
255 mm
Length
Length
190 mm
Width
Width
150 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 623
Complete Catalog 2023 - 2024

Product Family

DS 2500 Solder tin dispenser

The DS 2500 solder dispenser with guide tube keeps the workplace tidy and reduces solder waste. They also offer space for various useful hand tools such as tweezers, screwdrivers or pliers. They also have an ESD powder coating. The solder dispensers are available in different versions: They already have a second reel or can be fitted with a second reel using an additional device.

The dispensers are suitable for solder rolls with the following dimensions:

  • core diameter > 11 mm
  • max. solder wire diameter 2 mm
  • weight up to 2.5 kg
  • length 100 mm


Article image
Article description
Height
Length
Width
Price
Compare
P-DS2500.ESD - Solder tin dispenser ESD DS-2500
P-DS2500.ESD
Solder tin dispenser ESD DS-2500
155 mm
190 mm
150 mm
40.15 CHF
P-DS25002-B.ESD - Solder tin dispenser ESD DS-25002B for 2 reels
P-DS25002-B.ESD
Solder tin dispenser ESD DS-25002B for 2 reels
300 mm
190 mm
150 mm
70.35 CHF
P-DS2500-K.ESD - Solder tin dispenser ESD DS-2500-K incl. tool holder
P-DS2500-K.ESD
Solder tin dispenser ESD DS-2500-K incl. tool holder
255 mm
190 mm
150 mm
81.90 CHF
P-DS2500-AB.ESD - Solder tin reel holder ESD for second reel
P-DS2500-AB.ESD
Solder tin reel holder ESD for second reel



32.20 CHF
