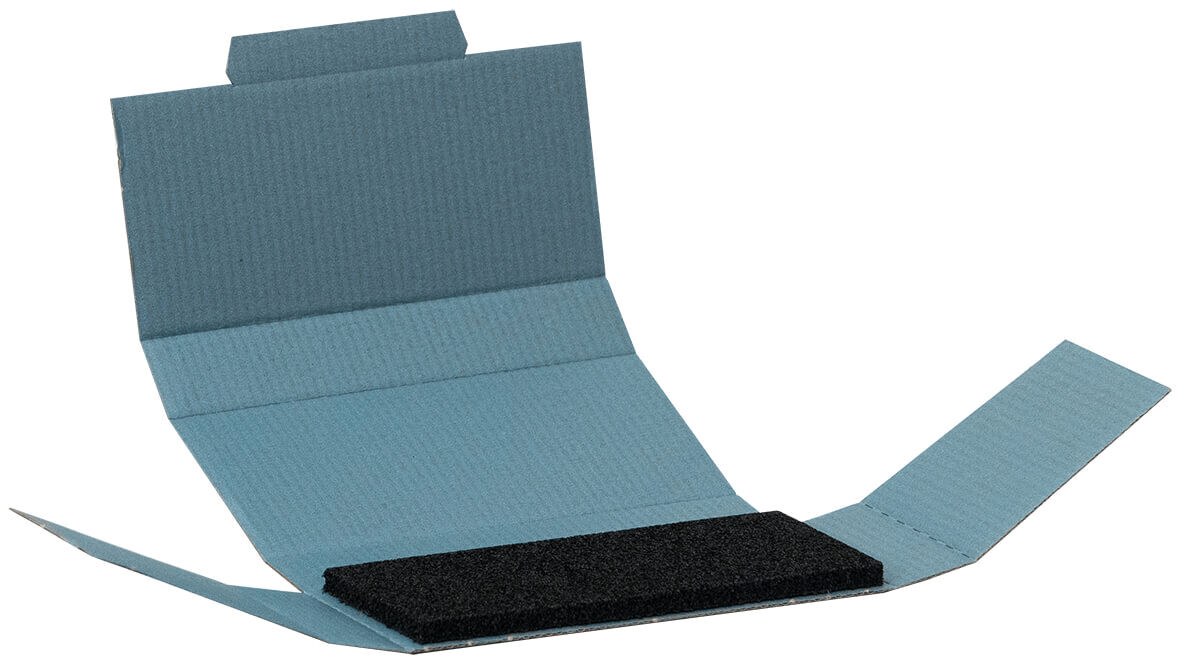

The image shows an open blue box. In the center lies a black, rectangular piece of foam. The box has two side flaps and a lid.

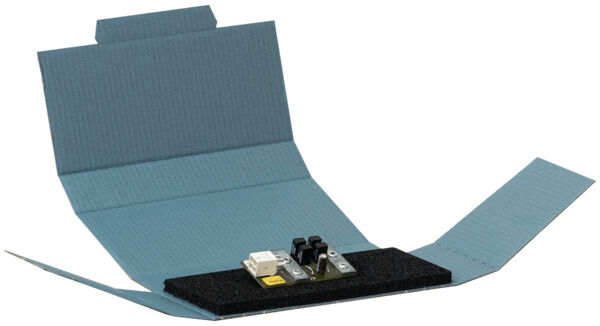

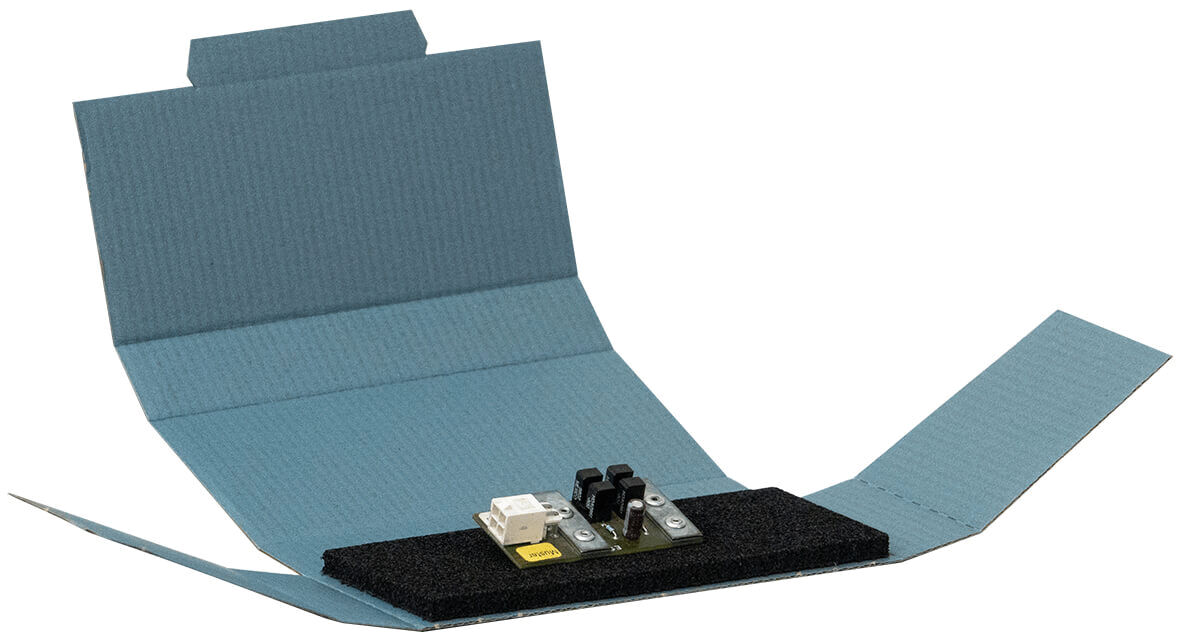

The image shows an open, blue package. In the center, three green, flat objects rest on a velvety black background. The package has flaps on both sides.
Preview: The image shows an open blue box. In the center lies a black, rectangular piece of foam. The box has two side flaps and a lid.
Preview: The image shows an open, blue package. In the center, three green, flat objects rest on a velvety black background. The package has flaps on both sides.
Preview: Image
CORproTRONIC shipping box 155x70x25mm with foam for pin insertion
(Product No.: CORpro-30.TEP.PE)
The image shows an open blue box. In the center lies a black, rectangular piece of foam. The box has two side flaps and a lid.
The image shows an open, blue package. In the center, three green, flat objects rest on a velvety black background. The package has flaps on both sides.
Mobile Preview: The image shows an open blue box. In the center lies a black, rectangular piece of foam. The box has two side flaps and a lid.
Mobile Preview: The image shows an open, blue package. In the center, three green, flat objects rest on a velvety black background. The package has flaps on both sides.
Mobile Preview: Image
Notice / Inquire

CORproTRONIC shipping box 155x70x25mm with foam for pin insertion

dpvlink:
31608
outside LxWxH:
159 x 76 x 31 mm
inside LxWxH:
155 x 70 x 25 mm
Foam:
PE foam for pin insertion
Properties:
CORproTRONIC® - the successor at a glance
Further product information

Minimum order:
10 PCE
NEW
2.40 CHF

excl. 8.1% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

CORproTRONIC shipping box 155x70x25mm with foam for pin insertion

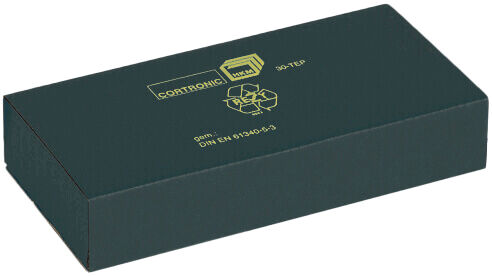

The CORproTRONIC shipping box manufactured by Kolb, with dimensions of 155x70x25mm, has been specifically designed for the transportation of sensitive electronic components. This box is the direct successor to the CORTRONIC E-Prom series and is distinguished by its robust construction and enhanced protective features. It is available in a black exterior color and a blue interior color, both of which exhibit high resistance.
The electrically conductive PE foam inside provides effective electrostatic shielding under 10 nJ (Energy Bag Test) and offers a surface resistance of 10^7 to 10^9 Ω. Additionally, the box features an ESD warning print, type designation, and a recycling symbol, making it particularly qualified for technical use.
The external dimensions of the box are 159mm in length and 76mm in width, while the interior measures 155mm in length, 70mm in width, and 25mm in height. This product thus offers high shielding properties and long-lasting color stability, ideal for the safe shipping and protection of your electronic components.
Foam
Foam
PE foam for pin insertion
Color
Color
black / blue
Height
Height
31 mm
Internal height
25 mm
Internal length
155 mm
Internal width
Internal width
70 mm
Length
Length
159 mm
Width
Width
76 mm
Conductivity foam
Conductivity foam
conductive
Surface resistance Rs
Surface resistance Rs
107 - 109 Ω
Replaces: COR-30.TEP.PE
CORTRONIC shipping box E-prom 155x70x25mm with pin-insertion foam
CORproTRONIC® - the successor at a glance
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

CORproTRONIC shipping box TEP

These CORproTRONIC shipping boxes are the successors to the CORTRONIC E-Prom series and are specially designed for the safe shipping of sensitive electronic components. The shipping boxes in this product family are available either without foam or with electrically conductive foam for pin insertion (6 mm PE or PU) or with napped foam (10 mm).

They have the following common features:

  • Interior color: blue
  • Exterior color: black (NEW)
  • Long-lasting color fastness
  • Surface resistance RS = 107 - 109 Ω (NEW)
  • High shielding properties
  • Electrostatic shielding <10 nJ (Energy Bag Test)
  • Standard imprint: ESD warning imprint, type designation, recycling symbol.

Article image
Article description
ESD
outside LxWxH
inside LxWxH
Foam
Price
Compare
NEW
CORpro-30.TEP - CORproTRONIC shipping box 155x70x25mm without foam
CORpro-30.TEP
CORproTRONIC shipping box 155x70x25mm without foam
159 x 76 x 31 mm
155 x 70 x 25 mm
without foam
1.60 CHF
NEW
CORpro-30.TEP.NO - CORproTRONIC shipping boxes 155x70x25mm with napped foam
CORpro-30.TEP.NO
CORproTRONIC shipping boxes 155x70x25mm with napped foam
159 x 76 x 31 mm
155 x 70 x 25 mm
napped foam
2.80 CHF
NEW
CORpro-30.TEP.PE - CORproTRONIC shipping box 155x70x25mm with foam for pin insertion
CORpro-30.TEP.PE
CORproTRONIC shipping box 155x70x25mm with foam for pin insertion
159 x 76 x 31 mm
155 x 70 x 25 mm
PE foam for pin insertion
2.40 CHF
NEW
CORpro-30.TEP.PE+NO - CORproTRONIC shipping box 155x70x25mm with napped foam and foam for pin insertion
CORpro-30.TEP.PE+NO
CORproTRONIC shipping box 155x70x25mm with napped foam and foam for pin insertion
159 x 76 x 31 mm
155 x 70 x 25 mm
PE foam / napped foam
3.40 CHF
