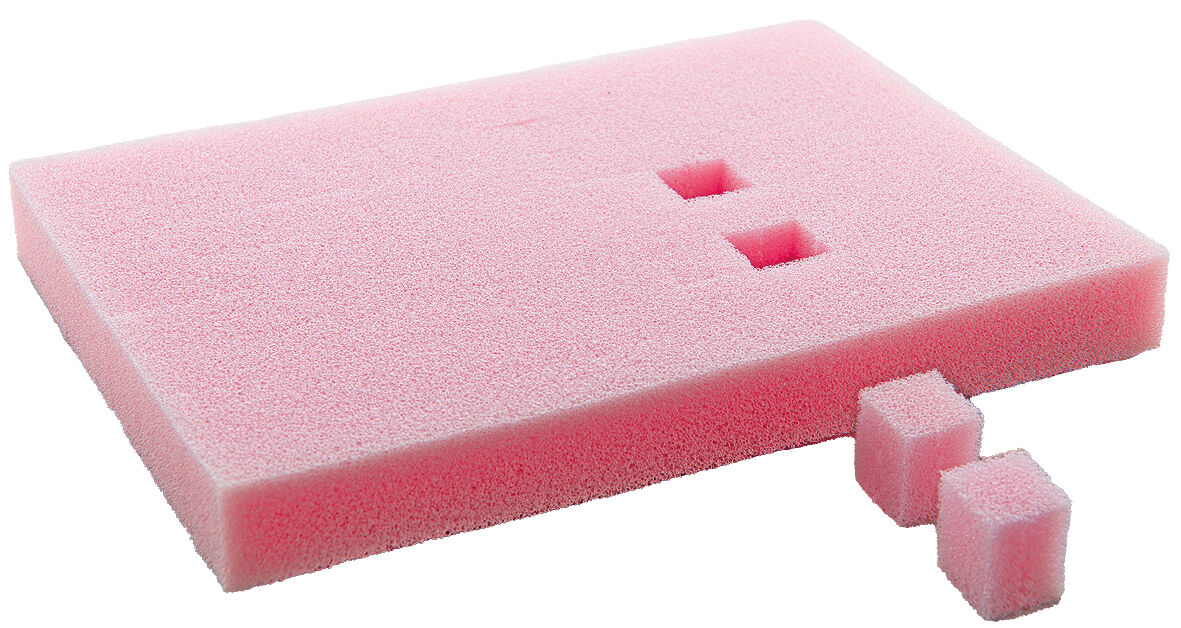

The image shows a rectangular, pink foam block with two smaller, square foam pieces next to it. There are two indentations on the large surface area.

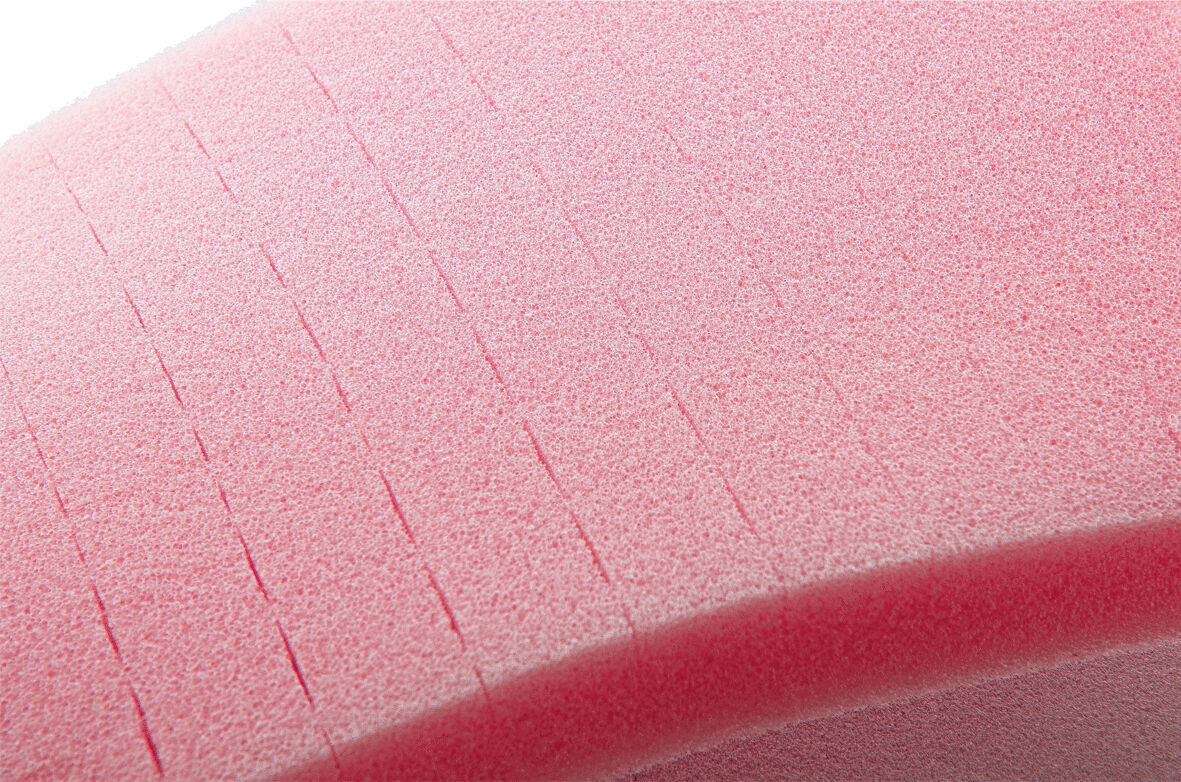

The image shows a pink foam surface with fine, parallel grooves. The structure is soft and has a slightly curved shape. It conveys a sense of flexibility.

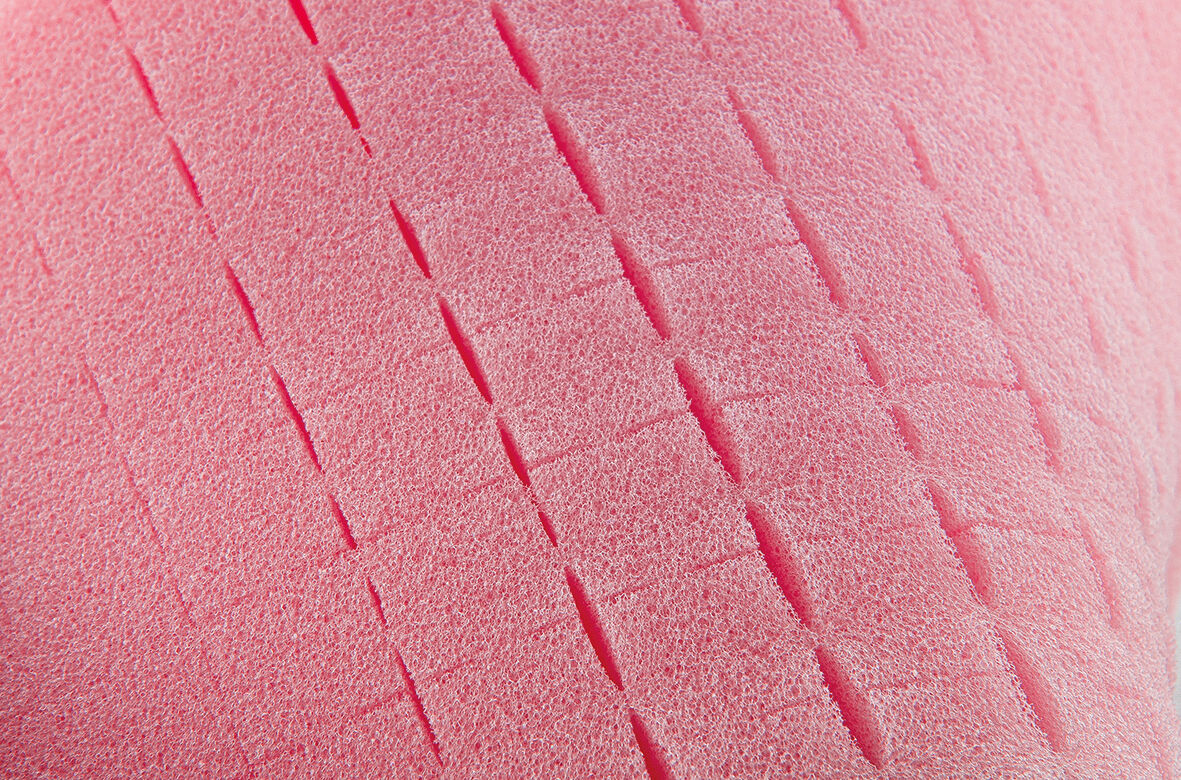

The image shows a structured, pink surface with parallel, slightly notched lines. These lines run in a regular pattern and create a tactile texture.
Preview: The image shows a rectangular, pink foam block with two smaller, square foam pieces next to it. There are two indentations on the large surface area.
Preview: The image shows a pink foam surface with fine, parallel grooves. The structure is soft and has a slightly curved shape. It conveys a sense of flexibility.
Preview: The image shows a structured, pink surface with parallel, slightly notched lines. These lines run in a regular pattern and create a tactile texture.
Gridded foam dissipative 178x127x20 mm
(Product No.: 4903.0.20.R15)
The image shows a rectangular, pink foam block with two smaller, square foam pieces next to it. There are two indentations on the large surface area.
The image shows a pink foam surface with fine, parallel grooves. The structure is soft and has a slightly curved shape. It conveys a sense of flexibility.
The image shows a structured, pink surface with parallel, slightly notched lines. These lines run in a regular pattern and create a tactile texture.
Mobile Preview: The image shows a rectangular, pink foam block with two smaller, square foam pieces next to it. There are two indentations on the large surface area.
Mobile Preview: The image shows a pink foam surface with fine, parallel grooves. The structure is soft and has a slightly curved shape. It conveys a sense of flexibility.
Mobile Preview: The image shows a structured, pink surface with parallel, slightly notched lines. These lines run in a regular pattern and create a tactile texture.
Notice / Inquire

Gridded foam dissipative 178x127x20 mm

dpvlink:
15724
Length :
178 mm
Width :
127 mm
Thickness :
20 mm
Properties:
Note:
Special thicknesses/cuttings, plates available on request
Further product information

chevron-down
1.80 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Gridded foam dissipative 178x127x20 mm

The offered grid foam is designed with dimensions of 178x127x20 mm and made from high-quality polyurethane, making it particularly durable and robust. It is characterized by its pink color and electrostatic dissipativity, which makes it compliant with the DIN EN 61340-5-1 standard.
This foam is specifically developed for the safe storage and transport of sensitive electronic components. The grid perforation of 15x15 mm allows for flexible adaptation to various shapes and sizes of the elements to be protected.
The technical specifications include an operating temperature range of -10 to 100 °C and a self-ignition temperature of 400 °C. The decomposition temperature of the material is 180 °C. With proper storage, the material guarantees a durability of up to 2 years.
Thanks to its conductive capability, the foam offers reliable protection against static charges and contributes to the safety and preservation of the electronic components.
Length
Length
178 mm
Width
Width
127 mm
Thickness
Thickness
20 mm
Color
Color
rose
Conductivity
Conductivity
dissipative
Material
Material
polyurethane
recyclable
recyclable
no
Recycling rate material
Recycling rate material
no / 0 %
Shelf life (from production date)
Shelf life (from production date)
2 years , when stored properly
Auto-ignition temperature
Auto-ignition temperature
400 °C
Decomposition temperature
Decomposition temperature
180 °C
Operating temperature
Operating temperature
-10 - 100 °C
Special thicknesses/cuttings, plates available on request
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.

Login or register now

Catalogues

EPApack® ESD packaging solutions

Product Family

PU gridded foam dissipative, soft, smooth

This gridded foam is electrostatically dissipative ans suitable for the use in shipping boxes and as upholstery foam. It has a 15x15 mm grid punching, which enables flexible adaptation to different component sizes. The raster foam is characterized by the following properties:

  • pink
  • polyurethane
  • grid 15x15 mm
  • smooth, soft, open-cell
  • Operating temperature: -10 to 100 °C
  • Auto-ignition temperature: 400 °C
  • Decomposition temperature: 180 °C
  • in compliance with the ESD standard DIN EN 61340-5-1


The gridded foam of this product family differs in terms of size


Article image
Article description
ESD
Length
Width
Thickness
Price
Compare
4903.0.20.R15 - Gridded foam dissipative 178x127x20 mm
4903.0.20.R15
Gridded foam dissipative 178x127x20 mm
178 mm
127 mm
20 mm
1.80 CHF
4904.0.20.R15 - Gridded foam dissipative 250x191x20 mm
4904.0.20.R15
Gridded foam dissipative 250x191x20 mm
250 mm
191 mm
20 mm
2.95 CHF
