Vacuum packaging machines

ESD-sensitive components (ESDS) must be protected from moisture and oxidation in order to prevent malfunctions or complete failure of end products. Vacuum packaging machines package electronic components securely by reliably sealing and vacuuming them in special packaging bags.

The vacuum packaging machines are compatible with our EPApack film bags. All metallized / shielding bags can be vacuum-packed and sealed.

A distinction is made between vacuum packaging machines with and without a chamber:

In vacuum packaging machines with a chamber, the air is sucked out of the chamber and bag to create a uniform vacuum. The sealing inside the chamber ensures a precise and reliable seal. The advantages of these machines are that no compressed air supply is required and several bags can be sealed at the same time.
Optionally, the machines can be upgraded with a second sealing bar, which increases productivity and is ideal for efficient packaging of large batches.

With vacuum packaging machines without a chamber, the air is drawn directly out of the bag via an ejector vacuum pump.
The advantages are that the machines are more compact, lighter and space-saving. In addition, the machines are easy to operate and well suited for small batches.

The image shows an electric plate with digital controls. It has a large, flat surface and a movable upper part that can be pressed down.
Preview: The image shows an electric plate with digital controls. It has a large, flat surface and a movable upper part that can be pressed down.
Preview: The image shows an electric vacuum packaging machine. It has a rectangular work surface, digital controls on the top, and a large, flat lid.
Preview: The image shows a sealing machine. It has a large, flat working surface and an upper flap with controls. The machine appears sturdy and is designed for sealing materials.
Vacuum packaging machines without chamber
Vacuum packaging machine type VS450E-D
Length : 660 mm / Width : 380 mm / Height : 250 mm / Max. bag width: 400 mm / Sealing bar length: 450 mm
Vacuum packaging machine type VS450E-D
Length : 660 mm / Width : 510 mm / Height : 250 mm / Max. bag width: 400 mm / Sealing bar length: 450 mm / Compressed air supply: 6.5 bar
Vacuum packaging machine type VS600E-D
Length : 700 mm / Width : 460 mm / Height : 260 mm / Max. bag width: 590 mm / Sealing bar length: 600 mm / Compressed air supply: 6.5 bar
Vacuum packaging machine type VS800E-D
Length : 735 mm / Width : 846 mm / Height : 276 mm / Max. bag width: 790 mm / Sealing bar length: 800 mm / Compressed air supply: 6.5 bar

4 Products
Product No.: 3420.450.M
from 4,232.80 CHF
excl. 8.1% tax
to the product family
The image shows a square, silver vacuum sealer with a removable, foldable lid. A digital control with buttons and a display is located on the front. The device is mounted on rollers.
Preview: The image shows a kitchen appliance, a vacuum sealer. It has a rectangular, metallic casing with a transparent lid. On the front, there are controls and a digital display.
Preview: The image shows a silver vacuum sealing machine with a rectangular container and a lid that opens on the top. On the front, there is a control panel with buttons and a display.
Preview: The image shows a square, silver vacuum sealer with a removable, foldable lid. A digital control with buttons and a display is located on the front. The device is mounted on rollers.
Vacuum packaging machines with chambers
ESD-protective
EPA®vacuboy ESD Vacuum packaging machine
ESD / Width : 410 mm / Depth : 500 mm / Height : 360 - 760 mm / Max. bag size: 350 x 400 mm / Sealing length: 350 mm / Power: 700 W / Pump capacity per hour: 10 m³
EPA®plusVac20 ESD vacuum packaging machine
ESD / Width : 480 mm / Depth : 655 mm / Height : 385 - 920 mm / Max. bag size: 400 x 500 mm / Sealing length: 405 mm / Power: 1100 W / Pump capacity per hour: 21 m³
EPA®plusVac24 ESD Vacuum packaging machine
ESD / Width : 710 mm / Depth : 665 mm / Height : 1010 - 1500 mm / Max. bag size: 450 x 600 mm / Sealing length: 455 mm / Power: 1900 W / Pump capacity per hour: 60 m³

3 Products
Product No.: 3430.040.ESD
from 6,236.10 CHF
excl. 8.1% tax
to the product family
Preview: Image
Preview: Image

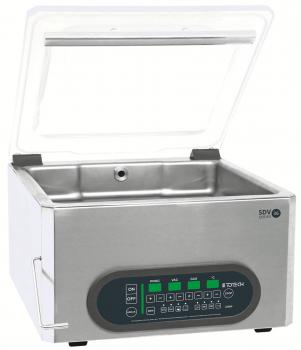

Vacuum packaging machine SDV-36
ESD-protective
Vacuum packaging machine SDV-36
Internal width: 460 mm / Internal height: 210 mm / Sealing length: 420 mm / Pump capacity per hour: 16 m³
Vacuum packaging machine SDV-36 ESD
ESD / Internal width: 460 mm / Internal height: 210 mm / Sealing length: 420 mm / Pump capacity per hour: 16 m³
Vacuum packaging machine SDV-36 ESD incl. nitrogen unit
ESD / Internal width: 460 mm / Internal height: 210 mm / Sealing length: 420 mm / Pump capacity per hour: 16 m³
Vacuum packaging machine SDV-36 Basic
Internal width: 460 mm / Internal height: 210 mm / Sealing length: 420 mm / Pump capacity per hour: 16 m³
Vacuum packaging machine SDV-36 Basic ESD
ESD / Internal width: 460 mm / Internal height: 210 mm / Sealing length: 420 mm / Pump capacity per hour: 16 m³
Vacuum packaging machine SDV-36 Basic ESD incl. nitrogen unit
ESD / Internal width: 460 mm / Internal height: 210 mm / Sealing length: 420 mm / Pump capacity per hour: 16 m³

6 Products
Product No.: TO-SDV-36
Price on request
to the product family
Preview: Image
Preview: Image

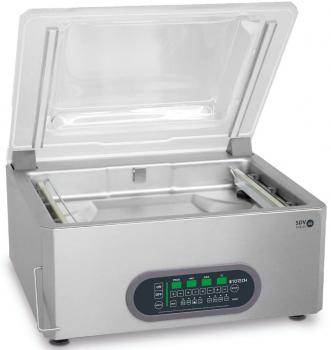

Vacuum packaging machine SDV-46
ESD-protective
Vacuum packaging machine SDV-46
Internal width: 475 mm / Internal height: 210 mm / Sealing length: 450 mm / Pump capacity per hour: 21 m³
Vacuum packaging machine SDV-46 ESD
ESD / Internal width: 475 mm / Internal height: 210 mm / Sealing length: 460 mm / Pump capacity per hour: 21 m³
Vacuum packaging machine SDV-46 ESD incl. nitrogen unit
ESD / Internal width: 475 mm / Internal height: 210 mm / Sealing length: 460 mm / Pump capacity per hour: 21 m³
Vacuum packaging machine SDV-46 Basic
Internal width: 475 mm / Internal height: 210 mm / Sealing length: 460 mm / Pump capacity per hour: 16 m³
Vacuum packaging machine SDV-46 Basic ESD
ESD / Internal width: 475 mm / Internal height: 210 mm / Sealing length: 460 mm / Pump capacity per hour: 16 m³
Vacuum packaging machine SDV-46 Basic ESD incl. nitrogen unit
ESD / Internal width: 475 mm / Internal height: 210 mm / Sealing length: 460 mm / Pump capacity per hour: 16 m³

6 Products
Product No.: TO-SDV-46
Price on request
to the product family
Vacuum packaging machine SDV-700
ESD
Vacuum packaging machine SDV-700 ESD
External dimensions: 970 x 1070 x 870 mm
Inner dimensions: 850 x 225 x 615 mm
Sealing length: 520 mm & 760 mm
Vacuum pump: 63 m3/h ; Weight: 234 kg
with Z4000-4 (sensor control)

Power connection: 1 phase, 230 / 400 V, 50 Hz

Options:

Nitrogen unit (protection gas)

Product No.: TO-SDV-700.ESD
Price on request
Show product
1 to 5 (from a total of 5)
