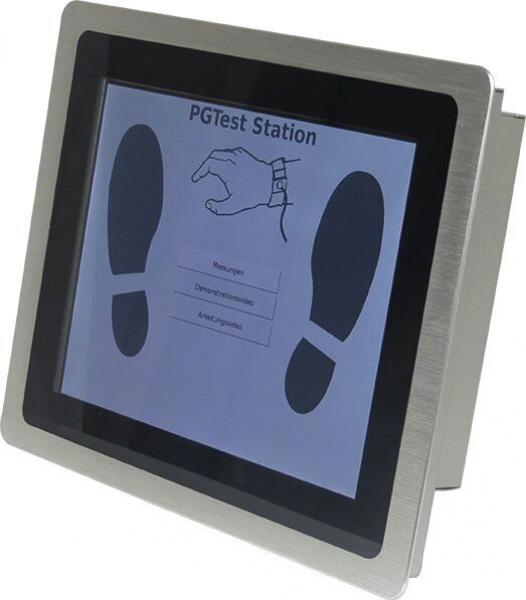

Touch Screen Monitor TC18 incl. DATA Terminal
The Touch Screen Monitor TC18 including DATA Terminal combines high functionality with modern technology in a sturdy aluminum case. This device features a 10-inch capacitive touchscreen and is equipped with an integrated MiniPC that has an RJ45 LAN connection and four USB2.0 ports. Additionally, there is a COM RS232 data port available, which can be used for specific applications like PGT120.COM.
The power supply is via AC 100-240 V at 50-60Hz or DC 12V/5A, allowing flexible use in various environments. With dimensions of 288 x 231 x 58 mm and options for front panel installation as well as VESA-compatible mounting options (75x75mm / 100x100mm), the monitor is easy to integrate.
Included in the delivery are the touch PC, an EU power cord, a power supply, four mounting brackets, and a quick start guide, which makes it easy to get started. This device is ideal for technical applications where reliability and user-friendliness are paramount.
Features:
- 10 inch capacitive touchscreen
- with integrated MiniPC (DATATerminal)
- RJ45 LAN connection
- 4 x USB2.0
- 1 x COM RS232
(Data port for PGT120.COM) - AC 100-240 V 50-60Hz / DC 12V/5A
- Case: Aluminum, silver
- Dimensions: 288 x 231 x 58 mm
- Mounting:
Front panel installation and mounting for VESA 75x75mm / 100x100mm
Included in delivery:
- 1 x Touch-PC
- 1 x EU power cord
- 1 x Power supply
- 4 x Mounting brackets
- 1 x Quick start guide
Details
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
