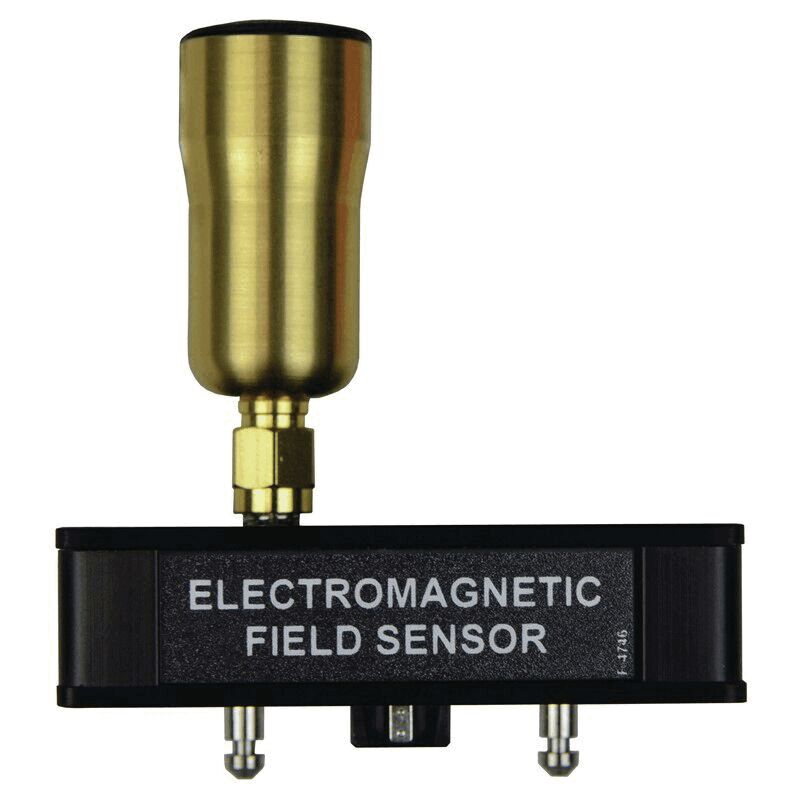

The image displays an electromagnetic field sensor. It has a black base labeled "ELECTROMAGNETIC FIELD SENSOR" and a golden, round antenna on top.
EMI Sensor for EM EYE METER
(Product No.: 3M-CTC28)
The image displays an electromagnetic field sensor. It has a black base labeled "ELECTROMAGNETIC FIELD SENSOR" and a golden, round antenna on top.
Notice / Inquire

EMI Sensor for EM EYE METER

dpvlink:
15219
Properties:
Further product information

1,330.95 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

EMI Sensor for EM EYE METER

The EMI sensor module, developed by Desco, is specifically designed for the EM EYE METER, a portable device for monitoring electromagnetic, electrostatic, and radio frequency fields. This module enhances the EM EYE Meter with the capability to detect and measure high-frequency electric fields through a miniaturized directional antenna. It records both single and average values and is exclusively compatible with the ESD sensor version of the device (3M-CTM048).

Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.

Login or register now

Product Family

EM EYE Meter

An EM Eye Meter is a portable measuring device used to monitor and analyze electromagnetic fields (EMF), electrostatic fields and radio frequencies (RF). It helps to minimize ESD risks, ensure compliance with safety standards and identify sources of interference in electronic devices. The device is versatile and can be used in electronics manufacturing, maintenance, research and IT to ensure a safe and interference-free working environment. With additional optional attachments (sensors), the EYE-Meter becomes a portable detector for the detection of ESD events (discharges) and electromagnetic fields.

  • Detection, measurement and counting of ESD events that cause faults and damage components power slide switch
  • Calculation of the event size for the Charged Device Model (CDM), the Human Body Model (HBM) and the Machine Model (MM)
  • Power slide switch to save power from the rechargeable lithium-ion battery during storage (item no. 770715)
  • Storage of all measurements on microSD card for downloading to PC for further processing or archiving
  • Intuitive operation thanks to touchscreen display

Sensor types

ESD sensor module

The EM EYE Meter is able to detect ESD events according to the discharge models CMD, MM, HBM, or Raw Input.

Measurement of

  • maximum voltage
  • average values
  • threshold values setting
  • voltage of each ESD event
  • Event counter
  • Raw input mode to record and evaluate the measured voltages for later analysis

Properties

  • Modular construction
  • Touch screen with modern user interface TFT 240x320px
  • Speaker and headphone output
  • Selection of remote and local antennas
  • Time display, hold function
  • Data recording event-related or in selectable intervals
  • Data logging by using a standard microSD card
  • Data table display also on the monitor of the instrument
  • Frequency range 1 MHz to 2.5 GHz
  • Lithium ion rechargeable battery with charger or power supply operation

Specifications

  • Dimensions W 65 x H 32 x L 105 mm
  • Data acquisition interval:
    Peak values: 1 – 360 s
    average values: 0.1 – 360 s
  • Operation temperature: 10-40 C
  • head set plug: 3.5 mm
  • Antenna/cable connection:
    reversible SMA

- further information available on request -
