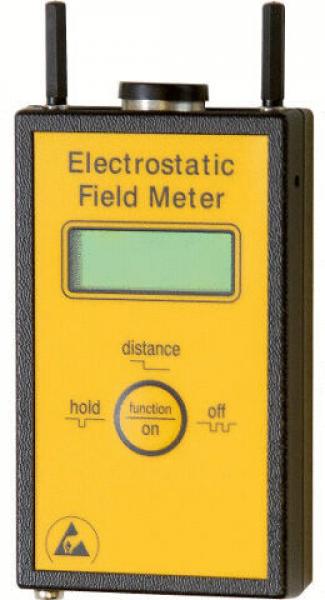

The image shows an electrostatic measuring device. It has a yellow casing with a digital display and buttons to control functions like "hold" and "on/off". Two antennas are on top.
Electrostatic field meter EFM® 51 including bag
(Product No.: 7100.EFM51)
The image shows an electrostatic measuring device. It has a yellow casing with a digital display and buttons to control functions like "hold" and "on/off". Two antennas are on top.
Notice / Inquire

Electrostatic field meter EFM® 51 including bag

dpvlink:
19758
Further product information

868.15 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Electrostatic field meter EFM® 51 including bag

The EFM®51 is a portable, handy electrostatic field meter with a digital display, specifically designed for measuring electrostatic fields and charges. It is characterized by its ability to automatically convert the measured field strength (V/m) in the "distance" mode into the surface potential (V). The additional "E-Field Mode" displays the actual field strength (V/m). The device measures up to ±160kV in "distance" mode and up to 800 kV/m in "E-Field" mode.
The dimensions of the EFM®51 are 70 mm in width, 26 mm in height, and 122 mm in length, with a weight of 130 g. It operates on the principle of influence and features a 2-line LCD display. The electrostatic field meter is powered by a 9V block battery. Included in the delivery are a grounding cable, two 2 cm measuring spacers, a multilingual instruction manual, and a factory calibration certificate. The recommended calibration interval is 12 months or according to the testing equipment list.
Measuring range
Measuring range
0 - 160 kV
Recommended calibration interval
Recommended calibration interval
12 months bzw. according to test equipment list
Height
Height
26 mm
Length
Length
122 mm
Width
Width
70 mm
Weight
Weight
130 g
Show accessories
Accessories

Accessories

The image shows an open, black suitcase with various tools and devices. Inside, there are two yellow devices, a metal part, and cables, all neatly arranged.
EFM®51 Verification Kit
EFM 51 - Verification Kit, comprising:
Electric field meter EFM51 with measuring head
MK51, measuring lines, charge plate set,
conductive support and conductive suitcase,
user manual and factory calibration certificate

serial number:
dpvlink
21679

1,563.65 CHF
Show product
The image displays a calibration certificate. It includes information on accreditation, test data, and the calibration date. The phrase "DAkkS Calibration" is highlighted in green.
DAkkS/DKD Calibration for Charged Plate Set...
DAkkS/DKD calibration HV Charger for EFM 51
incl. certificate

- without EFM 51 DAkkS calibration -
dpvlink
26315

Price on request
Show product
The image displays a calibration certificate with details about an electronic device and a graphic of an electrostatic field meter. At the bottom left, a green quality seal is depicted.
Calibration for electrostatic field meter...
Calibration EFM 51, incl. certificate
dpvlink
26315

Price on request
Show product
The image displays a calibration certificate. It includes information on accreditation, test data, and the calibration date. The phrase "DAkkS Calibration" is highlighted in green.
DAkkS/DKD Calibration for electrostatic field...
DAkkS/DKD calibration EFM 51, incl. Certificate
dpvlink
26315

Price on request
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 212
Complete Catalog 2023 - 2024

Product Family

Electrostatic field meter EFM® 51

Mobile, handy electrostatic field meter with digital display for measurement of electrostatic fields and electrostatic charges. The measured field strength (V/m) is automatically converted in the mode of 'distance' by the set measuring distance in the surface potential (V). The actual field strength (V/m) will be shown in the additional "E-field" mode.

  • Measuring range: 0 to ± 160kV (mode "distance")
    0 to 800 kV/m (mode "E-Field")
  • Measurement type: induction principle (principle of field mill)
  • Display: 2 line LCD display
  • Operating mode: battery operation
  • Scope of delivery: grounding line including factory calibration certificate, user manual (German/English)

Article image
Article description
ESD
Measuring range
Recommended calibration interval
Height
Length
Width
Weight
Price
Compare
7100.EFM51 - Electrostatic field meter EFM® 51 including bag
7100.EFM51
Electrostatic field meter EFM® 51 including bag
0 - 160 kV
12 months bzw. according to test equipment list
26 mm
122 mm
70 mm
130 g
868.15 CHF
