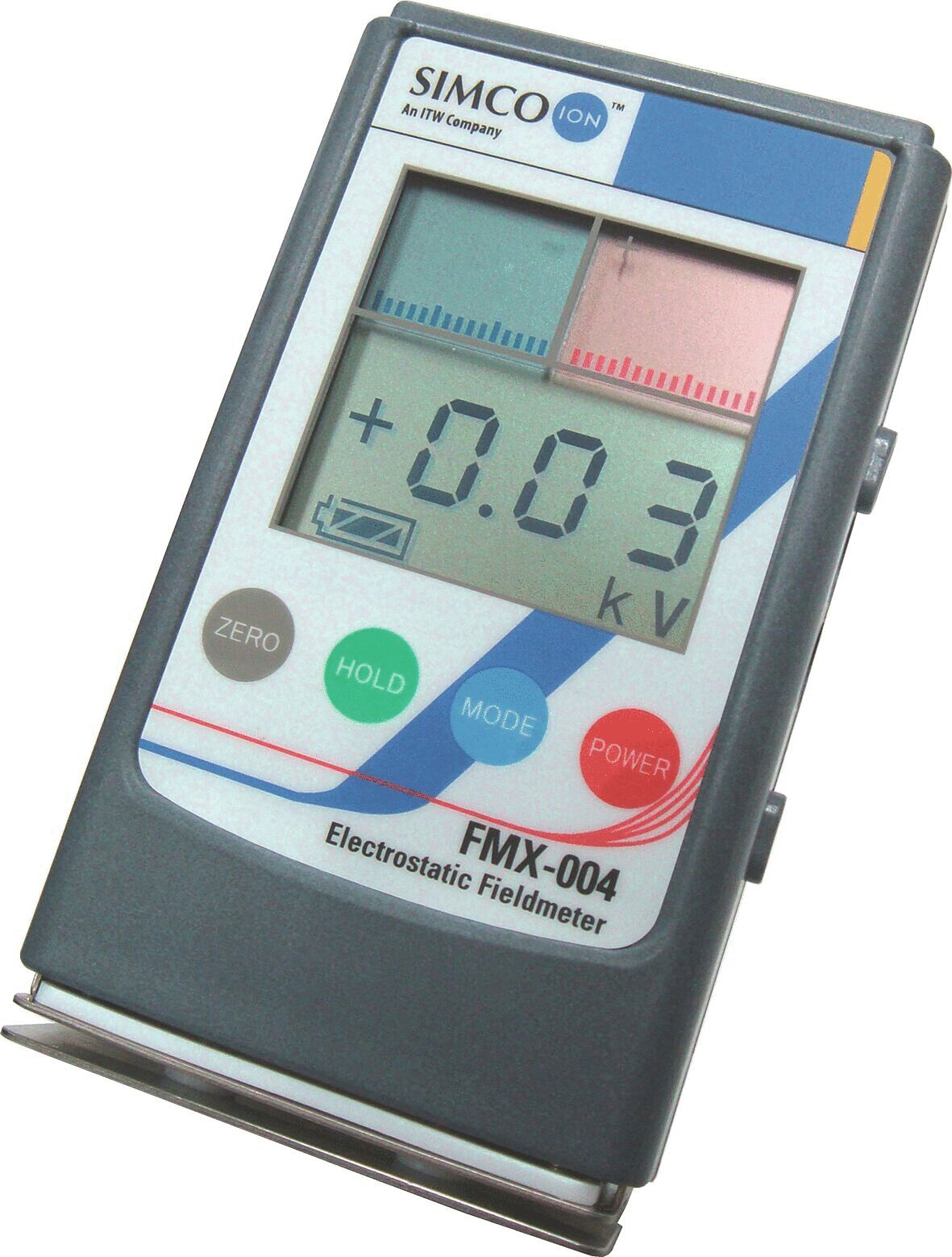

The image shows a handy device for measuring electric fields. It features a large digital display with numbers and buttons in various colors. The casing is black with blue, red, and green details.
RF meter FMX-004
(Product No.: 7500.FMX004)
The image shows a handy device for measuring electric fields. It features a large digital display with numbers and buttons in various colors. The casing is black with blue, red, and green details.
Notice / Inquire

RF meter FMX-004

dpvlink:
18326
Further product information

1,334.75 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

RF meter FMX-004

The FMX 004 field strength meter from Simco combines functionality and user-friendliness in a compact design. This device is ideal for locating and measuring electrostatic charges, with a measurement range from 0 kV to ±30.0 kV, including a special ion balance range from -220 V to +220 V. Ease of operation is ensured by four easy-to-handle buttons and a clear display that offers both digital and bar graph options.
The device is distinguished by its precision, supported by an automatic distance display and LEDs that facilitate compliance with the correct measuring distance of 25 mm ± 0.5 mm. The response time of less than one second and the automatic shut-off after five minutes contribute to efficiency. The robust housing made of conductive plastic (ABS) and a weight of only 170 g, including the 9 V alkaline battery, make the device extremely handy.
The package includes a carrying case, a grounding cable, and an adapter for ion balance. A calibration certificate confirms the precision of the device, which is recommended to be calibrated every 12 months or as per the testing equipment list. Ideal for use in a temperature range from 10 - 40 °C, this field strength meter provides a reliable solution for professionals in the industry.
Measuring range
Measuring range
0 - 30 kV
Recommended calibration interval
Recommended calibration interval
12 months bzw. according to test equipment list
Operating temperature
Operating temperature
10 - 40 °C
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

RF meter FMX-004

The FMX-004 fieldmeter is a compact electrostatic fieldmeter used for locating and measuring static charges. Its pocket size and three-button operation makes it convenient and easy to use.

  • Lightweight, compact design
  • Range light assures accurate and repeatable measurements
  • Automatic range switching up to ± 30kV (30.000V)
  • Digital and bar graph display with +/- indicators
  • Automatic power off with inactivity

Technical data

Measurement range:

0 kV bis ± 1,49 kV (LO-area)
± 1,0 kV bis ± 30,0 kV (HI-area)
-220 V - +220 V (Ions balance)

Distance indicator:

25 mm ± 0,5 mm (LEDs support the compliance of the correct distance)

Response time:

<1s

Operating temperature:

Operates in temperature range 10 - 40 °C

Battery:

9 V Alkali battery

Housing:

Conductive plastic (ABS)

Weight:

170 g (inkl. battery)
