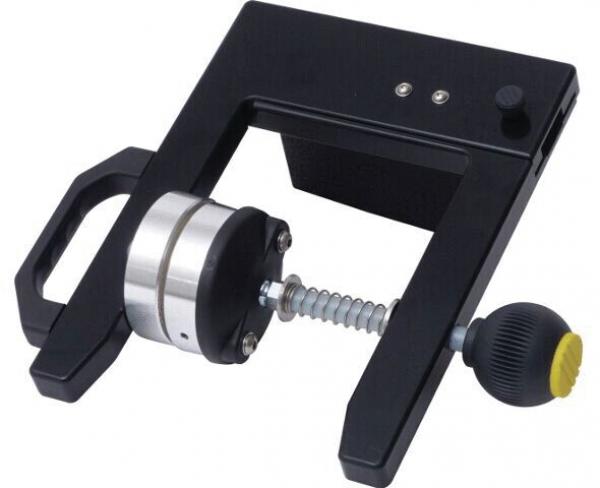

The image displays a black device with a textured grip and a round push element. It features an adjustment screw and a spring mechanism that ensures precision.
Backrest probe
(Product No.: 7220.900)
The image displays a black device with a textured grip and a round push element. It features an adjustment screw and a spring mechanism that ensures precision.
Notice / Inquire

Backrest probe

dpvlink:
19739
Further product information

751.00 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Backrest probe

The backrest electrode is specifically designed for resistance measurement on ESD chairs and offers a resistance of less than 5 Ohms due to its conductive contact rubber with silver particles. This highly functional measuring instrument has a diameter of 63.5 mm and ensures safe handling during measurements with its insulated handle. Additionally, the electrode is equipped with a 4 mm banana plug socket, enabling easy connection to measuring devices.
The dimensions of the backrest electrode are a width of 290 to 330 mm and a height of 255 mm, with a weight of 1.4 kg. The total resistance per electrode remains under 100 Ohms, ensuring precise measurement results. These technical specifications make the backrest electrode an indispensable tool for checking the electrostatic properties of office chairs in sensitive work environments.
Height
Height
255 mm
Ø
Ø
63.5 mm
Width
Width
290 - 330 mm
Weight
Weight
1.4 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 210
Complete Catalog 2023 - 2024

Product Family

Backrest probe

Article image
Article description
ESD
Height
Ø
Width
Weight
Price
Compare
7220.900 - Backrest probe
7220.900
Backrest probe
255 mm
63.5 mm
290 - 330 mm
1.4 kg
751.00 CHF
