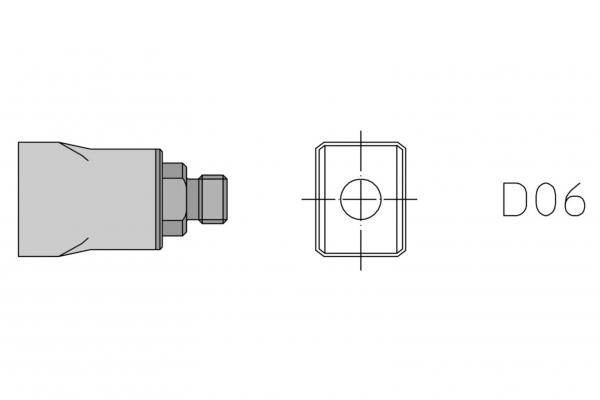

The image displays a technical drawing of an object. On the left, there is a side view featuring a narrow, rectangular body with a threaded eyelet. On the right, the top view is shown, which is square with a central hole. To the right of the object, the label "D06" is indicated.
D06 Hot air nozzle for HAP 1, WXHAP 200
(Product No.: 587.277.82)
The image displays a technical drawing of an object. On the left, there is a side view featuring a narrow, rectangular body with a threaded eyelet. On the right, the top view is shown, which is square with a central hole. To the right of the object, the label "D06" is indicated.
Notice / Inquire

D06 Hot air nozzle for HAP 1, WXHAP 200

dpvlink:
4255
Further product information

103.20 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

D06 Hot air nozzle for HAP 1, WXHAP 200

The D06 hot air nozzle from Weller is specifically designed for use with the HAP 1 and WXHAP 200 hot air pencils. It features dual-sided heating and an integrated preheating plate, ensuring efficient heat transfer. The nozzle has a width of 10 mm and a length of 13 mm, allowing for precise application in various work environments. This product is excellent for technical applications where accurate temperature control is required. Ideal for professional use, the D06 hot air nozzle offers high performance and reliability.
Length
Length
13 mm
Width
Width
10 mm
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 601
Complete Catalog 2023 - 2024

Product Family

Hot air nozzles for HAP 1, WXHAP 200

Hot air nozzles in different versions for hot air soldering irons HAP 1 and WXHAP 200


Article image
Article description
ESD
Diameter in mm
Width
Length
Height
Price
Compare
587.277.72 - F06 flat nozzle for HAP 1, WXHAP 200
587.277.72
F06 flat nozzle for HAP 1, WXHAP 200
1.5 mm
12 mm


45.25 CHF
587.277.73 - F04 flat nozzle for HAP 1, WXHAP 200
587.277.73
F04 flat nozzle for HAP 1, WXHAP 200
1.5 mm
10,5 mm


43.20 CHF
587.277.74 - F02 flat nozzle for HAP 1, WXHAP 200
587.277.74
F02 flat nozzle for HAP 1, WXHAP 200
1.5 mm
8.0 mm


43.20 CHF
587.277.87 - R10 round nozzle for HAP 1, WXHAP 200
587.277.87
R10 round nozzle for HAP 1, WXHAP 200
2.0 mm

50 mm

43.20 CHF
587.277.86 - R08 round nozzle, bent for HAP 1, WXHAP 200
587.277.86
R08 round nozzle, bent for HAP 1, WXHAP 200
2.5 mm

50 mm

58.95 CHF
587.278.22 - R06 round nozzle for HAP 1, WXHAP 200
587.278.22
R06 round nozzle for HAP 1, WXHAP 200
3.0 mm

17 mm

5.90 CHF
587.278.21 - R04 round nozzle for HAP 1, WXHAP 200
587.278.21
R04 round nozzle for HAP 1, WXHAP 200
1.2 mm



5.90 CHF
587.278.23 - R02 round nozzle for HAP 1, WXHAP 200
587.278.23
R02 round nozzle for HAP 1, WXHAP 200
0.8 mm

17 mm

7.90 CHF
587.277.75 - FD4 dual nozzle for HAP 1, WXHAP 200
587.277.75
FD4 dual nozzle for HAP 1, WXHAP 200
1.5 mm



53.70 CHF
587.277.76 - FD2 dual nozzle for HAP 1, WXHAP 200
587.277.76
FD2 dual nozzle for HAP 1, WXHAP 200
1.5 mm



45.25 CHF
587.277.85 - Q10 hot air nozzle for HAP 1, WXHAP 200
587.277.85
Q10 hot air nozzle for HAP 1, WXHAP 200

18 mm
18 mm

115.85 CHF
587.277.83 - Q08 hot air nozzle for HAP 1, WXHAP 200
587.277.83
Q08 hot air nozzle for HAP 1, WXHAP 200

15 mm
12.5 mm

103.20 CHF
587.277.80 - Q06 Hot air nozzle 4-fold for HAP 1, WXHAP 200
587.277.80
Q06 Hot air nozzle 4-fold for HAP 1, WXHAP 200

10 mm

15 mm
103.20 CHF
587.277.78 - Q04 Hot air nozzle for HAP 1, WXHAP 200
587.277.78
Q04 Hot air nozzle for HAP 1, WXHAP 200

6 mm
9 mm

43.20 CHF
587.277.77 - Q02 Hot air nozzle for HAP 1, WXHAP 200
587.277.77
Q02 Hot air nozzle for HAP 1, WXHAP 200

5 mm
6,0 mm

43.20 CHF
587.277.84 - D10 Hot air nozzle for HAP 1, WXHAP 200
587.277.84
D10 Hot air nozzle for HAP 1, WXHAP 200

10 mm

18 mm
103.20 CHF
587.277.81 - D08 Hot air nozzle 2-fold for HAP 1, WXHAP 200
587.277.81
D08 Hot air nozzle 2-fold for HAP 1, WXHAP 200

10 mm
15 mm

103.20 CHF
587.277.82 - D06 Hot air nozzle for HAP 1, WXHAP 200
587.277.82
D06 Hot air nozzle for HAP 1, WXHAP 200

10 mm
13 mm

103.20 CHF
587.277.79 - D04 hot air nozzle for HAP 1, WXHAP 200
587.277.79
D04 hot air nozzle for HAP 1, WXHAP 200

10,5 mm
10.5 mm

103.20 CHF
587.278.08 - R01 measuring nozzle for HAP 1, WXHAP 200
587.278.08
R01 measuring nozzle for HAP 1, WXHAP 200




101.10 CHF
