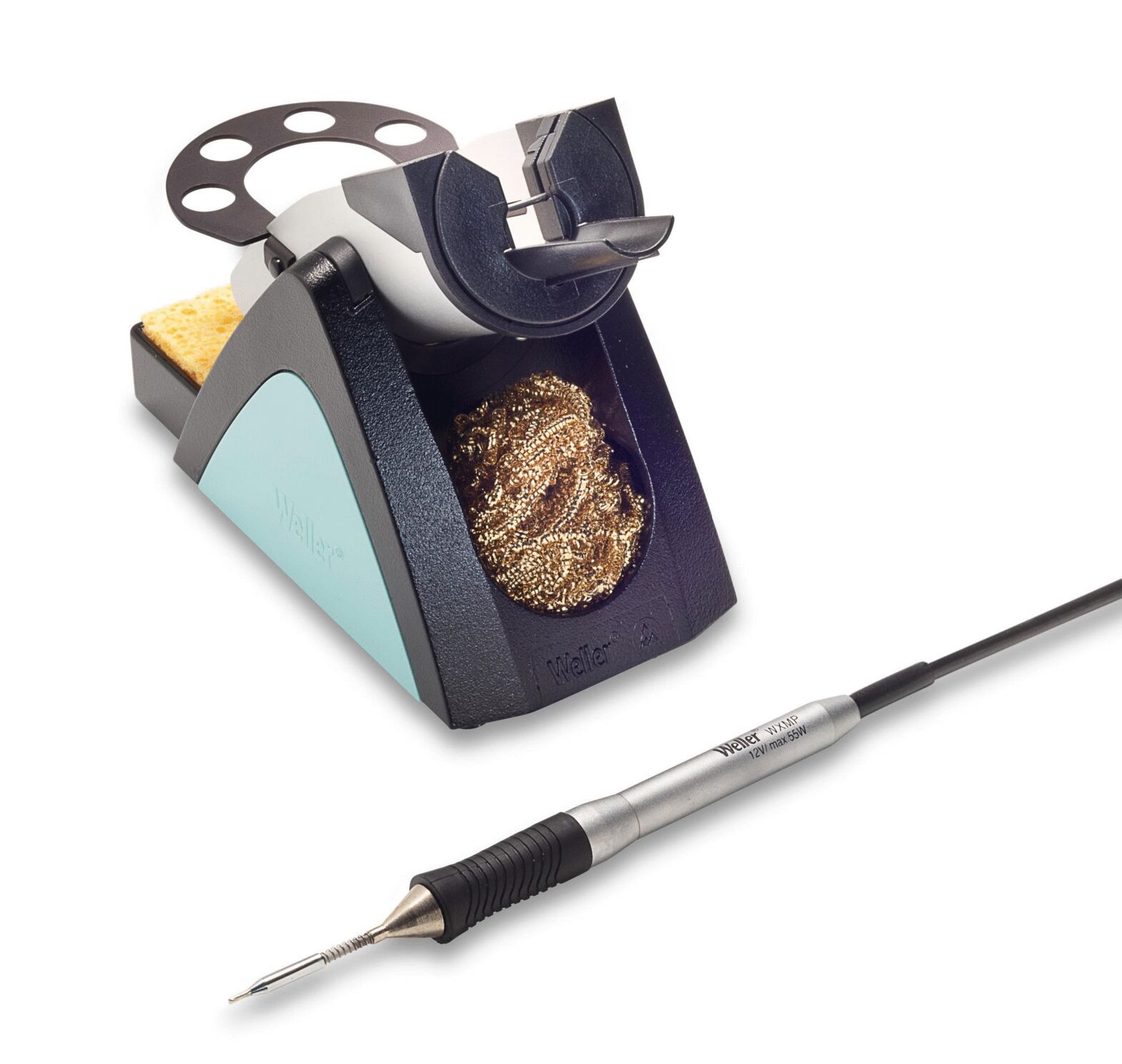

The image displays a soldering stand with a soldering tip. The stand is black with blue and yellow elements, containing a bronze-like cleaning coil. A cable extends from the soldering tip.
WXMP Soldering iron set
(Product No.: 529.204.99)
The image displays a soldering stand with a soldering tip. The stand is black with blue and yellow elements, containing a bronze-like cleaning coil. A cable extends from the soldering tip.
Notice / Inquire

WXMP Soldering iron set

dpvlink:
14818
Power:
40 W
Heating-up time:
5 s
suitable soldering tip series:
RTM
included soldering iron:
WXMP
Safety rest:
WSR 200
Properties:
Further product information

302.15 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WXMP Soldering iron set

The WXMP set from Weller offers a state-of-the-art solution for precise soldering, ideal for very small components with high energy demands. The soldering iron is characterized by a fast heat-up time of only 5 seconds and allows for efficient work thanks to a power of 40 W and an operating voltage of 12 V/DC.
The temperature range of the device is between 100 and 450 °C. Special features such as the active soldering tip for optimal heat transfer, a built-in parameter memory for standby temperatures and shutdown times, as well as ESD safety make this tool extremely user-friendly. The innovative Stop & Go function through the usage sensor contributes to cost efficiency by preserving the heating elements and soldering tips. Additionally, the cartridge system allows for the quick and tool-free exchange of the entire soldering tip even when hot.
The WXMP set is specifically designed for use with WX soldering stations and offers independent iron calibration, which simplifies handling and maintenance.



Contents:
Micro soldering iron WXMP 529.203.99
Soldering tip RT 3 544.603.99
Safety rest WSR 200 515.174.99

Power
Power
40 W
Heating-up time
Heating-up time
5 s
suitable soldering tip series
suitable soldering tip series
RTM
included soldering iron
included soldering iron
WXMP
Safety rest
Safety rest
WSR 200
Output voltage DC
Output voltage DC
12 V/DC
ESD
ESD
yes
Temperature range
Temperature range
100 - 450 °C
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a soldering iron with a narrow, pointed metal tip and a non-slip, black handle. The handle has a textured surface for better grip.
Soldering tip needle tip RTM 002 C
RT-1 / RTM 002 C soldering tip / needle tip
dpvlink
6882

28.45 CHF
Show product
The image displays a pen-like tool with a metallic tip and a non-slip, black rubberized grip. It features a point and a connection for a device.
Soldering tip pointed RTM 008 C
RT-2 / RTM 008 C soldering tip / round tip 0.8 mm
dpvlink
6884

28.45 CHF
Show product
The image displays a medical tool with a long, angled metal head and a grippy, black rubber handle. It appears precise and functional.
Soldering tip chisel-shaped bent 30° RTM...
RT 3XMY chisel tip 30° bent 1.3 x 0.5 mm
dpvlink
6889

50.55 CHF
Show product
The image shows a tool with a silver, conically shaped end and a rubberized, non-slip grip. It has a slender shape and a side blade.
Soldering tip chisel-shaped RTM 013 S
RT-3 / RTM 013 S soldering tip / chisel tip
1.3 x 0.4 mm
dpvlink
6886

28.45 CHF
Show product
The image shows a screwdriver with a non-slip, rubberized handle and a narrow, metallic blade. The handle surface has a wavy pattern for better grip.
Soldering tip chisel-shaped RTM 015 S
RT-4 / RTM 015 S soldering tip / chisel tip
1.5 x 0.4 mm
dpvlink
6886

28.45 CHF
Show product
The image displays a tool with a long, curved stainless steel head and a handle made from non-slip material. The handle has a textured surface for improved grip.
Soldering tip chisel-shaped bent 30° RTM...
RT-5/RTM 008 S X soldering tip / chisel tip
0.8 x 0.4 mm, bent
dpvlink
6889

28.45 CHF
Show product
The image shows a soldering iron with a long, pointed metal end and a rubberized, non-slip grip for better hold. The handle has a textured surface.
Soldering tip round sloped 45° RTM 012 B...
RT-6/RTM 012 B soldering tip / round
beveled 45 ° 1.2 mm
dpvlink
6891

28.45 CHF
Show product
The image shows a tool handle with a metallic attachment. The handle has a rubberized, non-slip surface and tapers towards the end. The attachment is pointed and flat.
Soldering tip blade tip sloped 45° RTM 030...
RT-7 / RTM 030 K soldering tip / blade tip
45 ° beveled, 2.8 mm
dpvlink
6893

28.45 CHF
Show product
The image shows a gray tool handle with a ridged rubber surface. At one end, there is a flat screwdriver. The handle is oval and ends in a point.
Soldering tip chisel-shaped RTM 022 S
RT-8 / RTM 022 S soldering tip / chisel tip
2.2 x 0.4 mm
dpvlink
6886

28.45 CHF
Show product
The image shows a tool that looks like a narrow pen. It has a rubberized grip with grooves for better hold and a pointed, metal working surface at the front.
Soldering tip chisel-shaped RTM 008 S
RT-9 /RTM 008 S soldering tip / chisel-shaped
0.8 x 0.4 mm
dpvlink
6886

28.45 CHF
Show product
The image shows a tool with a smooth, silver metal part and a dark gray, ridged rubber handle. It has a special shape with a narrow tip at the end.
Gullwing tip RTM 020 G
RT-10 GW /RTM 020 G Gullwing tip
dpvlink
8302

28.45 CHF
Show product
The image shows a screwdriver with a long, narrow metal tip and a rubberized, ergonomic handle. The handle has a textured surface for better grip.
Soldering tip chisel-shaped RTM 036 S
RT-11 / RTM 036 S soldering tip chisel-shaped
3.6 x 0.9 mm
dpvlink
6886

45.25 CHF
Show product
The image shows a writing instrument with a slender, metallic tip and a rubberized grip. The grip is black with grooves and the tip is pointed and silver.
Soldering tip chisel-shaped RTM 004 S
RT-1SC / RTM 004 S soldering tip / chisel tip
0.15 x 0.4 mm
dpvlink
6886

28.45 CHF
Show product
The image shows a tool with a rubberized, ridged handle and a metallic end. It has a long, narrow brass tip and is designed for precise tasks.
Measuring tip RTM 028 X
RT / RTM 028 X measuring tip
dpvlink
13771

37.90 CHF
Show product

Spares

The image shows a sleek, silver device with a smooth, cylindrical end and an attached black cable. It is a sensor or measuring instrument.
WXMP micro soldering iron handpiece
WXMP micro soldering iron handpiece, 24, 40 watts
dpvlink
14818

196.90 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 603
Complete Catalog 2023 - 2024

Product Family

WXMP Soldering iron

The WXMP micro soldering iron is a micro soldering iron with 40 W power, specially developed for precise work on fine SMD components and sensitive electronic components. The soldering iron is available as a single item or as a set with a matching soldering tip and safety rest.

  • For very small components with high energy requirements
  • For precise work under the microscope with very small components
  • Parameter memory in the iron, e.g. standby temperatures, automatic switch-off time
  • Reduction in consumption costs (heating element and soldering tips) thanks to usage sensor
  • Fast, tool-free soldering tip change of the RT soldering tips
  • Change of the entire soldering tip when the soldering iron is hot thanks to the active soldering tip (cartridge) system
  • Compatible with WX soldering stations
