PE foam, dissipative 253x153x3 mm
(Product No.: 4550.03.0153)
Notice / Inquire

PE foam, dissipative 253x153x3 mm

dpvlink:
700
Length :
253 mm
Width :
153 mm
Thickness :
3 mm
Properties:
Further product information

chevron-down
1.05 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

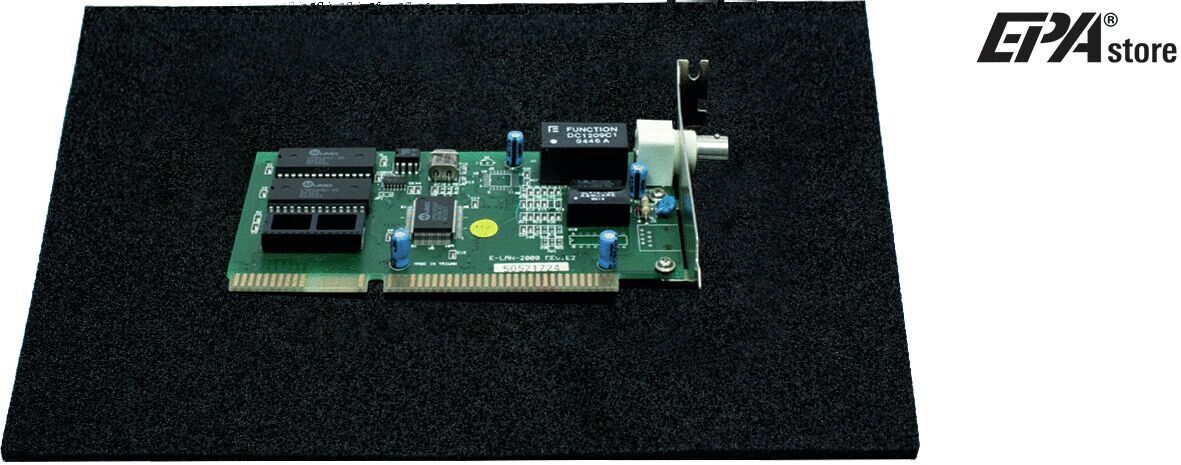

PE foam, dissipative 253x153x3 mm

The electrostatically conductive PE foam from EPAstore measures 253x153x3 mm and is coated on one side with a thin layer. This material is characterized by its cross-linking and closed-cell structure, making it corrosion-free and abrasion-resistant. The typical surface resistance is 10^5 - 10^6 Ohm on the coated side and 10^7 - 10^8 Ohm on the uncoated side, thus meeting the requirements of the ESD standard DIN EN 61340-5-1.
The black PE foam interlayers are versatile, including uses as plug-in foam, interlayers, and partition walls for containers, as well as work surface mats. They are available in standardized sizes as well as custom cuts.
The material is made of polyethylene with a density of 46 kg/cm³ and can be used at operating temperatures up to 90 °C. These properties make the PE foam an ideal solution for technical applications that require reliable conductivity and durability.
Length
Length
253 mm
Width
Width
153 mm
Thickness
Thickness
3 mm
Color
Color
black
Conductivity
Conductivity
dissipative
Volume resistance
Volume resistance
105 - 107 Ω
Material
Material
polyethylene
Material density
Material density
46 kg/cm³
Operating temperature
Operating temperature
up to 90 °C
Pictograms
Material PE
Abrasion-resistant and corrosion-free, particularly low weight, thickness 3 mm / 6 mm / 10 mm, electrostatically dissipative (suitable as intermediate layers and compartments for containers). Typical surface resistance: R = 10^5 –10^8 Ohm.
ESD-compliant
Customizable
Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.

Documents

Downloads

For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.

Login or register now

Product Family

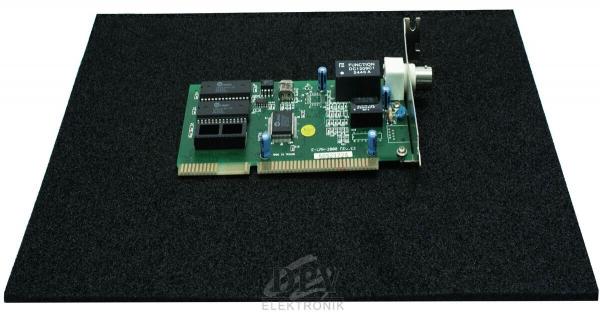

PE foam interlayers, dissipative

These PE foam interlayers are electrostatically dissipative. They are covered with a thin layer (skin) on one side. The PE foams are also suitable as interlayers for use in shipping, as workstation underlays and partition walls for containers.

The PE foam interlayers are characterized by the following properties:

  • cross-linked
  • closed-cell
  • corrosion-free
  • abrasion-resistant
  • black
  • typical surface resistance: 105 - 106 Ohm (side with skin)
  • typical surface resistance: 107 - 108 Ohm (side without skin)
  • in compliance with the ESD standard DIN EN 61340-5-1

The interlayers are available in predefined dimensions or as individual cuttings.



Configure interlayers now




Article image
Article description
ESD
Length
Width
Thickness
Price
Compare
4550.03.0153 - PE foam, dissipative 253x153x3 mm
4550.03.0153
PE foam, dissipative 253x153x3 mm
253 mm
153 mm
3 mm
1.05 CHF
4550.03.0253 - PE foam, dissipative 353x253x3 mm
4550.03.0253
PE foam, dissipative 353x253x3 mm
353 mm
253 mm
3 mm
1.95 CHF
4550.03.0255.KLT - PE foam, dissipative 340x255x3 mm
4550.03.0255.KLT
PE foam, dissipative 340x255x3 mm
340 mm
255 mm
3 mm
1.95 CHF
4550.03.0300 - PE foam, dissipative 300x300x3 mm
4550.03.0300
PE foam, dissipative 300x300x3 mm
300 mm
300 mm
3 mm
1.85 CHF
4550.03.0353 - PE foam, dissipative 553x353x3 mm
4550.03.0353
PE foam, dissipative 553x353x3 mm
553 mm
353 mm
3 mm
3.85 CHF
4550.03.0355.KLT - PE foam, dissipative 540x355x3 mm
4550.03.0355.KLT
PE foam, dissipative 540x355x3 mm
540 mm
355 mm
3 mm
3.85 CHF
4550.03.1000 - PE foam plate, dissipative 1000x1000x3 mm
4550.03.1000
PE foam plate, dissipative 1000x1000x3 mm
1000 mm
1000 mm
3 mm
9.45 CHF
4550.03.1500 - PE foam plate, dissipative 1000x1500x3 mm
4550.03.1500
PE foam plate, dissipative 1000x1500x3 mm
1500 mm
1000 mm
3 mm
14.00 CHF
4550.03.Z - PE foam, dissipative, cutting
4550.03.Z
PE foam, dissipative, cutting

Cutting mm
3 mm
-
4550.06.0153 - PE foam, dissipative 253x153x6 mm
4550.06.0153
PE foam, dissipative 253x153x6 mm
253 mm
153 mm
6 mm
1.25 CHF
4550.06.0253 - PE foam, dissipative 353x253x6 mm
4550.06.0253
PE foam, dissipative 353x253x6 mm
353 mm
253 mm
6 mm
2.60 CHF
4550.06.0255.KLT - PE foam, dissipative 340x255x6 mm
4550.06.0255.KLT
PE foam, dissipative 340x255x6 mm
340 mm
255 mm
6 mm
2.80 CHF
4550.06.0300 - PE foam, dissipative 300x300x6 mm
4550.06.0300
PE foam, dissipative 300x300x6 mm
300 mm
300 mm
6 mm
2.75 CHF
4550.06.0353 - PE foam, dissipative 553x353x6 mm
4550.06.0353
PE foam, dissipative 553x353x6 mm
553 mm
353 mm
6 mm
5.15 CHF
4550.06.0355.KLT - PE foam, dissipative 540x355x6 mm
4550.06.0355.KLT
PE foam, dissipative 540x355x6 mm
540 mm
355 mm
6 mm
5.65 CHF
4550.06.0550 - PE foam, dissipative 750x550x6 mm
4550.06.0550
PE foam, dissipative 750x550x6 mm
750 mm
550 mm
6 mm
13.90 CHF
4550.06.1000 - PE foam plate, dissipative 1000x1000x6 mm
4550.06.1000
PE foam plate, dissipative 1000x1000x6 mm
1000 mm
1000 mm
6 mm
19.70 CHF
4550.06.1500 - PE foam plate, dissipative 1000x1500x6 mm
4550.06.1500
PE foam plate, dissipative 1000x1500x6 mm
1500 mm
1000 mm
6 mm
31.35 CHF
4550.06.Z - PE foam, dissipative, cutting
4550.06.Z
PE foam, dissipative, cutting

Cutting mm
6 mm
-
4550.10.0253 - PE foam, dissipative 353x253x10 mm
4550.10.0253
PE foam, dissipative 353x253x10 mm
353 mm
253 mm
10 mm
4.00 CHF
4550.10.0255.KLT - PE foam, dissipative 340x255x10 mm
4550.10.0255.KLT
PE foam, dissipative 340x255x10 mm
340 mm
255 mm
10 mm
3.90 CHF
4550.10.0353 - PE foam, dissipative 553x353x10 mm
4550.10.0353
PE foam, dissipative 553x353x10 mm
553 mm
353 mm
10 mm
7.35 CHF
4550.10.0355.KLT - PE foam, dissipative 540x355x10 mm
4550.10.0355.KLT
PE foam, dissipative 540x355x10 mm
540 mm
355 mm
10 mm
7.80 CHF
4550.10.0550 - PE foam, dissipative 750x550x10 mm
4550.10.0550
PE foam, dissipative 750x550x10 mm
750 mm
550 mm
10 mm
18.10 CHF
4550.10.1000 - PE foam plate, dissipative 1000x1000x10 mm
4550.10.1000
PE foam plate, dissipative 1000x1000x10 mm
1000 mm
1000 mm
10 mm
25.15 CHF
4550.10.1500 - PE foam plate, dissipative 1000x1500x10 mm
4550.10.1500
PE foam plate, dissipative 1000x1500x10 mm
1500 mm
1000 mm
10 mm
37.15 CHF
4550.10.Z - PE foam, dissipative, cutting
4550.10.Z
PE foam, dissipative, cutting

Cutting mm
10 mm
-
