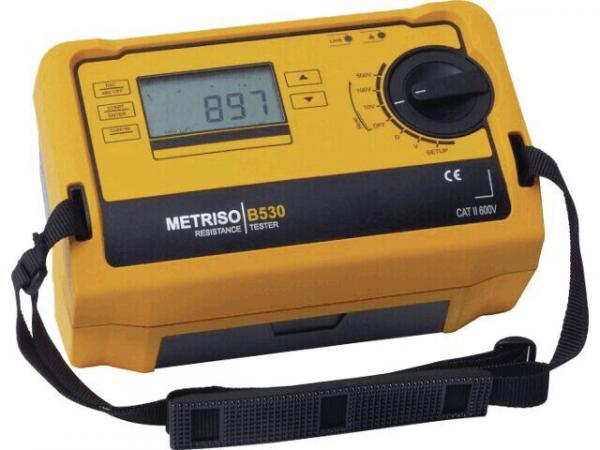

Metriso® B530 Basic test kit

The METRISO® B530 Basic is a precise digital measuring device for determining point-to-point resistances and leakage resistances in ESD-protected areas. It is particularly suitable for testing system resistances, shoes and grounding systems. The Metriso B530 is available as a stand-alone device and as a measuring kit with an 870 or 850 electrode.

  • Suitable for measuring point-to-point resistances and bleeder resistances as well as the human/shoe/ground system resistance
  • Measured value display digital or analog, as bar graph or pointer
  • Low-ohm measuring range for checking grounding measures
  • Measuring kit:
    • Visual signaling of the voltage measurement range with LED (red and green)
    • External voltage detection with red LED
    • Electrodes 850 or 870 and hand electrode 45

Technical data:

Measuring voltage:

10 V, 100 V, 500 V DC

Resistance range:

1 kΩ to 199GΩ (high-impedance range)

1 Ω to 10 kΩ (low-impedance range)

Electrodes (measuring kit):

2x model 850 or 2x 870

1x hand electrode model 45

Operating mode:

battery operation

Dimensions (WxHxD):

225 x 130 x 140 mm

Weight:

1.4 kg (single device)

9 kg (complete kit)

Article image
Article description
Recommended calibration interval
Height
Length
Width
Weight
Price
Compare
7100.B530.MK.850 - Metriso B530 Basic test kit, complete with measurement electrodes type 850
7100.B530.MK.850
Metriso B530 Basic test kit, complete with measurement electrodes type 850
24 months bzw. according to test equipment list
130 mm
140 mm
225 mm
9 kg
1,596.90 CHF
7100.B530.G - Metriso B530 Basic meter single
7100.B530.G
Metriso B530 Basic meter single
24 months bzw. according to test equipment list
130 mm
140 mm
225 mm

1,078.55 CHF
7100.B530.MK - Metriso B530 Basic test kit, complete with measuring electrodes type 870
7100.B530.MK
Metriso B530 Basic test kit, complete with measuring electrodes type 870
24 months bzw. according to test equipment list
130 mm
140 mm
225 mm
9 kg
1,500.90 CHF
