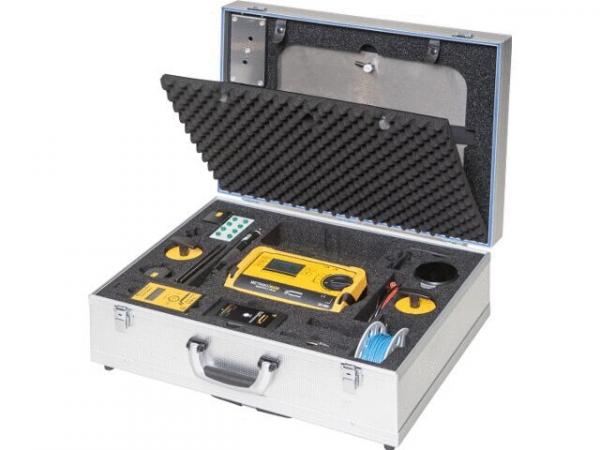

ESD Audit case B530 with walking test set and electrode
dpvlink 19516

Audit set for the measurement and control of protective components in ESD protected areas. The audit cases contain the Metriso B530 measuring device and extensive accessories. They differ in the electrodes they contain: with electrode 850 or with electrode 870.

Application:

  • Testing flooring systems according to IEC 61340-4-1 and to IEC 61340-4-5 (Walking Test)
  • Testing chairs, workstations, shelves, transport cars and automated handling equipment according to IEC 61340-2-3
  • Testing packaging materials according to IEC 61340-2-3
  • Testing electrostatic fields
  • Testing the point-to-point resistance of clothes according to IEC 61340-4-9
  • Evaluating temperature and relative humidity
  • Evaluating ionizers according to IEC 61340-4-7
  • Walking test to verify the personal charge in an EPA in accordance with DIN EN 61340-4-5


All instruments are delivered with factory calibration certificate and user manual.

Article image
Article description
ESD
Version
Recommended calibration interval
Length
Width
Height
Price
Compare
7110.B530.SET.WT.850 - ESD audit case Metriso B530 with electrode type 850
7110.B530.SET.WT.850
ESD audit case Metriso B530 with electrode type 850
with electrode type 850
24 months bzw. according to test equipment list
575 mm
490 mm
250 mm
5,416.75 CHF
7110.B530.SET.WT - ESD audit case Metriso B530 with electrode type 870
7110.B530.SET.WT
ESD audit case Metriso B530 with electrode type 870
with electrode type 870
24 months bzw. according to test equipment list
575 mm
490 mm
250 mm
5,347.45 CHF
