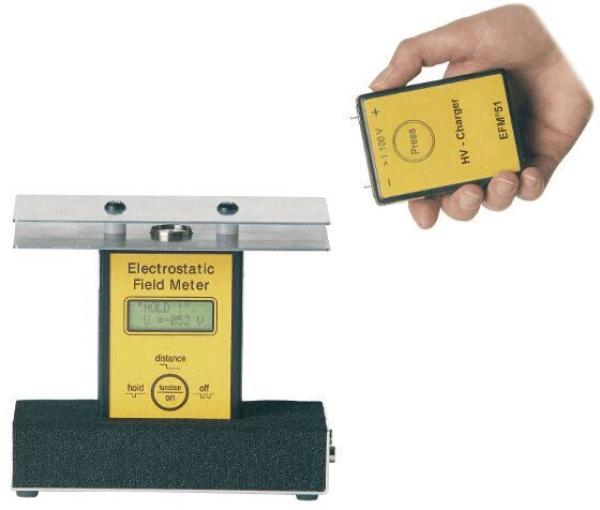

EFM®51-CPS / Charged Plate Set

Handy device for measuring the effectiveness of ionizers and their offset voltages

  • Determines the discharge time from +/- 1000 volts to +/- 100 volts
  • Measurement of the voltage potential on a plate electrode (75 x 150 mm) that can be attached to the EFM®51
  • Suitable for use in machines
  • Measuring range: 0 to ± 160 kV (“distance” mode), 0 to 800 kV/m (“E-field” mode)
  • Measuring mode: Influence principle (field mill principle)
  • Display: 2-line LCD display
  • Operating mode: battery operation

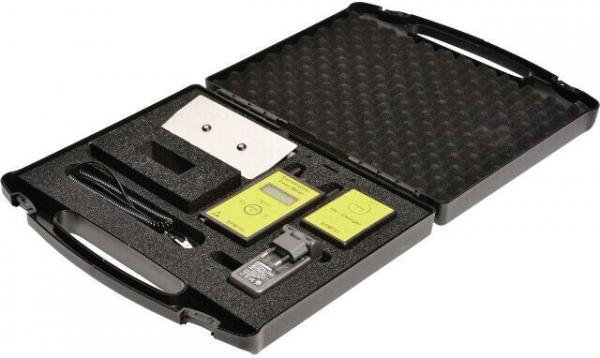

Scope of delivery 1 (art. no. 7100.EFM51.CPS):

  • EFM®51 electric field meter
  • conductive case
  • high-voltage generator ± 1200 Volt
  • conductive base, charge plate, grounding wire
  • plug-in charger for 9 Volt batteries, in addition 9 Volt battery
  • manual (German/English)
  • factory calibration certificate

Scope of delivery 2 (art. no. 7100.EFM51.CPS.SET):

  • conductive case
  • high-voltage generator ± 1200 Volt
  • base
  • charge plate
Article image
Article description
Recommended calibration interval
Height
Length
Width
Weight
Price
Compare
7100.EFM51.CPS - EFM 51 Electrostatic field meter with Charged Plate Set
7100.EFM51.CPS
EFM 51 Electrostatic field meter with Charged Plate Set
12 months bzw. according to test equipment list
125 mm
75 mm
150 mm
130 g
1,370.90 CHF
7100.EFM51.CPS.SET - Retrofit kit EFM 51-CPS / Charged Plate Set (without EFM® 51)
7100.EFM51.CPS.SET
Retrofit kit EFM 51-CPS / Charged Plate Set (without EFM® 51)





517.85 CHF
