PS inserts customer-specific

For use in transport containers to transport and store electronic components in an orderly manner and in layers.

Solid material, polystyrene (PS), high abrasion resistance, electrostatically volume conductive

In compliance with the ESD standard DIN EN 61340-5-1

Standard thickness: 2.0 mm

further thicknesses: 1.5 mm / 1.8 mm

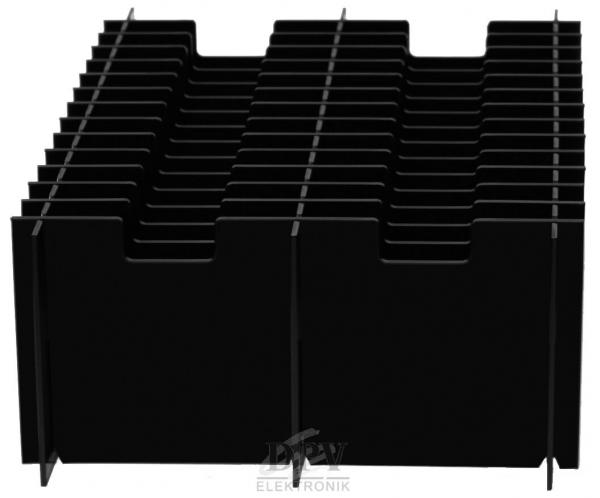

All partitions can be equipped with cut-outs for sight and handles for easier removal of the stored parts.
All partitions can be adapted to any customer-specific application. Even not standardized containers can be easily equipped with parting inserts.
Any raster width and partition height from 15 mm can be implemented depending on customer's request.

Customer specific parting inserts/partitions can be produced individually at any time. Tell us your requirements and we will submit you a non-binding offer.

Article image
Article description
Color
Conductivity
Surface resistance Rs
Volume resistance
Material
Material structure
Price
Compare
050.300.Spez.PS - PS insert customer-specific
050.300.Spez.PS
PS insert customer-specific
black
volume conductive
106 Ω
106 Ω
polystyrene
solid material
-
