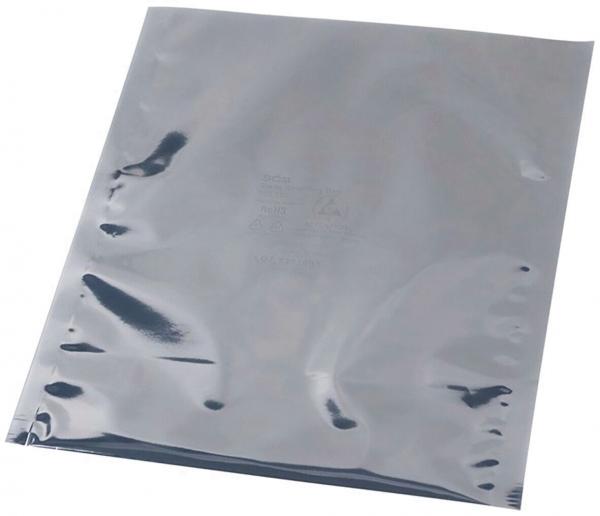

ESD Shielding bag PCL-100

The dissipative metallized shielding bags PCL-100 protect electronic parts and components from electrostatic discharge (ESD) and prevent static charge on the bag, which could damage ESD-sensitive parts and assemblies, and also meet the requirements for surface particles in cleanroom applications.

The shielding bags differ in size within this product family.

They have the following common properties:

  • heat-sealable
  • Outer layer - antistatic coating
    Surface resistance RS = 1011 Ohm
  • Metallization - aluminized
  • Inner layer - dissipative polyethylene
    Surface resistance RS = 104 - 1011 Ohm
  • Electrostatic Shielding <10nJ (Energy Test)

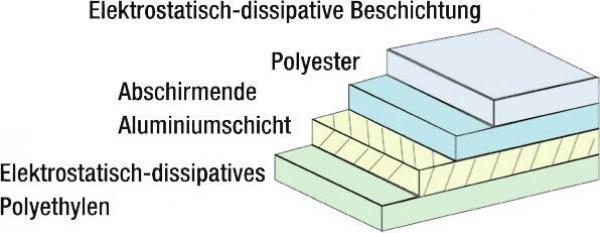

  • multi-layered structure, transparent
  • High shielding against electrostatic charge
  • suitable for use in cleanrooms
  • contains no amines, silicone or heavy metals
  • Side weld seam
  • Standard imprint: ESD warning icon, type designation, RoHS compliance, LOT no.

Standards:
ANSI/ESD S20.20, ANSI/ESD S541, ANSI/ESD S11.4 Level 3, IEST-STD-CC1246E Level 100

Article image
Article description
Cleanroom
ISO according to 14644-1
Length
Thickness
Width
Conductivity
Electrostatic shielding
Static decay time max.
Surface resistance Rs
amine-free
Material
heat-sealable
PU
Price
Compare
3M-PCL100.1012 - Shielding bag SCS, type PCL100
3M-PCL100.1012
Shielding bag SCS, type PCL100 "metal-in" 255 x 305 mm
suitable
3
305 mm
0,071 mm
255 mm
shielding
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
58.25 CHF
3M-PCL100.1115 - Shielding bag SCS, type PCL100
3M-PCL100.1115
Shielding bag SCS, type PCL100 "metal-in" 280 x 380 mm
suitable
3
380 mm
0,071 mm
280 mm
shielding
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
80.65 CHF
3M-PCL100.1218 - Shielding bag SCS, type PCL100
3M-PCL100.1218
Shielding bag SCS, type PCL100 "metal-in" 305 x 455 mm
suitable
3
455 mm
0,071 mm
305 mm
shielding
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
105.10 CHF
3M-PCL100.1818 - Shielding bag SCS, type PCL100
3M-PCL100.1818
Shielding bag SCS, type PCL100 "metal-in" 455 x 455 mm
suitable
3
455 mm
0,071 mm
455 mm
shielding
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
170.75 CHF
3M-PCL100.2024 - Shielding bag SCS, type PCL100
3M-PCL100.2024
Shielding bag SCS, type PCL100 "metal-in" 505 x 610 mm
suitable
3
610 mm
0,071 mm
505 mm
shielding
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
244.60 CHF
3M-PCL100.35 - Shielding bag SCS, type PCL100
3M-PCL100.35
Shielding bag SCS, type PCL100 "metal-in" 75 x 125 mm
suitable
3
125 mm
0,071 mm
75 mm
shielding
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
22.55 CHF
3M-PCL100.46 - Shielding bag SCS, type PCL100
3M-PCL100.46
Shielding bag SCS, type PCL100 "metal-in" 100 x 150 mm
suitable
3
150 mm
0,071 mm
100 mm
shielding
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
25.70 CHF
3M-PCL100.610 - Shielding bag SCS, type PCL100
3M-PCL100.610
Shielding bag SCS, type PCL100 "metal-in" 150 x 255 mm
suitable
3
255 mm
0,071 mm
150 mm
shielding
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
41.10 CHF
3M-PCL100.812 - Shielding bag SCS, type PCL100
3M-PCL100.812
Shielding bag SCS, type PCL100 "metal-in" 200 x 305 mm
suitable
3
305 mm
0,071 mm
200 mm
shielding
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
57.25 CHF
