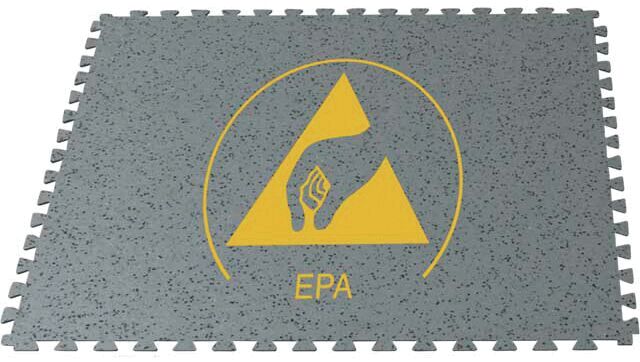

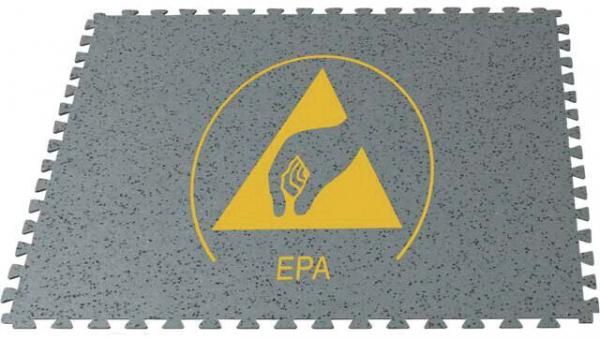

The image shows a gray mat with a yellow symbol. In the center, there is a triangle depicting a hand and a foot. Below it, "EPA" is written in uppercase letters.
ECOSTAT-DF ESD LOGO
(Product No.: 1330.PF.ESD)

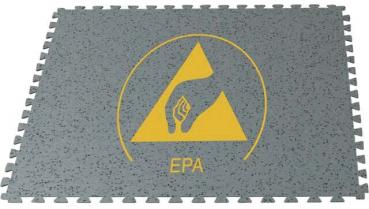

The image shows a gray mat with a yellow symbol. In the center, there is a triangle depicting a hand and a foot. Below it, "EPA" is written in uppercase letters.
Notice / Inquire

ECOSTAT-DF ESD LOGO

dpvlink:
23230
Width :
635 mm
Length :
635 mm
Thickness :
6 mm
Properties:
Further product information

66.15 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ECOSTAT-DF ESD LOGO

The ECOSTAT-DF ESD LOGO is a two-layer composite flooring in tile form, characterized by its volume conductivity and abrasion resistance. This flooring is specifically designed for use in areas where electrostatic discharges must be avoided, and meets the ESD standard DIN EN 61340-5-1. Each tile measures 635 mm x 635 mm and has a thickness of 6 mm, which corresponds to approximately 0.4032 m2 per tile.
The tiles are self-laying and can be easily installed without adhesive thanks to their dovetail connection. The surface is flame retardant (fire class Bfl – s1) and offers high resistance to mechanical stresses such as chair casters or forklifts. The conductive backing ensures reliable dissipation of electrostatic charges with a dissipation resistance between 10^4 and 10^5 Ω. The tiles are walkable during installation, which minimizes downtime. The grey color and the simple processing with woodworking tools complete the profile of this high-quality flooring.
Width
Width
635 mm
Length
Length
635 mm
Thickness
Thickness
6 mm
Fire behavior
Fire behavior
hardly inflammable
Fire class
Fire class
Bfl – s1
Bleeder resistance
Bleeder resistance
104 - 105 Ω
Shore hardness
Shore hardness
90 Shore A
ESD
ESD
yes
PU
PU
1 piece
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a roll of tape in a copper-colored shine. The roll has an inner diameter made of cardboard and is smooth. On the inside, various geometric patterns are depicted.
Copper tape, self-adhesive
Copper tape, 19 mm x 50 m,
self-adhesive (++adhesive conductive++)
dpvlink
3213

57.85 CHF
Show product
The image displays a yellow, square device with a long, spiral cable. A small plug is visible, which is used to operate the device. A section shows the plug socket.
Grounding plug eyelet M4, 2.4 m
Grounding plug (spiral cable 2.4 m)
eye M4/5 - Schuko dummy plug
dpvlink
3654

16.85 CHF
Show product
The image displays a yellow electrical device with a spiral cable. It is square and has a connection for a Swiss socket. A small circle illustrates the plug concept.
Grounding plug eyelet M4, 2.4 m (version...
Grounding plug (spiral cable 2.4 m)
eye M4/5 - dummy plug CH
dpvlink
3654

20.75 CHF
Show product
The image shows a yellow device on a wall. It features a warning symbol and is connected to a green cable. Below it, a copper strip runs along the ground.
Grounding connection set for floor coverings...
Grounding connection set for floor coverings
with test point / 4 mm socket, cable length
approx. 3m (wall mounting)
dpvlink
8024

26.15 CHF
Show product
The image shows a roll of tape. The roll has a round core and is gray on the outside, with a smooth, visible surface.
Aluminium tape, self-adhesive
Aluminium tape, 50 mm x 50 m,
self-adhesive
dpvlink
3213

28.60 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

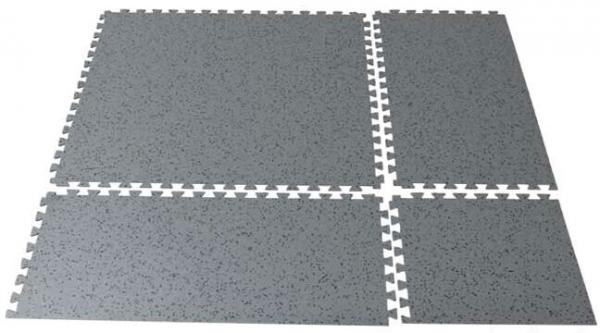

ECOSTAT-DF INTERLOCKING SYSTEM 6.0

Format: Two-layer composite covering in interlocking form with dovetail joint.

ESD protection: Volume conductive, conductive backing.

Load-bearing capacity: Abrasion-resistant, suitable for chair castors and forklift traffic.

Installation: Self-laying, no gluing required.

Flexibility: Easy to work with wood tools.

Efficiency: Can be walked on during installation - minimal downtime.

Color: grey.

Material thickness: 6 mm.

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
ESD
Width
Length
Thickness
Price
Compare

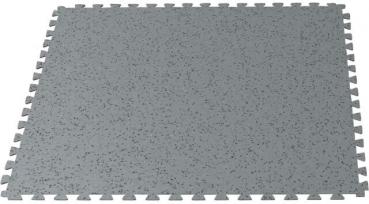

1330.PF.06 - ECOSTAT-DF INTERLOCKING SYSTEM 6.0
1330.PF.06
ECOSTAT-DF INTERLOCKING SYSTEM 6.0
635 mm
635 mm
6 mm
129.85 CHF
1330.PF.ESD - ECOSTAT-DF ESD LOGO
1330.PF.ESD
ECOSTAT-DF ESD LOGO
635 mm
635 mm
6 mm
66.15 CHF

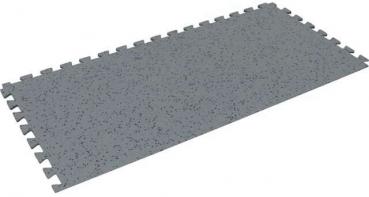

1330.PF.06.RA - ECOSTAT-DF Ramp element
1330.PF.06.RA
ECOSTAT-DF Ramp element
635 mm
310 mm
6 mm
-

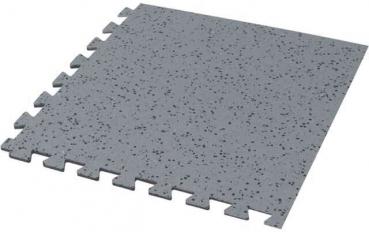

1330.PF.06.RE - ECOSTAT-DF Corner ramp element
1330.PF.06.RE
ECOSTAT-DF Corner ramp element
310 mm
310 mm
6 mm
-
