WX 2 Soldering station sets

The two soldering station sets with the WX 2 2-channel supply unit are professional complete solutions for demanding soldering tasks in electronics production, aerospace technology and medical technology. Both sets enable the simultaneous operation of two soldering tools and thus increase efficiency in production. They each contain two soldering tools, matching soldering tips with active heating element technology and 2 safety rests.

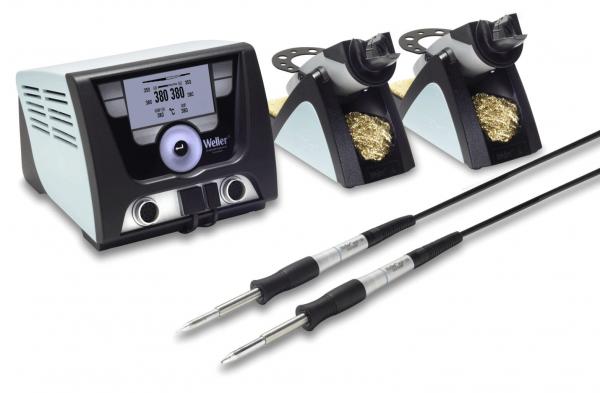

Set WX 2020: 2x soldering iron WXP 120, 2x soldering tip XT B, 2x safety rest WSR 201
Set WX 2021: micro soldering iron WXMP, micro desoldering tweezers WXMT, soldering tips RTM 013 S and RTW 2, safety rests WSR 200 and WSR 204

Features:

• The station works as a control unit for tips, soldering irons, solder fume extraction and other tools
• For different soldering applications or different component sizes (XS to XXL, depending on the version)
• Two soldering channels for parallel operation of two soldering tools
• Thanks to an integrated sensor, WX tools only switch on when there is movement. Energy is consumed when the tools are actually in use.
• Connected additional devices are shut down in standby mode.
• Safety functions such as temperature and tool interlock, tool-specific temperature settings as well as standby and switch-off functions for safe soldering processes
• Integrated USB ports for connecting solder fume extraction systems, PLC controls or preheating plates
• Intelligent soldering iron with motion sensor and integrated data storage
• Tool-free tip change
• Traceability (traceability ready)
• 2-in-1 safety rest for wet and dry tip cleaning
• The WX soldering irons heat up in a very short time and are immediately ready for use.
• Potential equalization via 3.5 mm jack socket on the back of the device
• Multilingual menu navigation and high functionality
• No Stop&Go rest necessary thanks to integrated usage sensor
• Higher accuracy, better temperature stability thanks to digital sensor evaluation in the iron
• Iron-specific parameterization by means of parameter memory in the iron
• Blue LED ring light (off = off, flashing = standby, on = in use)
